Bezzera

Bezzera BZ07 PID Brühgruppe Dampf Wasser Ventile von 01.12.2008

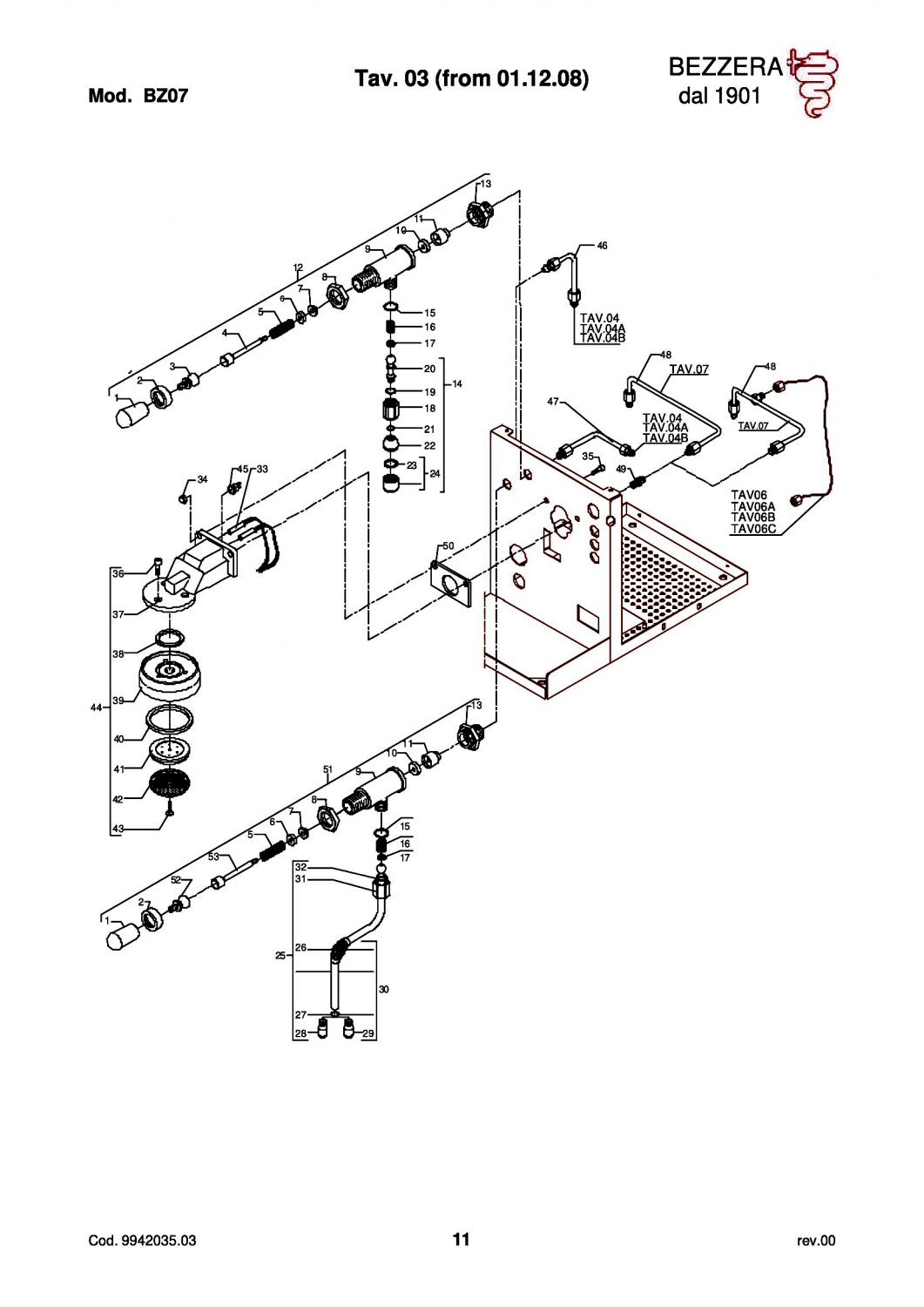

Drawing number 8279046

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
1knob m8x18003294
KNOB M8x1
6,56 €

excl. Shipping costs
immediately available, 4 available
2bezzera ueberwurfmutter 3 8 quot g h178079315
Bezzera Überwurfmutter 3/8"G H17
13,72 €

excl. Shipping costs
immediately available, 5 available
3bezzera kippventilachse m8 stift fuer wasser dampfhahn bezzera inox8071554
Bezzera Kippventilachse M8 Stift für Wasser/Dampfhahn Bezzera INOX
13,90 €

excl. Shipping costs
Delivery time 4-6 weeks
5feder d8 h17 aisi3028072133
Feder D8 H17 AISI302
3,32 €

excl. Shipping costs
immediately available, 6 available
68071427
ROSETTA D11 H1.5OT
Price on request
7conical ptfe seal o 12x5x5 5 mm8001409
CONICAL PTFE SEAL ø 12x5x5,5 mm
2,30 €

excl. Shipping costs
immediately available, 16 available
8mutter 3 8 22x5 verchromt8071423
Mutter 3/8 .22X5 verchromt
8,87 €

excl. Shipping costs
immediately available, 6 available
10epdm flat gasket 11 x 4 x 4 mm8001656
EPDM FLAT GASKET 11 x 4 x 4 mm
0,55 €

excl. Shipping costs
immediately available
138071540
replaced by 8071541
Price on request
148072531
TUBO ACQUA BZ07
Price on request
15o ring 0121 epdm8014882
O-RING 0121 EPDM
1,07 €

excl. Shipping costs
immediately available
16spring o 11 7x16 mm8069864
SPRING ø 11,7x16 mm
2,11 €

excl. Shipping costs
immediately available, 8 available
17dichtungsscheibe fuer dampfventil heisswasserventilmutter ecm mechanika iii technika iii bezzera8071400
Dichtungsscheibe für Dampfventil- Heisswasserventilmutter ECM Mechanika III Technika III Bezzera
3,33 €

excl. Shipping costs
immediately available
188071450
DADO 3/8 G SNODO EXTRALUC/CROM
Price on request
19o ring 0115 epdm8001977
O-RING 0115 EPDM
0,93 €

excl. Shipping costs
immediately available
208071551
TUBO ACQUA D14 H44 OT CROM
Price on request
21o ring 0108 viton8066106
O-RING 0108 VITON
1,05 €

excl. Shipping costs
immediately available
228071568
TERMINALE ACQUA D23.5X18 OT CROM
Price on request
23flat epdm gasket o 20 5x15x2 mm8002115
FLAT EPDM GASKET ø 20,5x15x2 mm
3,32 €

excl. Shipping costs
immediately available, 12 available
248071566
TERMINALE TUBO ACQUA M22 CROMATO
Price on request
25pipe steam complete satinless steel8069460
PIPE STEAM COMPLETE SATINLESS STEEL
40,61 €

excl. Shipping costs
Delivery time
is determined
26burn preventing rubberpiece o 10 mm8001467
Burn preventing rubberpiece ø 10 mm
2,63 €

excl. Shipping costs
immediately available, 6 available
27dichtung bezzera fuer dampfduese d4 5x1 5 nbr708072908
Dichtung Bezzera für Dampfdüse D4,5X1,5 NBR70
1,20 €

excl. Shipping costs
immediately available, 12 available
28steam tip bezzera 4 holes inox8072726
Steam tip Bezzera 4 holes inox
15,26 €

excl. Shipping costs
immediately available, 6 available
29dampfduese 2 loch bezzera ecm iii er8071565
Dampfdüse 2 Loch Bezzera ECM III er
9,50 €

excl. Shipping costs
immediately available, 5 available
318071450
DADO 3/8 G SNODO EXTRALUC/CROM
Price on request
32o ring 0115 epdm8001977
O-RING 0115 EPDM
0,93 €

excl. Shipping costs
immediately available
338072314
ASSY RESIST.CARTUCCE DOPP.110V
Price on request
33bezzera heizungspatrone 220 240v8072315
Bezzera Heizungspatrone 220/240V
75,14 €

excl. Shipping costs
immediately available, 1 available
348071438
DADO CIECO M8 CROMATO
Price on request
35schraube zylinderkopf innensechskant vollgewinde edelstahl m8x20 a2 70 din 9128061169
Schraube Zylinderkopf Innensechskant Vollgewinde Edelstahl M8x20 A2-70 Din 912
2,67 €

excl. Shipping costs
immediately available
36inox schraube t c c e i m5x14 uni 59318069639
Inox Schraube T.c.c.e.i. M5x14 Uni 5931
2,71 €

excl. Shipping costs
immediately available, 15 available
38or gasket 04131 viton8015007
OR GASKET 04131 VITON
2,75 €

excl. Shipping costs
immediately available, 16 available

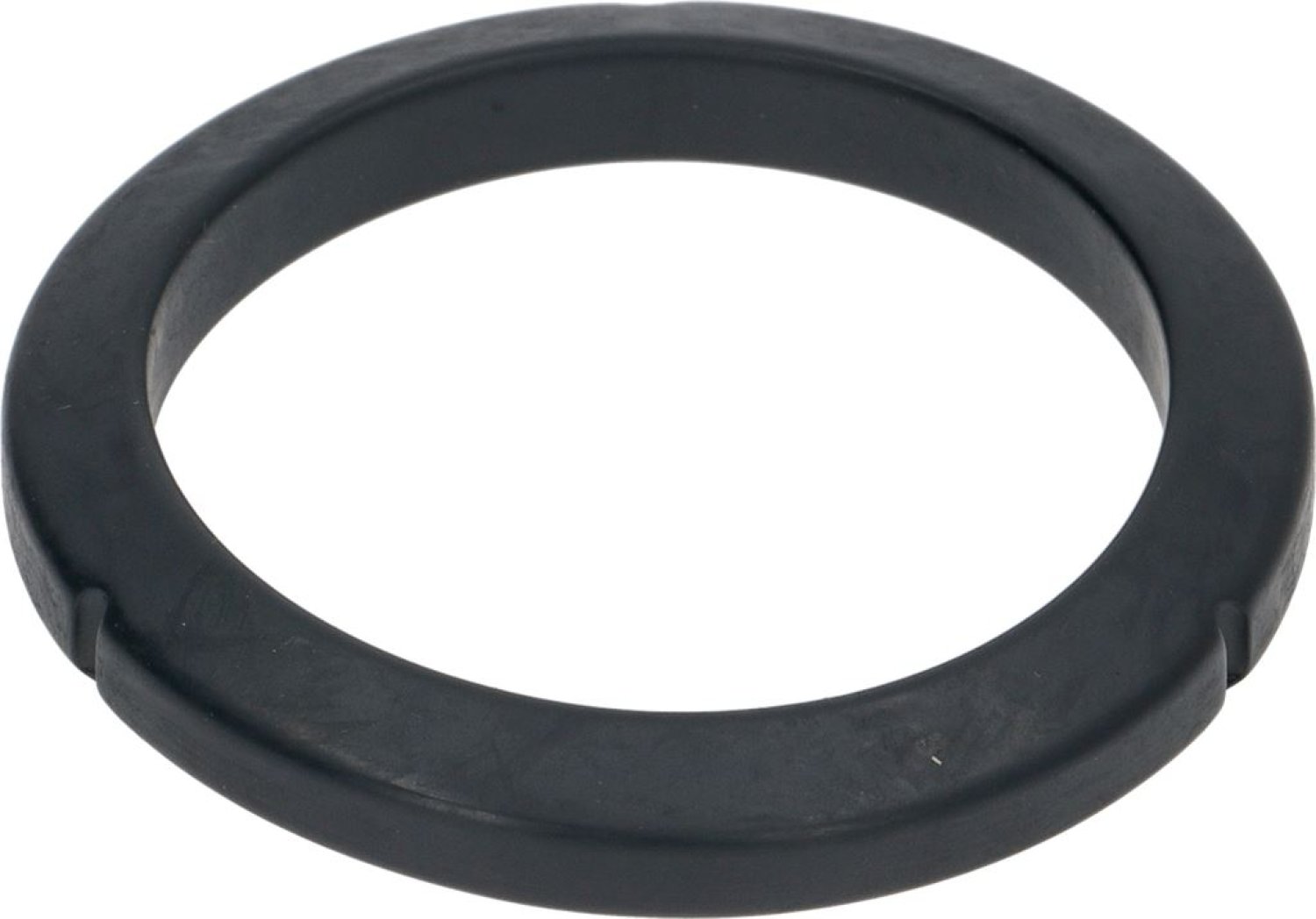

40bezzera siebtraegerdichtung konisch 72 x 56 x 9 3 6 3 mm 75sh8072882
Bezzera Siebträgerdichtung konisch 72 x 56 x 9,3/6,3 mm 75SH
This article is no longer available
42shower o 57 5 mm8000577
SHOWER ø 57,5 mm
4,00 €

excl. Shipping costs
immediately available, 15 available
43countersunk flat head screws m5x168007262
COUNTERSUNK FLAT HEAD SCREWS M5x16
0,50 €

excl. Shipping costs
immediately available
448072339
ASSY GRUPPO BZ07 NEW GUARNIZ.
Price on request
45contact thermostat 958064032
CONTACT THERMOSTAT 95
17,05 €

excl. Shipping costs
immediately available, 7 available
46pipe to steam tap bezzera8071058
pipe to steam tap Bezzera
27,55 €

excl. Shipping costs
immediately available, 7 available
478071059
TUBO RUBINETTO ACQUA BZ07
26,18 €

excl. Shipping costs
immediately available, 5 available
48copper pipe solenoid valve to group bezzera bz078071063
copper pipe solenoid valve to group Bezzera BZ07
25,43 €

excl. Shipping costs
immediately available, 4 available
48copper pipe solenoid valve to group bezzera with connection for manometer capillary8071066
copper pipe solenoid valve to group Bezzera with connection for manometer capillary
23,26 €

excl. Shipping costs
immediately available, 2 available
50dichtung gruppe bezzera bz078072879
Dichtung Gruppe Bezzera BZ07
6,41 €

excl. Shipping costs
immediately available, 5 available
51bezzera dampfventil heisswasserventil bz07 bz10 hahn8072368
Bezzera Dampfventil Heisswasserventil BZ07 BZ10 Hahn
68,00 €

excl. Shipping costs
immediately available, 7 available
52bezzera kippventilachse m8 stift fuer wasser dampfhahn bezzera inox8071554
Bezzera Kippventilachse M8 Stift für Wasser/Dampfhahn Bezzera INOX
13,90 €

excl. Shipping costs
Delivery time 4-6 weeks
53stift fuer dampf wasserhahn d12x47 5 m48071591
Stift für Dampf- Wasserhahn D12x47,5 M4
22,46 €

excl. Shipping costs
immediately available, 7 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
