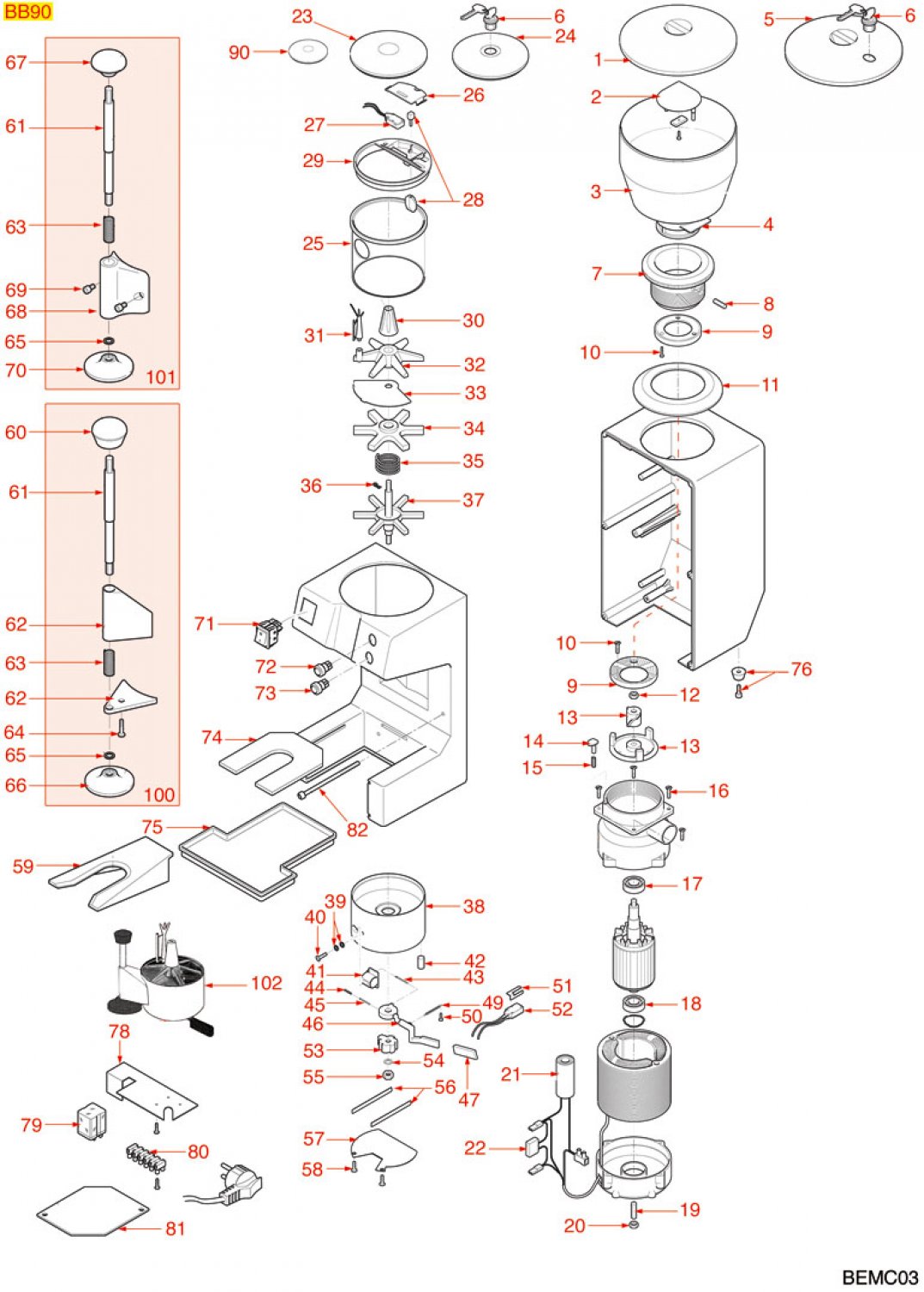

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.
Pos.: | Item No.: | Image: | Description: | Shipment: | Price (inkl. 19% VAT): | Qty.: |
---|
1 | 8004328 |  | 8004328 COFFEE HOPPER LID | excl. Shipping costs immediately available, 1 available |
9,42 € | |
2 | 8004321 |  | 8004321 COFFEE HOPPER INNER PROTECTION | excl. Shipping costs immediately available, 8 available |
5,90 € | |
2 | 8004395 |  | 8004395 COFFEE HOPPER INNER PROTECTION | excl. Shipping costs immediately available, 1 available |
8,65 € | |
3 | 8000424 |  | 8000424 OBEL COFFEE HOPPER | excl. Shipping costs immediately available, 1 available |
26,43 € | |
6 | 8006240 |  | 8006240 COVER LOCK | excl. Shipping costs Delivery time 4-6 weeks |
21,04 € | |
7 | 8004313 |  | 8004313 GRINDING BURRS TOP HOLDER W/RING NUT | excl. Shipping costs Delivery time 4-6 weeks |
43,93 € | |
9 | 8003936 |  | 8003936 GRINDING BURRS OBEL-CARIMALI (PAIR) LEFT | excl. Shipping costs immediately available, 2 available |
28,82 € | |
10 | 8007244 |  | 8007244 COUNTERSUNK FLAT HEAD SCREWS M4x10 | excl. Shipping costs immediately available |
1,05 € | |
11 | 8001877 |  | 8001877 SCREW COVER RING NUT | excl. Shipping costs Delivery time is determined |
8,01 € | |
13 | 8003984 |  | 8003984 GRINDING BURRS BOTTOM HOLDER | excl. Shipping costs immediately available, 1 available |
24,38 € | |
14 | 8004309 |  | 8004309 LOCKING PIN | excl. Shipping costs immediately available, 6 available |
3,81 € | |
15 | 8003766 |  | 8003766 LOCKING PIN SPRING | excl. Shipping costs immediately available, 3 available |
1,09 € | |
16 | 8007262 |  | 8007262 COUNTERSUNK FLAT HEAD SCREWS M5x16 | excl. Shipping costs immediately available |
0,50 € | |
21 | 8011681 |  | 8011681 CAPACITOR µF 12,5 450v 50/60hz | excl. Shipping costs immediately available, 9 available |
10,59 € | |
23 | 8004311 |  | 8004311 DOSER LID BEZZERA CARIMALI OBEL | excl. Shipping costs Delivery time is determined |
10,36 € | |
24 | 8004312 |  | 8004312 DOSER LID WITH KEY | excl. Shipping costs Delivery time 4-6 weeks |
28,58 € | |
25 | 8000665 |  | 8000665 DOSER CYLINDER ø 120x117 mm | excl. Shipping costs Delivery time is determined |
18,15 € | |
27 | 8003085 |  | 8003085 MICROSWITCH 6A 250V | excl. Shipping costs Delivery time 4-6 weeks |
14,85 € | |
29 | 8004315 |  | 8004315 MICROSWITCH HOLDER | |
| |
30 | 8004308 |  | 8004308 DOSE ADJUSTMENT KNOB | excl. Shipping costs Delivery time is determined |
14,24 € | |
31 | 8003767 |  | 8003767 DOSER SCRAPER | excl. Shipping costs immediately available, 5 available |
4,34 € | |
32 | 8005419 |  | 8005419 TOP STAR | excl. Shipping costs immediately available, 1 available |
6,93 € | |
33 | 8004310 |  | 8004310 DOSER SHEET | excl. Shipping costs Delivery time is determined |
10,14 € | |
34 | 8005420 |  | 8005420 MIDDLE STAR | excl. Shipping costs Delivery time is determined |
8,09 € | |
35 | 8003761 |  | 8003761 STAR SPRING | excl. Shipping costs Delivery time 4-6 weeks |
2,33 € | |
37 | 8005421 |  | 8005421 BOTTOM STAR | excl. Shipping costs immediately available, 1 available |
19,21 € | |
40 | 8007330 |  | 8007330 HEXAGON HEAD SCREW M5x10 | excl. Shipping costs immediately available |
1,15 € | |
41 | 8004306 |  | 8004306 COUNTER FOR COFFEE GRINDER | excl. Shipping costs Delivery time is determined |
23,62 € | |
43 | 8003762 |  | 8003762 STROKE COUNTER SPRING | excl. Shipping costs Delivery time is determined |
| |
44 | 8004451 |  | 8004451 PIN FOR DOSER LEVER SPRING | excl. Shipping costs immediately available, 2 available |
1,79 € | |
45 | 8003768 |  | 8003768 PEG SPRING ø 4mm - L 33mm | excl. Shipping costs immediately available, 7 available |
1,21 € | |
46 | 8004317 |  | 8004317 DOSER LEVER | excl. Shipping costs Delivery time 4-6 weeks |
15,86 € | |
47 | 8004318 |  | 8004318 LEVER COVER | excl. Shipping costs Delivery time is determined |
3,92 € | |
49 | 8003764 |  | 8003764 DOSER LEVER RETURN SPRING | excl. Shipping costs immediately available, 7 available |
2,50 € | |
50 | 8007330 |  | 8007330 HEXAGON HEAD SCREW M5x10 | excl. Shipping costs immediately available |
1,15 € | |
52 | 8003085 |  | 8003085 MICROSWITCH 6A 250V | excl. Shipping costs Delivery time 4-6 weeks |
14,85 € | |
53 | 8004452 |  | 8004452 6-TEETH PAWL | excl. Shipping costs Delivery time is determined |
7,02 € | |
56 | 8003683 |  | 8003683 SHEET SPRING 89 mm | excl. Shipping costs immediately available, 5 available |
2,73 € | |
58 | 8007330 |  | 8007330 HEXAGON HEAD SCREW M5x10 | excl. Shipping costs immediately available |
1,15 € | |
59 | 8004314 |  | 8004314 FILTER HOLDER FORK | excl. Shipping costs Delivery time is determined |
15,09 € | |
61 | 8005190 |  | 8005190 COFFEE TAMPER PIN | excl. Shipping costs Delivery time 4-6 weeks |
14,32 € | |
63 | 8003765 |  | 8003765 ROD SPRING | excl. Shipping costs immediately available, 6 available |
4,46 € | |
69 | 8007330 |  | 8007330 HEXAGON HEAD SCREW M5x10 | excl. Shipping costs immediately available |
1,15 € | |
71 | 8020928 |  | 8020928 ORANGE BIPOLAR SWITCH 16A 250V | excl. Shipping costs immediately available, 2 available |
7,83 € | |
72 | 8004640 |  | 8004640 BLACK SINGLE POLE PUSH-BUTTON 0.7A 250V | excl. Shipping costs Delivery time 4-6 weeks |
12,67 € | |
73 | 8033607 |  | 8033607 RED SINGLE-POLE PUSH-BUTTON 0.7A 250V | excl. Shipping costs Delivery time is determined |
10,86 € | |
74 | 8004095 |  | 8004095 FILTER HOLDER FORK | excl. Shipping costs Delivery time is determined |
14,61 € | |
75 | 8004305 |  | 8004305 COFFEE COLLECTION TRAY | excl. Shipping costs Delivery time is determined |
12,00 € | |
76 | 8004605 |  | 8004605 RUBBER FOOT | excl. Shipping costs Delivery time is determined |
1,95 € | |
77 | 8007244 |  | 8007244 COUNTERSUNK FLAT HEAD SCREWS M4x10 | excl. Shipping costs immediately available |
1,05 € | |
79 | 8005916 |  | 8005916 RELAY 10A 230V | excl. Shipping costs Delivery time 4-6 weeks |
45,12 € | |
100 | 8006204 |  | 8006204 COFFEE TAMPER COMPLETE | excl. Shipping costs Delivery time 4-6 weeks |
27,95 € | |
101 | 8006205 |  | 8006205 COFFEE TAMPER COMPLETE | excl. Shipping costs Delivery time is determined |
41,80 € | |
102 | 8000696 |  | 8000696 COMPLETE DISPENSER | excl. Shipping costs Delivery time 4-6 weeks |
176,63 € | |
If your article is not listed, please use the following form and enter the desired numbers.
