Bezzera Grinder

DOSIERMAHLWERK BB003

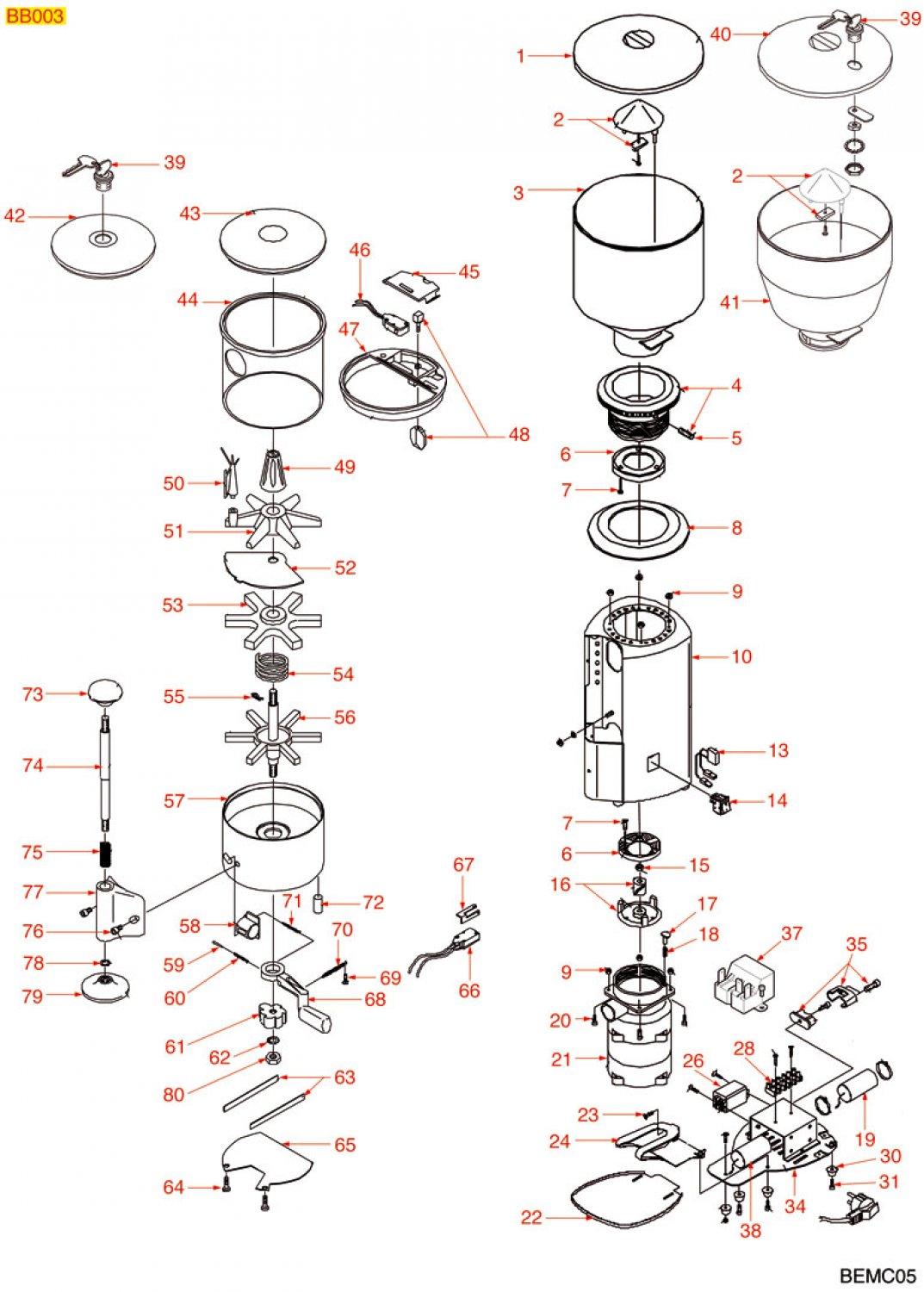

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Pos.:	Item No.:	Image:	Description:	Shipment:	Price (inkl. 19% VAT):	Qty.:
1	8004328		8004328 COFFEE HOPPER LID	excl. Shipping costs immediately available, 1 available	9,42 €	9,42 € excl. Shipping costs immediately available, 1 available
2	8004395		8004395 COFFEE HOPPER INNER PROTECTION	excl. Shipping costs immediately available, 1 available	8,65 €	8,65 € excl. Shipping costs immediately available, 1 available
3	8000424		8000424 OBEL COFFEE HOPPER	excl. Shipping costs immediately available, 1 available	26,43 €	26,43 € excl. Shipping costs immediately available, 1 available
4	8004313		8004313 GRINDING BURRS TOP HOLDER W/RING NUT	excl. Shipping costs Delivery time 4-6 weeks	43,93 €	43,93 € excl. Shipping costs Delivery time 4-6 weeks
6	8003936		8003936 GRINDING BURRS OBEL-CARIMALI (PAIR) LEFT	excl. Shipping costs immediately available, 2 available	28,82 €	28,82 € excl. Shipping costs immediately available, 2 available
7	8007244		8007244 COUNTERSUNK FLAT HEAD SCREWS M4x10	excl. Shipping costs immediately available	1,05 €	1,05 € excl. Shipping costs immediately available
8	8001877		8001877 SCREW COVER RING NUT	excl. Shipping costs Delivery time 4-6 weeks	8,01 €	8,01 € excl. Shipping costs Delivery time 4-6 weeks
14	8020928		8020928 ORANGE BIPOLAR SWITCH 16A 250V	excl. Shipping costs immediately available, 1 available	7,83 €	7,83 € excl. Shipping costs immediately available, 1 available
15	8011323		8011323 HEXAGONAL NUT M8 MEDIUM	excl. Shipping costs immediately available	1,04 €	1,04 € excl. Shipping costs immediately available
16	8003984		8003984 GRINDING BURRS BOTTOM HOLDER	excl. Shipping costs immediately available, 1 available	24,38 €	24,38 € excl. Shipping costs immediately available, 1 available
17	8004309		8004309 LOCKING PIN	excl. Shipping costs immediately available, 6 available	3,81 €	3,81 € excl. Shipping costs immediately available, 6 available

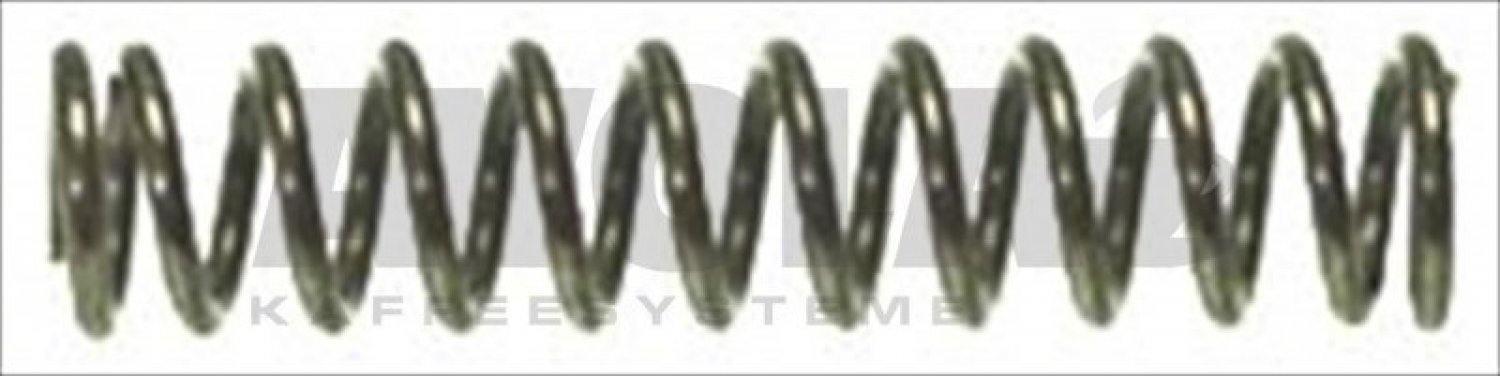

18	8003766		8003766 LOCKING PIN SPRING	excl. Shipping costs immediately available, 3 available	1,09 €	1,09 € excl. Shipping costs immediately available, 3 available
19	8011678		8011678 CAPACITOR µF 6,3 450v 50/60hz	excl. Shipping costs immediately available, 6 available	11,78 €	11,78 € excl. Shipping costs immediately available, 6 available
26	8005916		8005916 RELAY 10A 230V	excl. Shipping costs Delivery time 4-6 weeks	45,12 €	45,12 € excl. Shipping costs Delivery time 4-6 weeks
30	8004605		8004605 RUBBER FOOT	excl. Shipping costs Delivery time is determined	1,95 €	1,95 € excl. Shipping costs Delivery time is determined
31	8007244		8007244 COUNTERSUNK FLAT HEAD SCREWS M4x10	excl. Shipping costs immediately available	1,05 €	1,05 € excl. Shipping costs immediately available

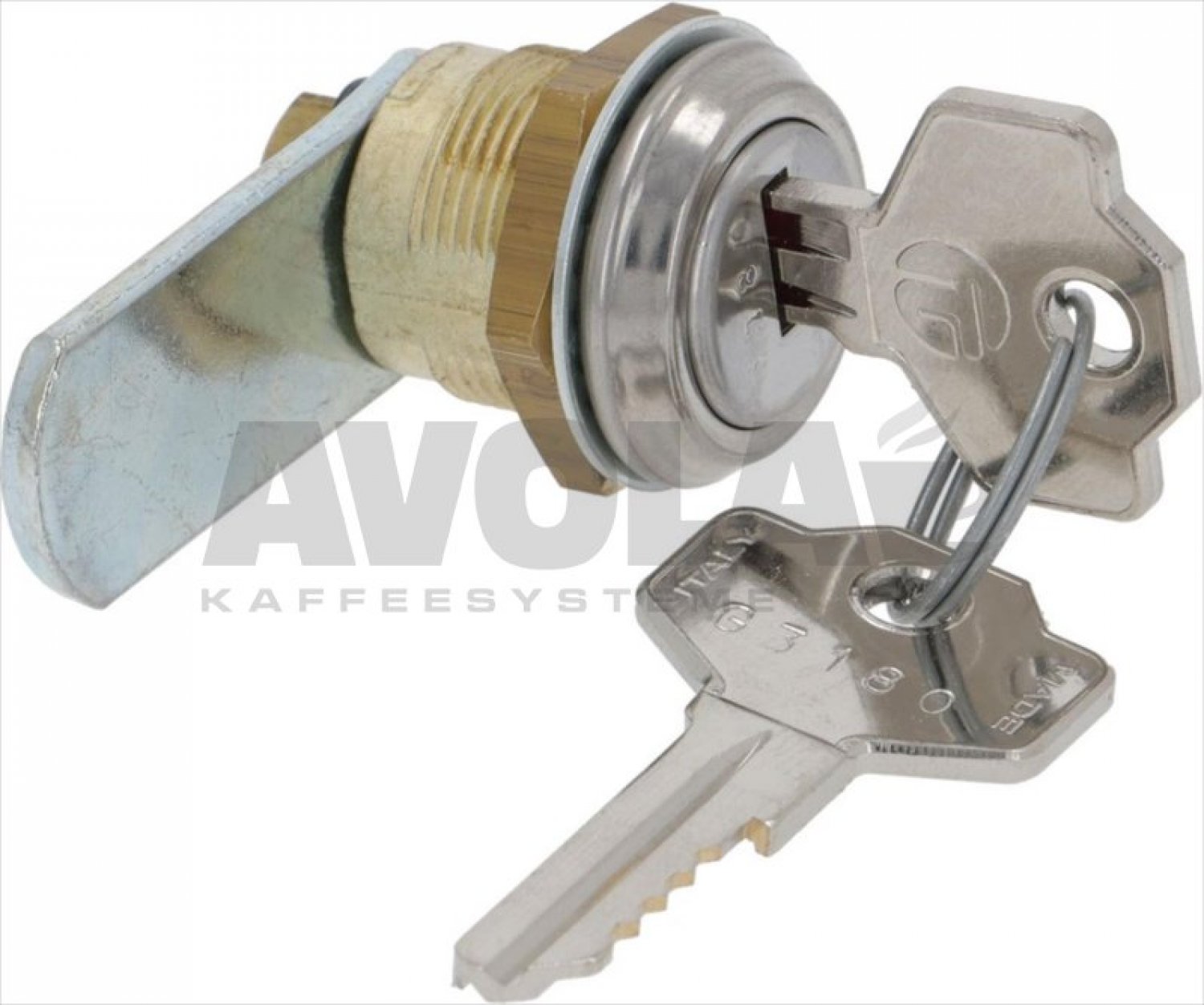

39	8006240		8006240 COVER LOCK	excl. Shipping costs Delivery time 4-6 weeks	21,04 €	21,04 € excl. Shipping costs Delivery time 4-6 weeks
43	8004311		8004311 DOSER LID BEZZERA CARIMALI OBEL	excl. Shipping costs Delivery time is determined	10,36 €	10,36 € excl. Shipping costs Delivery time is determined
44	8000665		8000665 DOSER CYLINDER ø 120x117 mm	excl. Shipping costs Delivery time is determined	18,15 €	18,15 € excl. Shipping costs Delivery time is determined
46	8003085		8003085 MICROSWITCH 6A 250V	excl. Shipping costs Delivery time 4-6 weeks	14,85 €	14,85 € excl. Shipping costs Delivery time 4-6 weeks

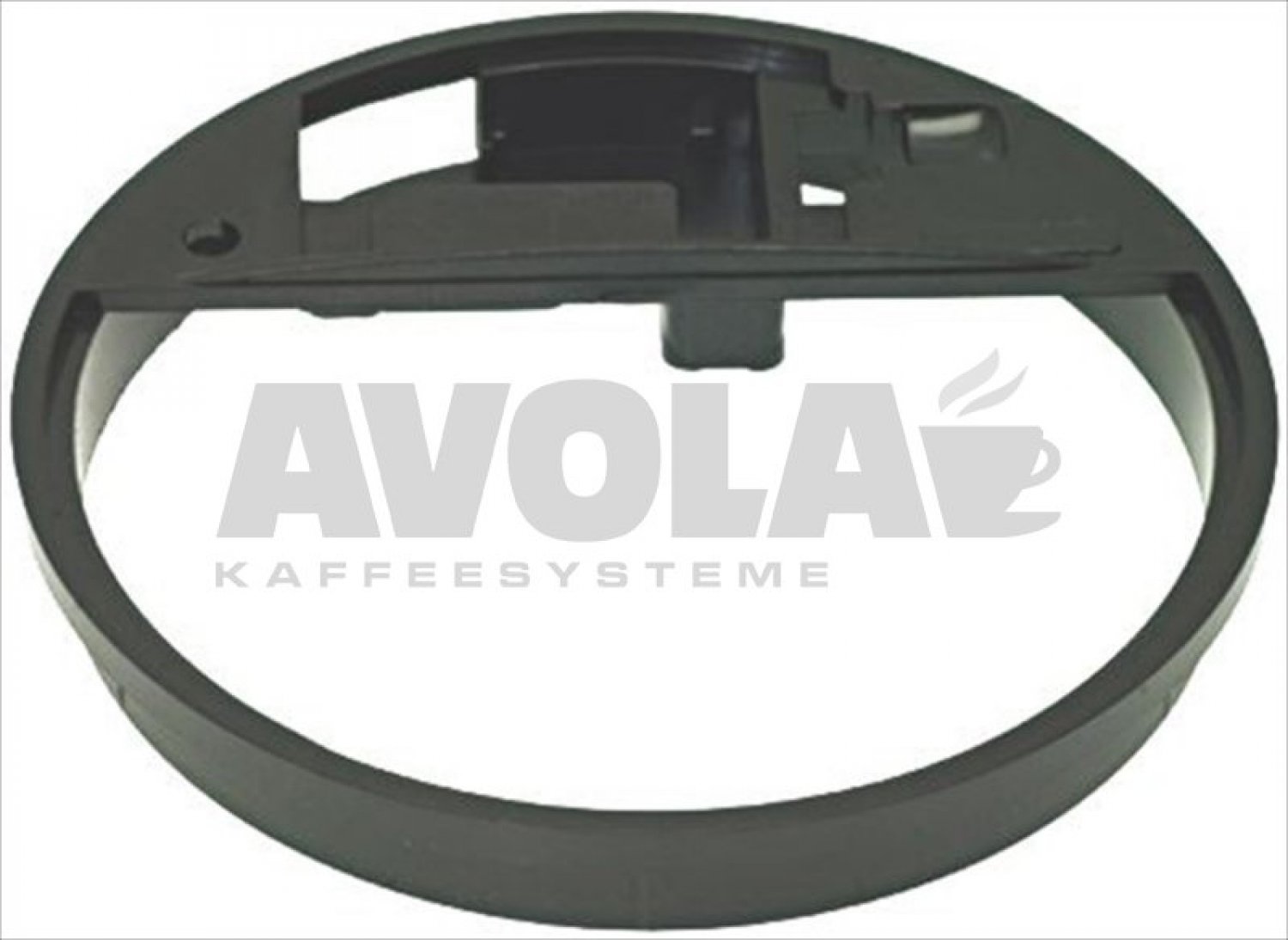

47	8004315		8004315 MICROSWITCH HOLDER			This article is no longer available
49	8004308		8004308 DOSE ADJUSTMENT KNOB	excl. Shipping costs Delivery time is determined	14,24 €	14,24 € excl. Shipping costs Delivery time is determined

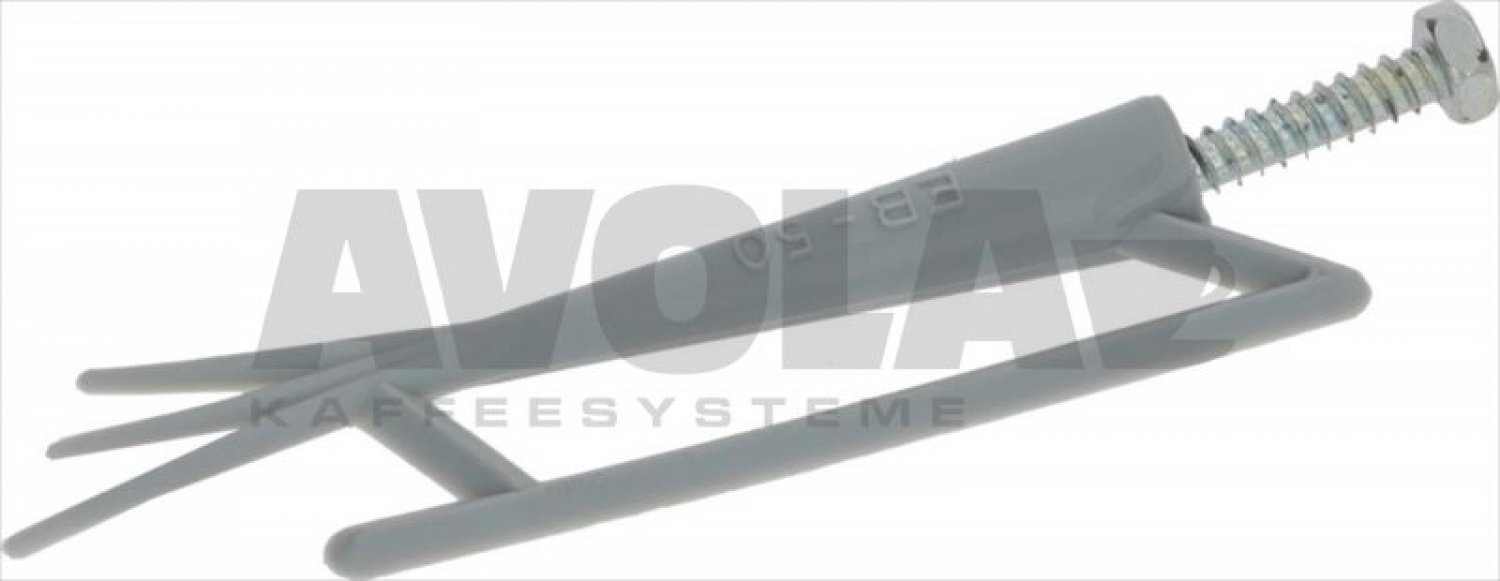

50	8003767		8003767 DOSER SCRAPER	excl. Shipping costs immediately available, 5 available	4,34 €	4,34 € excl. Shipping costs immediately available, 5 available

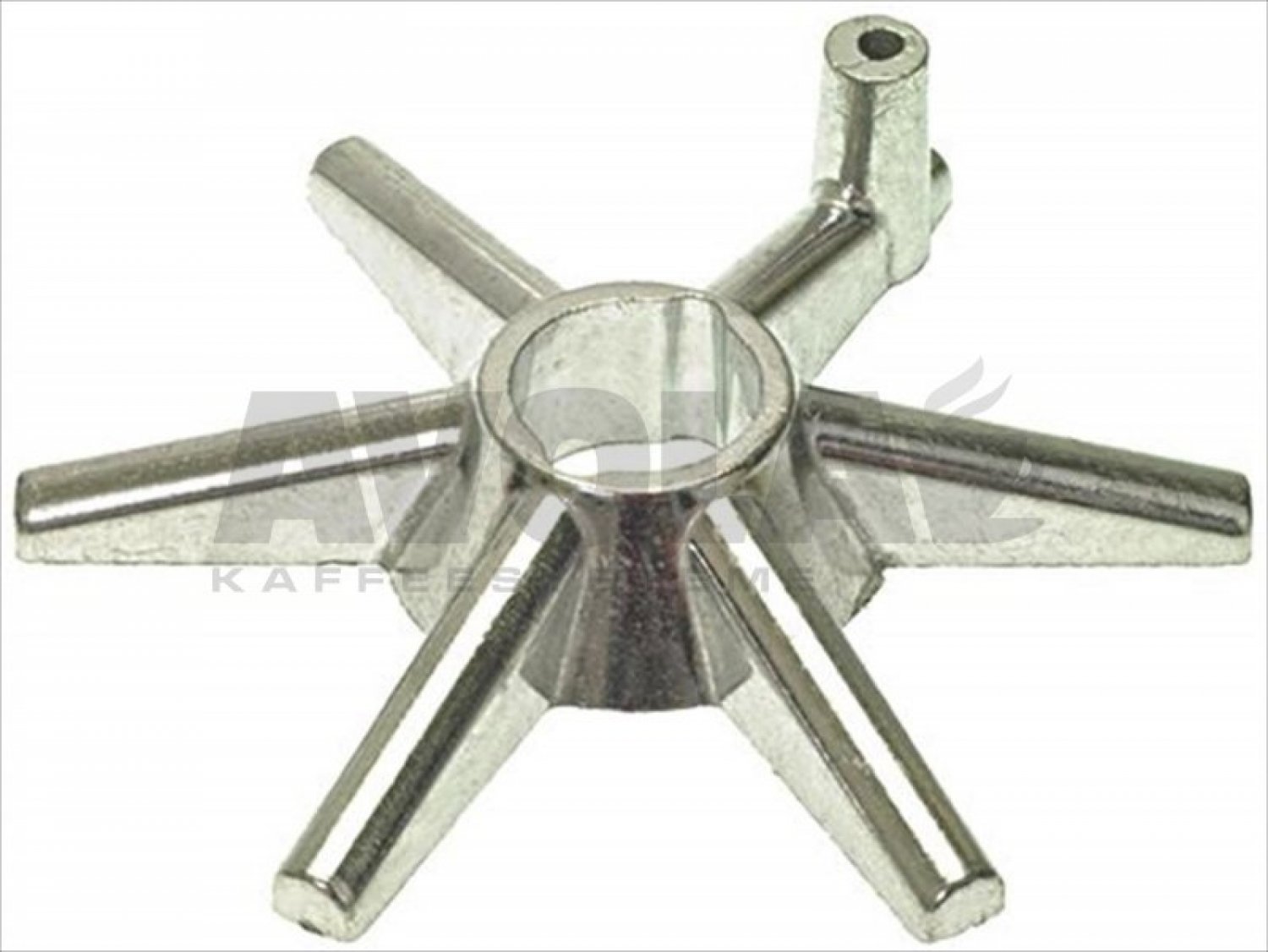

51	8005419		8005419 TOP STAR	excl. Shipping costs immediately available, 1 available	6,93 €	6,93 € excl. Shipping costs immediately available, 1 available

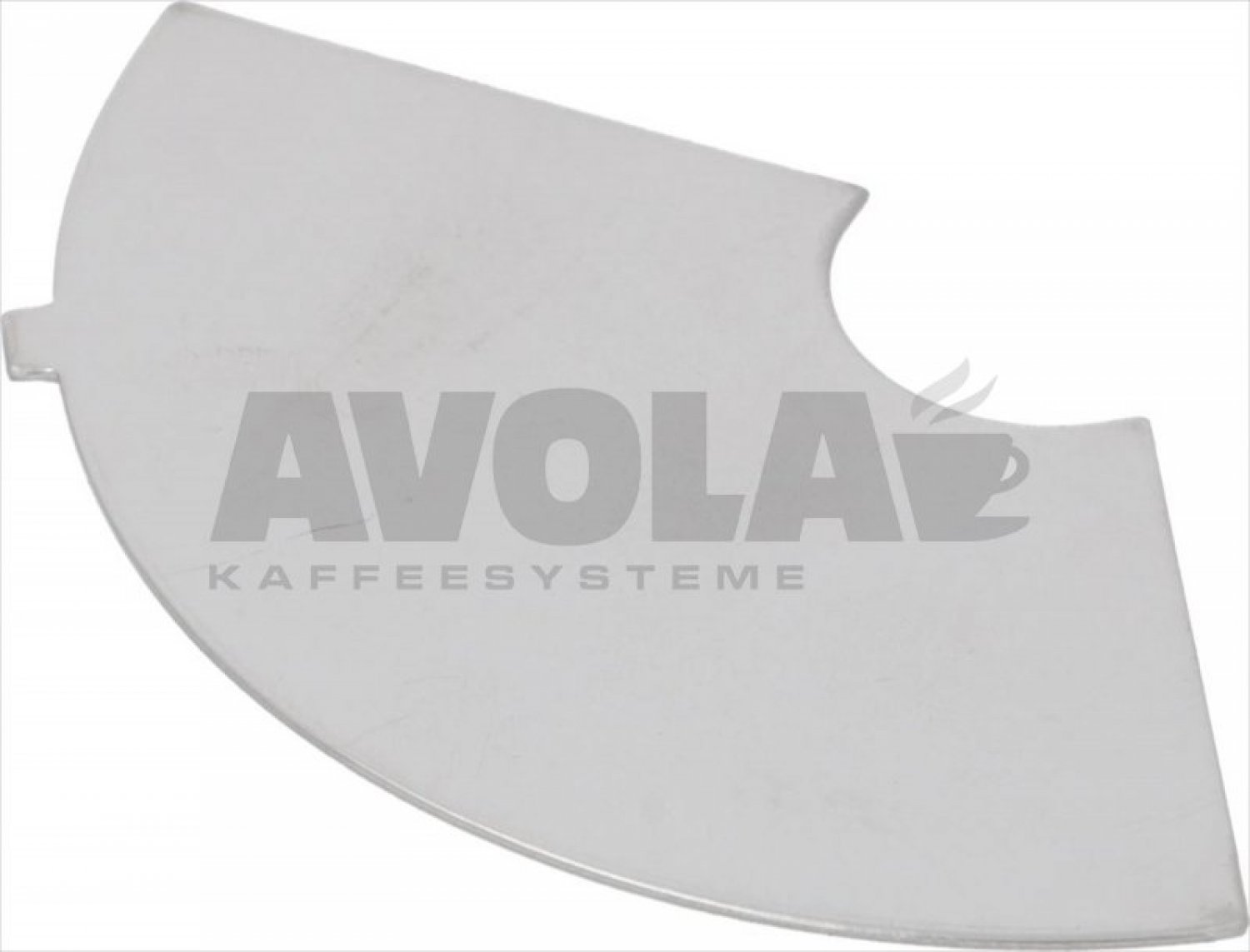

52	8004310		8004310 DOSER SHEET	excl. Shipping costs Delivery time is determined	10,14 €	10,14 € excl. Shipping costs Delivery time is determined
53	8005420		8005420 MIDDLE STAR	excl. Shipping costs Delivery time is determined	8,09 €	8,09 € excl. Shipping costs Delivery time is determined
54	8003761		8003761 STAR SPRING	excl. Shipping costs Delivery time 4-6 weeks	2,33 €	2,33 € excl. Shipping costs Delivery time 4-6 weeks
56	8005421		8005421 BOTTOM STAR	excl. Shipping costs immediately available, 1 available	19,21 €	19,21 € excl. Shipping costs immediately available, 1 available

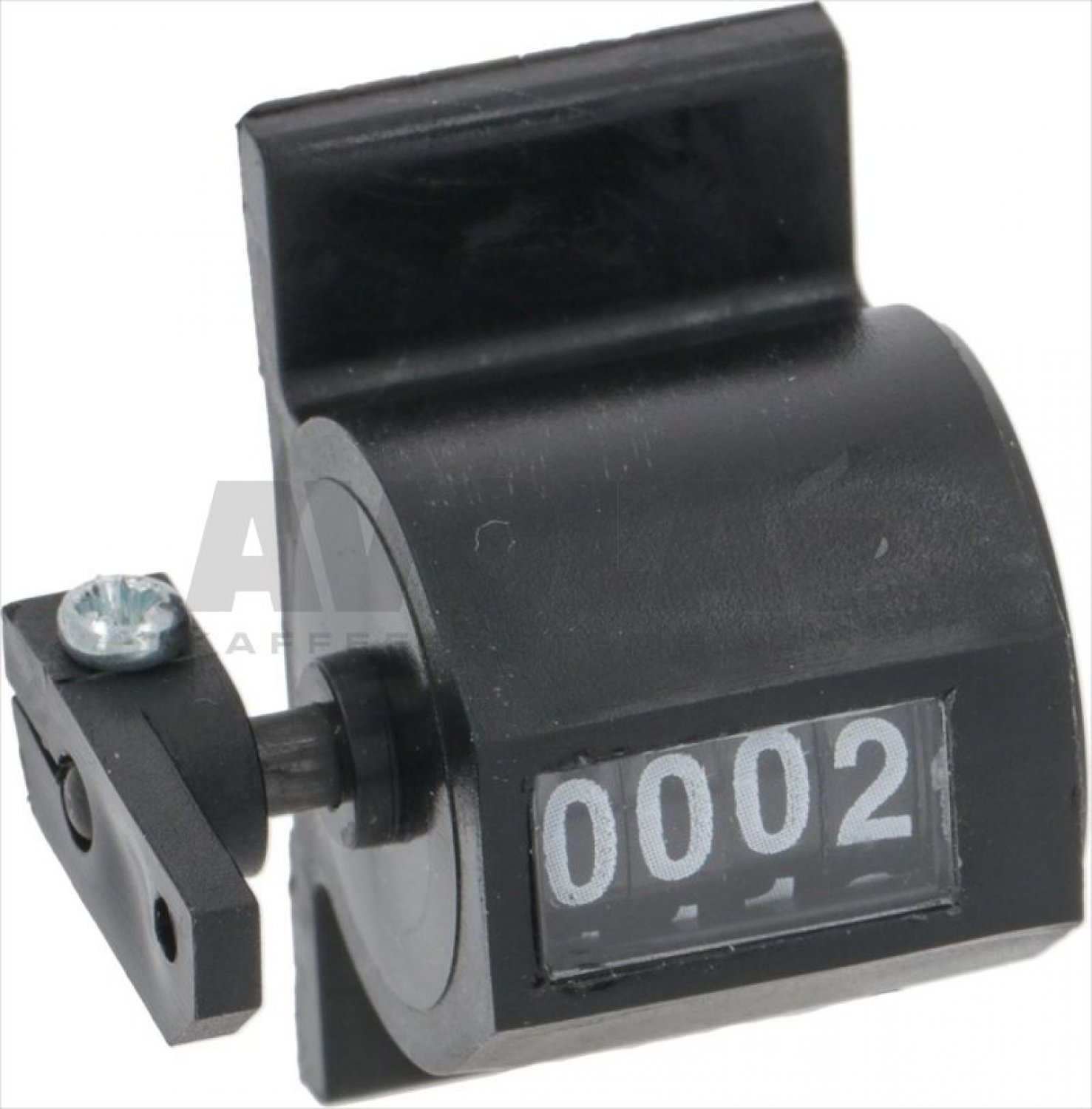

58	8004306		8004306 COUNTER FOR COFFEE GRINDER	excl. Shipping costs Delivery time is determined	23,62 €	23,62 € excl. Shipping costs Delivery time is determined
59	8004451		8004451 PIN FOR DOSER LEVER SPRING	excl. Shipping costs immediately available, 2 available	1,79 €	1,79 € excl. Shipping costs immediately available, 2 available

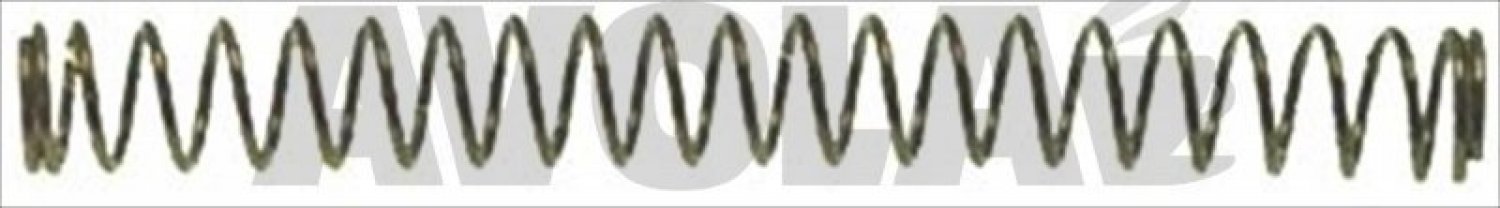

60	8003768		8003768 PEG SPRING ø 4mm - L 33mm	excl. Shipping costs immediately available, 7 available	1,21 €	1,21 € excl. Shipping costs immediately available, 7 available
61	8004452		8004452 6-TEETH PAWL	excl. Shipping costs Delivery time is determined	7,02 €	7,02 € excl. Shipping costs Delivery time is determined

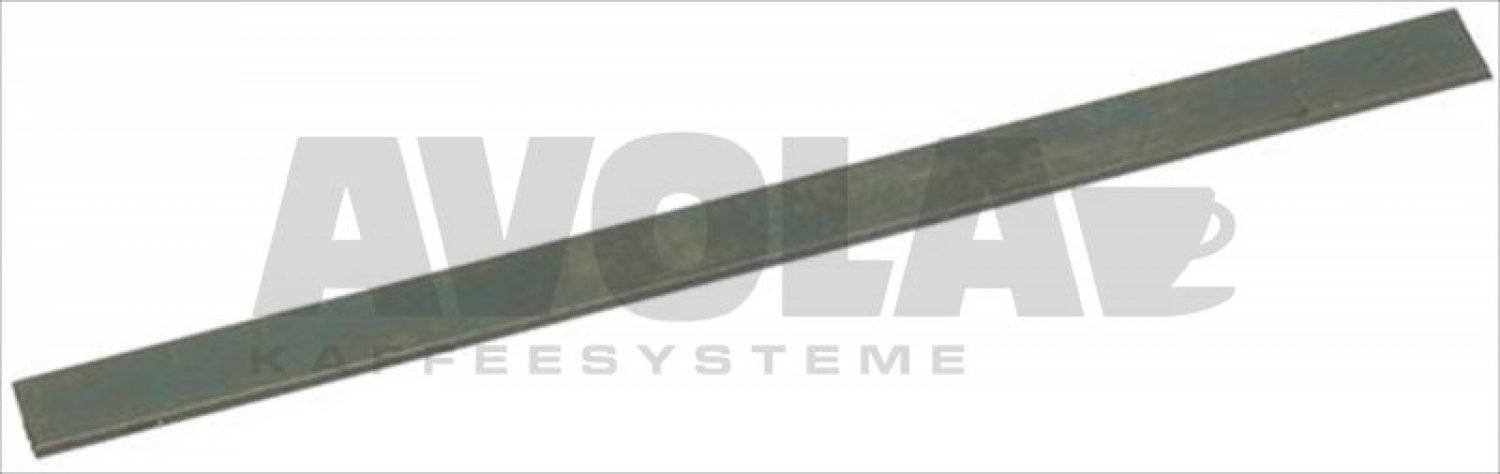

63	8003683		8003683 SHEET SPRING 89 mm	excl. Shipping costs immediately available, 5 available	2,73 €	2,73 € excl. Shipping costs immediately available, 5 available
66	8003085		8003085 MICROSWITCH 6A 250V	excl. Shipping costs Delivery time 4-6 weeks	14,85 €	14,85 € excl. Shipping costs Delivery time 4-6 weeks

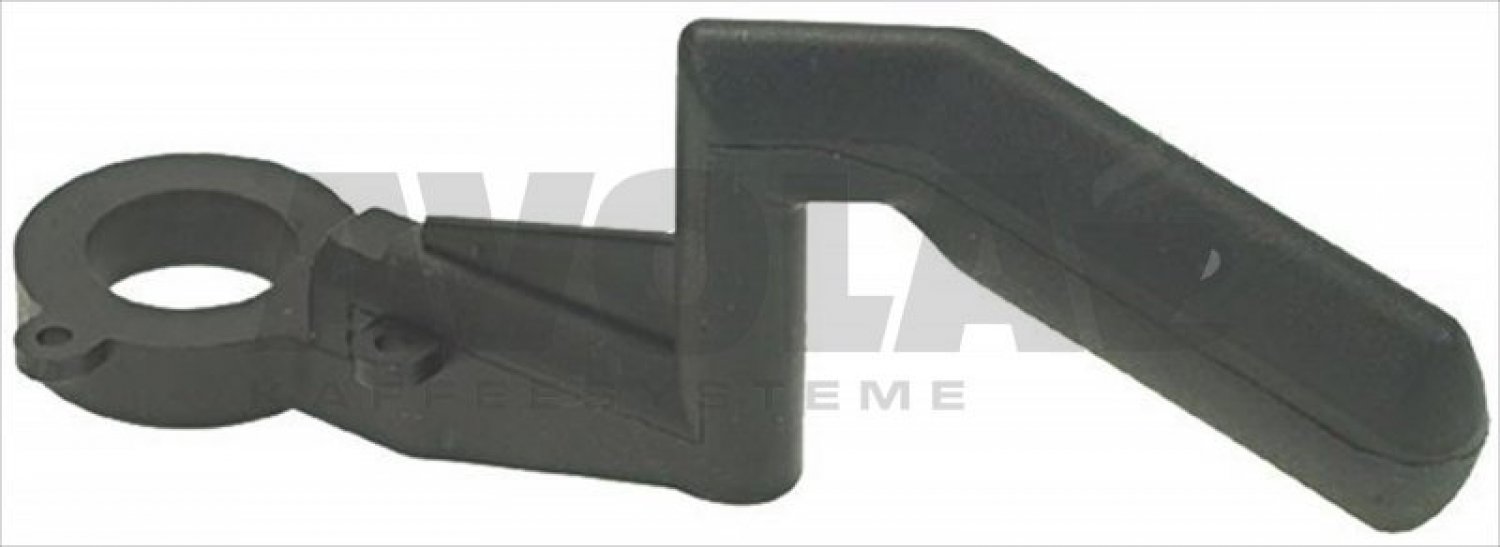

68	8004317		8004317 DOSER LEVER	excl. Shipping costs Delivery time 4-6 weeks	15,86 €	15,86 € excl. Shipping costs Delivery time 4-6 weeks
69	8007330		8007330 HEXAGON HEAD SCREW M5x10	excl. Shipping costs immediately available	1,15 €	1,15 € excl. Shipping costs immediately available
70	8003764		8003764 DOSER LEVER RETURN SPRING	excl. Shipping costs immediately available, 7 available	2,50 €	2,50 € excl. Shipping costs immediately available, 7 available
71	8003762		8003762 STROKE COUNTER SPRING	excl. Shipping costs Delivery time is determined		Price on request
74	8005190		8005190 COFFEE TAMPER PIN	excl. Shipping costs Delivery time 4-6 weeks	14,32 €	14,32 € excl. Shipping costs Delivery time 4-6 weeks

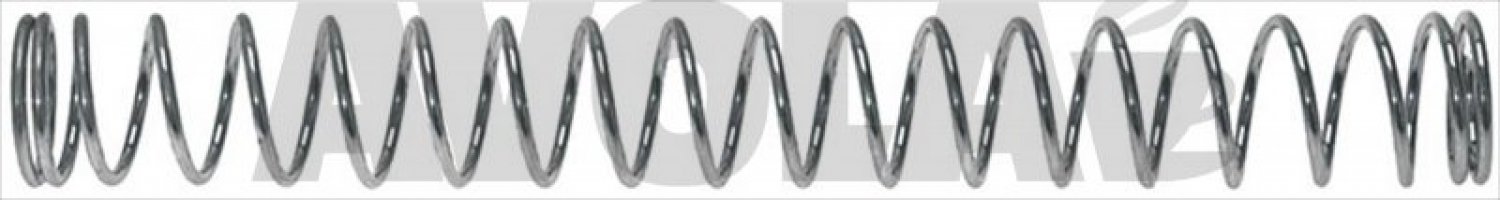

75	8003765		8003765 ROD SPRING	excl. Shipping costs immediately available, 6 available	4,46 €	4,46 € excl. Shipping costs immediately available, 6 available
76	8007330		8007330 HEXAGON HEAD SCREW M5x10	excl. Shipping costs immediately available	1,15 €	1,15 € excl. Shipping costs immediately available

If your article is not listed, please use the following form and enter the desired numbers.
