Azkoyen

AZ07 GRUPPE UND KESSEL

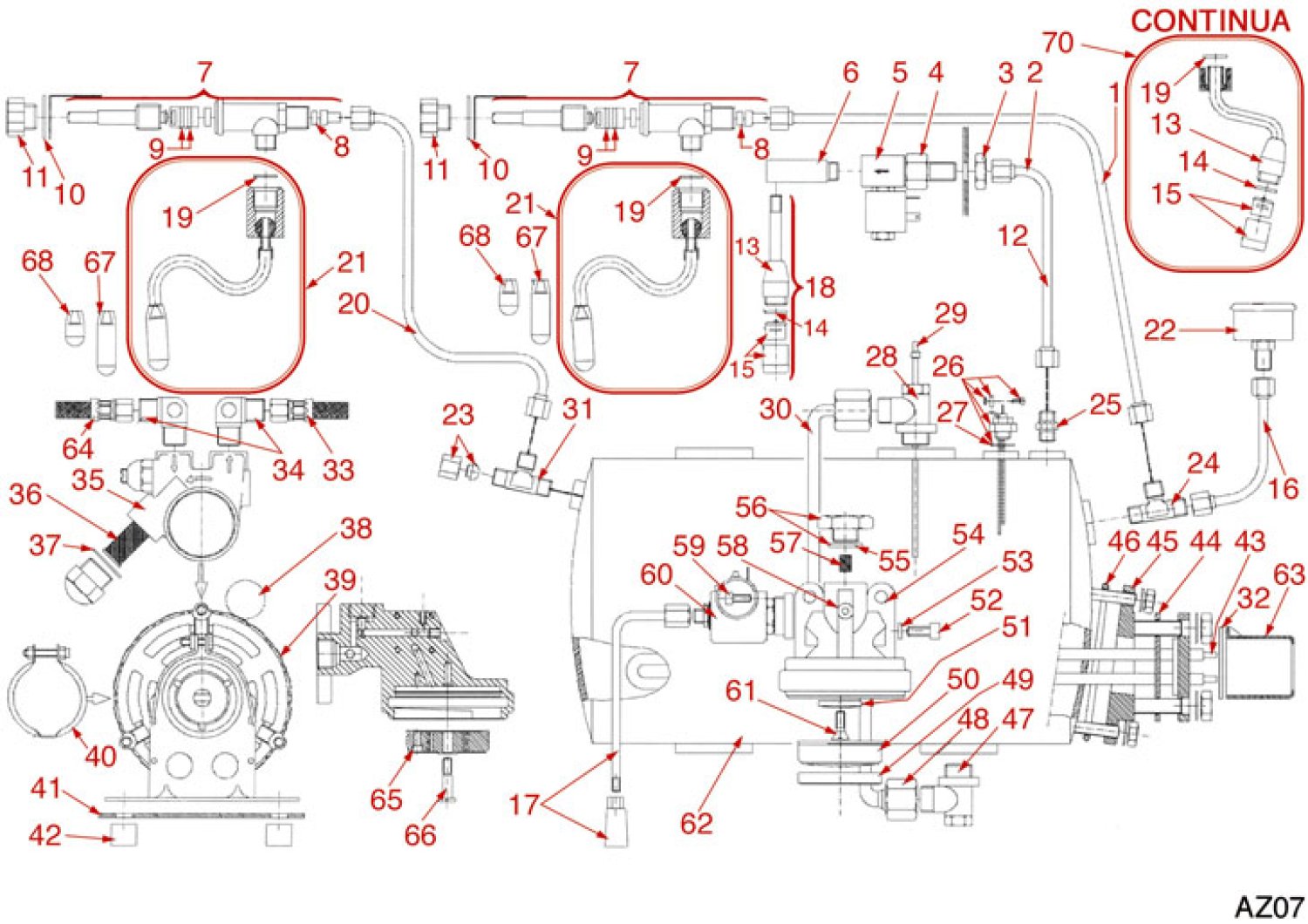

Drawing number 8038691

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
8epdm flat gasket8001793
EPDM FLAT GASKET
Price on request
9o ring 0109 epdm8001529
O-RING 0109 EPDM
0,80 €

excl. Shipping costs
immediately available
11tap nut8005433
TAP NUT
Price on request
19ptfe flat gasket 21x16 8x2 mm8001486
PTFE FLAT GASKET 21x16,8x2 mm
1,37 €

excl. Shipping costs
immediately available

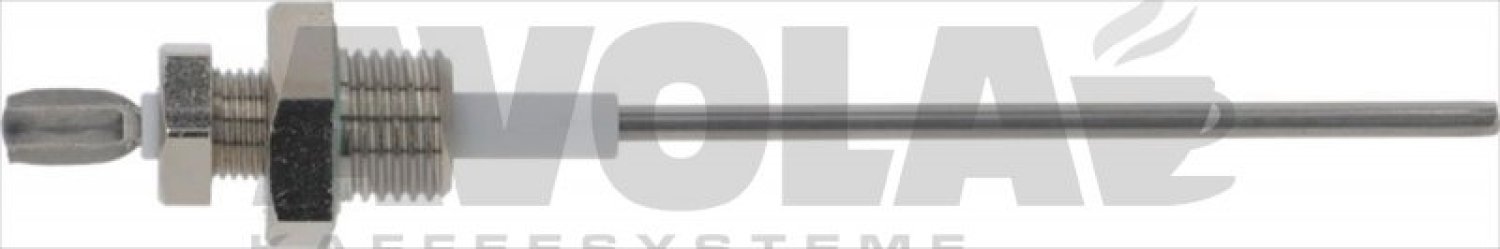

26level probe8005328
LEVEL PROBE
Price on request
35rotary vane pump procon8005235
ROTARY VANE PUMP PROCON
119,00 €

excl. Shipping costs
Delivery time
is determined
39motor rpm with clamp connection 165w8003073
MOTOR RPM WITH CLAMP CONNECTION 165W
160,69 €

excl. Shipping costs
immediately available, 1 available
40stainless steel clamp for flange pump8001277
STAINLESS STEEL CLAMP FOR FLANGE PUMP
6,90 €

excl. Shipping costs
immediately available, 8 available

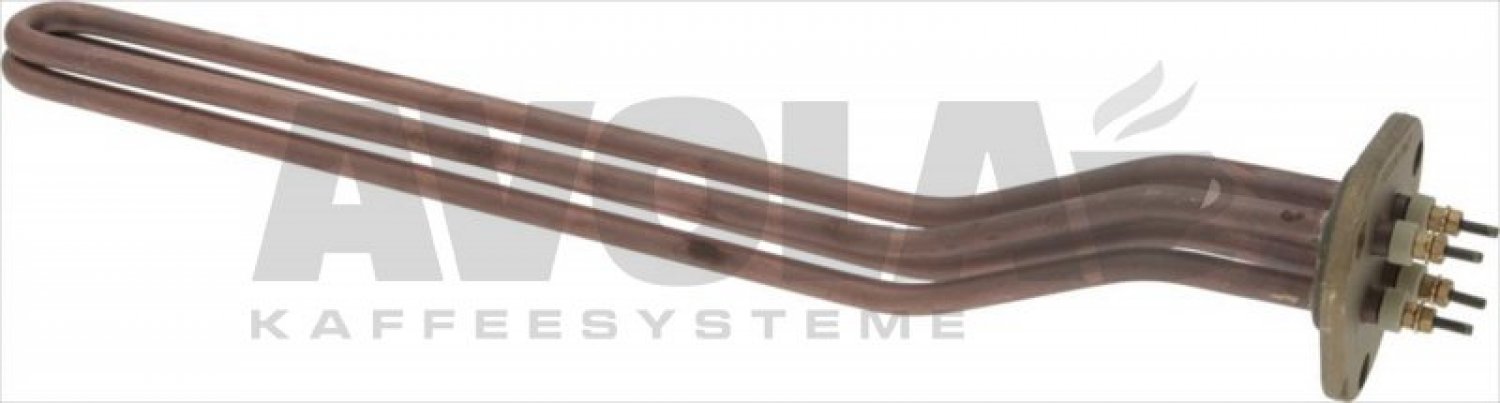

43heating element 3000w 230v8007407
HEATING ELEMENT 3000W 230V
44,78 €

excl. Shipping costs
Delivery time
is determined
44triangular gasket for heating element8001790
TRIANGULAR GASKET FOR HEATING ELEMENT
6,10 €

excl. Shipping costs
immediately available, 7 available
49filter holder gasket8001900
FILTER HOLDER GASKET
Price on request
49filter holder gasket o 73x57x9 mm8001904
FILTER HOLDER GASKET ø 73x57x9 mm
3,99 €

excl. Shipping costs
immediately available
50shower screen fuer e61 brew unit8000608
Shower screen für E61 brew unit
5,20 €

excl. Shipping costs
immediately available
59schraube zylinderkopf innensechskant vollgewinde edelstahl m4x10 a2 70 din 9128061180
Schraube Zylinderkopf Innensechskant Vollgewinde Edelstahl M4x10 A2-70 Din 912
0,67 €

excl. Shipping costs
immediately available
603 way solenoid valve lucifer 240v 50hz8000955
3-WAY SOLENOID VALVE LUCIFER 240V 50Hz
52,36 €

excl. Shipping costs
immediately available, 11 available
603 way solenoid valve parker 230v 50 60hz8000960
3-WAY SOLENOID VALVE PARKER 230V 50/60Hz
53,55 €

excl. Shipping costs
immediately available, 4 available

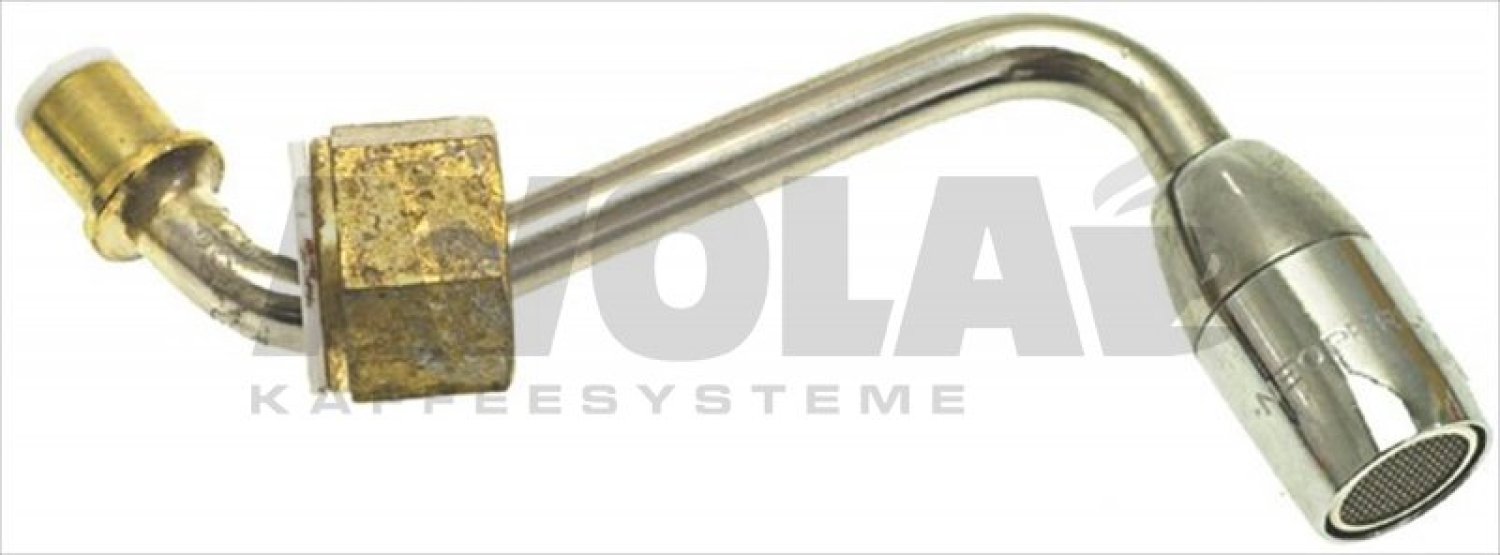

70complete water pipe8006795
COMPLETE WATER PIPE
70,28 €

excl. Shipping costs
Delivery time 4-6 weeks

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
