ASTORIA PERLA DAMPFHAHN - WASSERHAHN

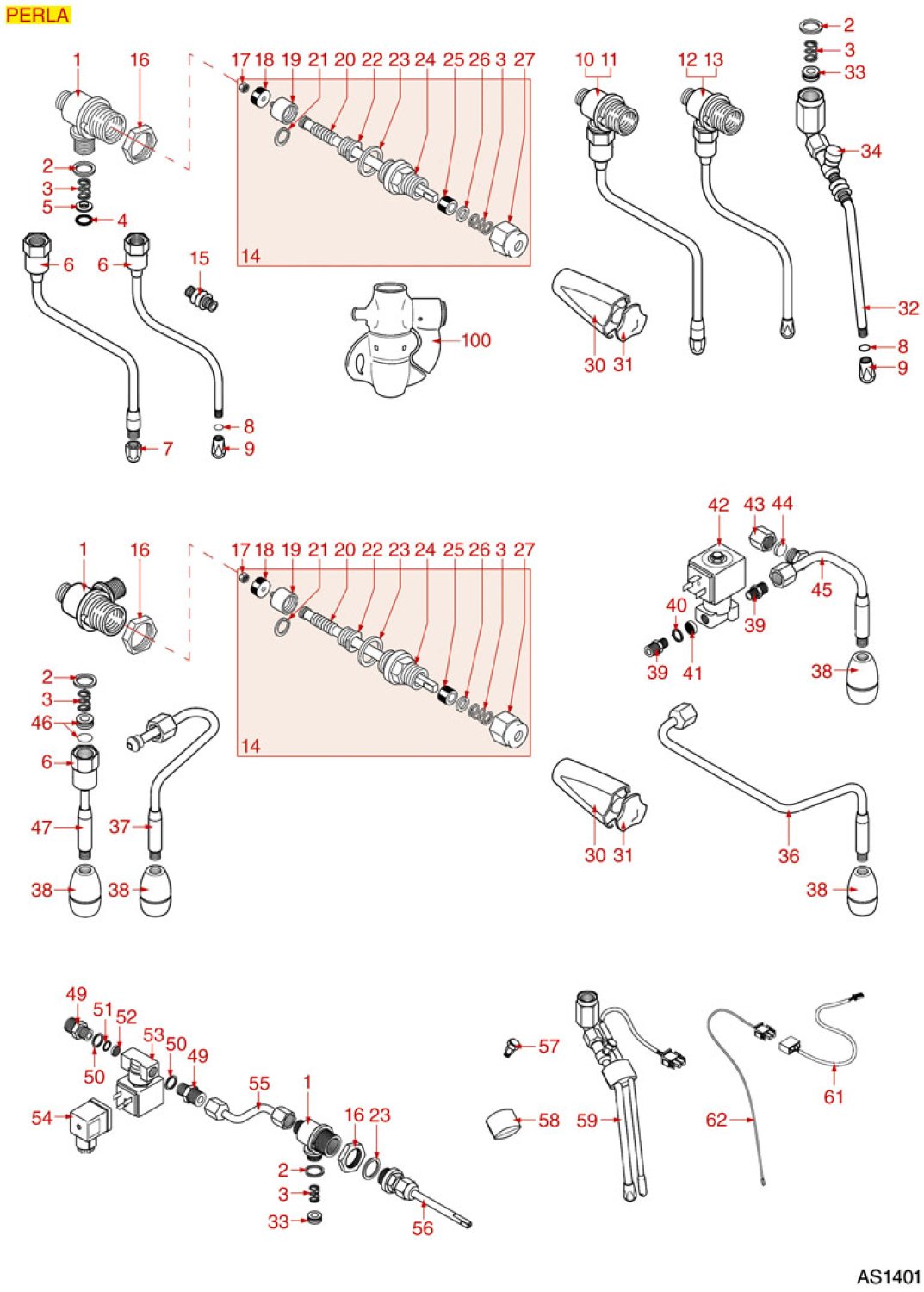

Drawing number 8038596

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
1steam tap body8005576
STEAM TAP BODY
22,24 €

excl. Shipping costs
Delivery time
is determined
2ptfe flat gasket 21x16 8x2 mm8001486
PTFE FLAT GASKET 21x16,8x2 mm
1,37 €

excl. Shipping costs
immediately available, 20 available
2asbestos free flat gasket o 22x17x2 mm8001632
ASBESTOS FREE FLAT GASKET ø 22x17x2 mm
1,18 €

excl. Shipping costs
immediately available
3spring o 11 5x16 mm8003827
Spring ø 11,5x16 mm
1,37 €

excl. Shipping costs
immediately available, 10 available
4o ring 03043 epdm8001575
O-RING 03043 EPDM
0,89 €

excl. Shipping costs
immediately available
5washer8001588
WASHER
1,26 €

excl. Shipping costs
immediately available
6chrome hexagonal nut8006628
CHROME HEXAGONAL NUT
7,54 €

excl. Shipping costs
immediately available, 3 available
7chrome water sprinkler m108006621
CHROME WATER SPRINKLER M10
11,52 €

excl. Shipping costs
Delivery time
is determined
8o ring m 0060 10 red silicone8001766
O-RING M 0060-10 RED SILICONE
2,13 €

excl. Shipping costs
immediately available, 16 available
9stainless steel water sprinkler m88006624
STAINLESS STEEL WATER SPRINKLER M8
11,95 €

excl. Shipping costs
immediately available, 1 available

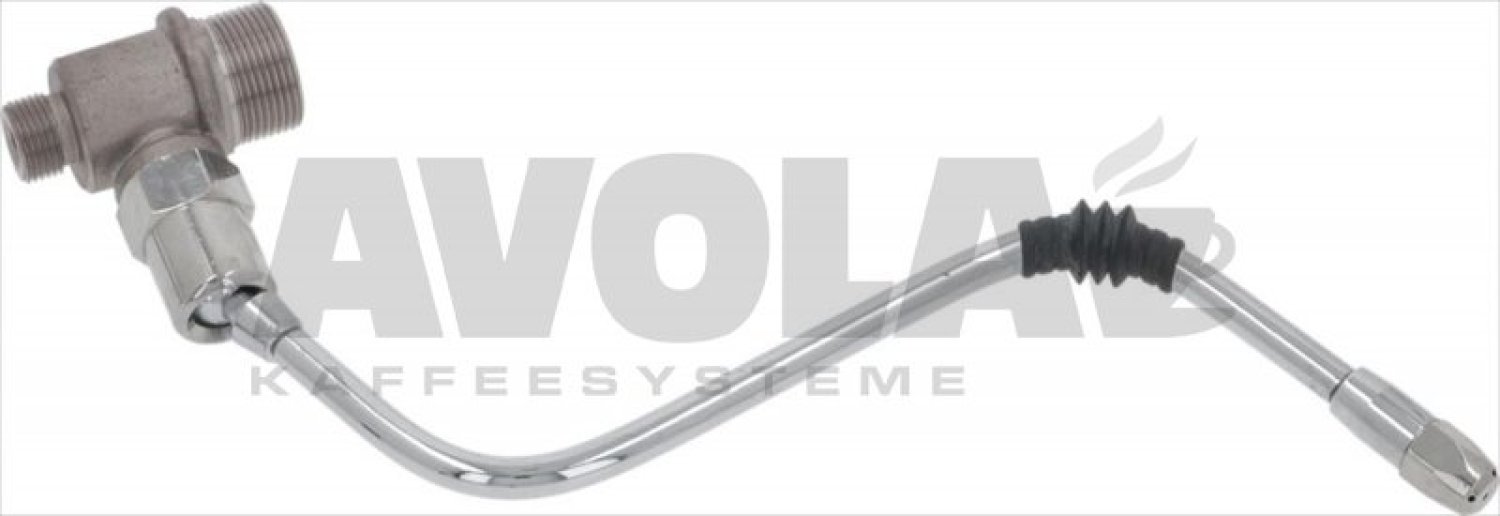

10chrome pl steam pipe complete8006626
CHROME PL.STEAM PIPE COMPLETE
86,61 €

excl. Shipping costs
Delivery time
is determined
12stainless steel steam pipe compl8006629
STAINLESS STEEL STEAM PIPE COMPL.
82,59 €

excl. Shipping costs
Delivery time 4-6 weeks

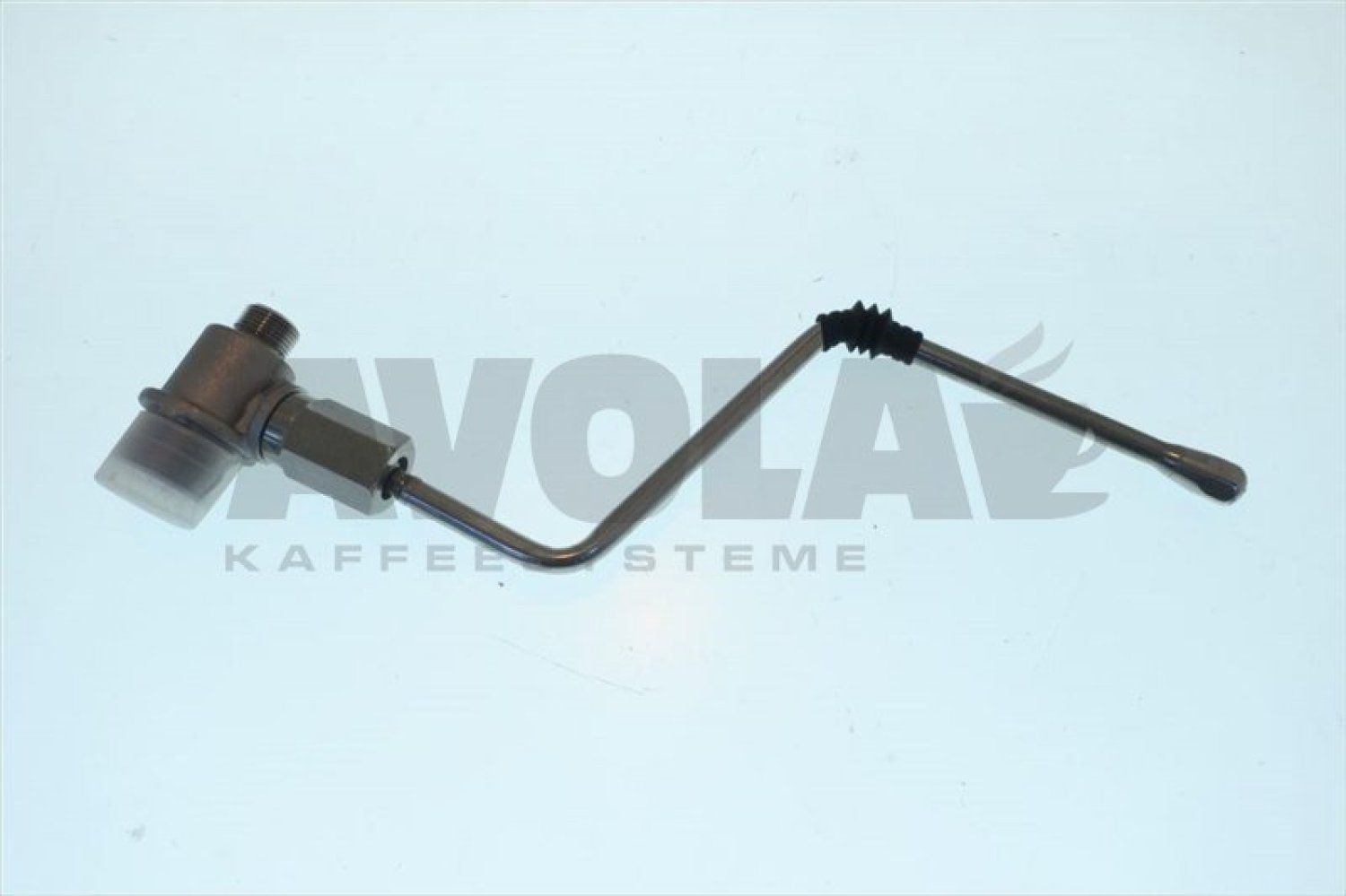

13stainless steel steam pipe compl8006633
STAINLESS STEEL STEAM PIPE COMPL.
74,35 €

excl. Shipping costs
Delivery time
is determined
14water steam tap pin rod8005493
WATER/STEAM TAP PIN ROD
33,55 €

excl. Shipping costs
immediately available, 3 available
16nut m 26x1 58005578
NUT M 26x1.5
6,06 €

excl. Shipping costs
Delivery time 4-6 weeks
17hexagonal nut m38005446
HEXAGONAL NUT M3
0,55 €

excl. Shipping costs
immediately available
18flat epdm gasket o 15x4x4 mm 80 sh8001748
Flat EPDM gasket ø 15x4x4 mm 80 SH
1,25 €

excl. Shipping costs
immediately available, 19 available
19tap piston8005131
TAP PISTON
4,70 €

excl. Shipping costs
immediately available, 10 available
21radial seeger ring8003728
RADIAL SEEGER RING
0,94 €

excl. Shipping costs
immediately available, 5 available
22gasket holder8001617
GASKET HOLDER
2,57 €

excl. Shipping costs
immediately available, 8 available
23copper flat gasket o 26x20x2 mm8001587
COPPER FLAT GASKET ø 26x20x2 mm
1,49 €

excl. Shipping costs
immediately available, 13 available
23asbestos free flat gasket o 26x20x2 mm8001590
ASBESTOS FREE FLAT GASKET ø 26x20x2 mm
1,00 €

excl. Shipping costs
immediately available, 12 available
24tap coupling8005838
TAP COUPLING
11,20 €

excl. Shipping costs
Delivery time
is determined
25flat epdm gasket o 12 5x8x9 mm8001631
FLAT EPDM GASKET ø 12,5x8x9 mm
1,05 €

excl. Shipping costs
immediately available, 18 available
26brass washer o 12x8x1 mm8001616
BRASS WASHER ø 12x8x1 mm
0,73 €

excl. Shipping costs
immediately available, 14 available
27tap nut8005581
TAP NUT
5,60 €

excl. Shipping costs
Delivery time
is determined
30water steam tap knob8003196
WATER/STEAM TAP KNOB
11,60 €

excl. Shipping costs
Delivery time
is determined
31cap for knob8003197
CAP FOR KNOB
7,37 €

excl. Shipping costs
Delivery time
is determined
33conical ptfe seal o 14x7x6 mm8001618
CONICAL PTFE SEAL ø 14x7x6 mm
3,46 €

excl. Shipping costs
immediately available, 8 available
39fitting o 1 8 and o 1 48005719
FITTING ø 1/8 and ø 1/4
6,08 €

excl. Shipping costs
immediately available, 10 available

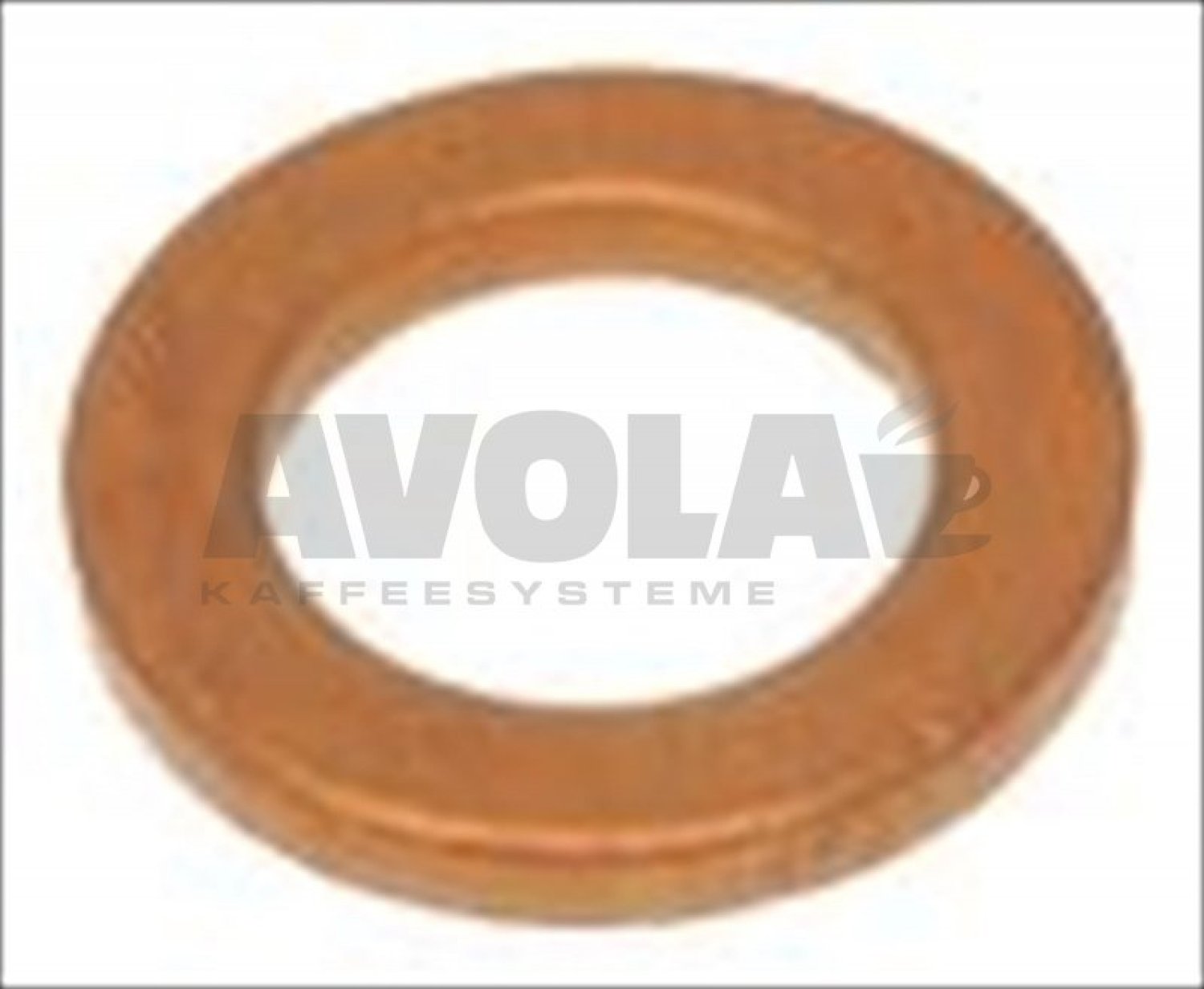

40copper flat gasket o 8 5x5x1 mm8001948
COPPER FLAT GASKET ø 8,5x5x1 mm
0,84 €

excl. Shipping costs
immediately available, 19 available
41stainless steel water filter8001124
STAINLESS STEEL WATER FILTER
2,69 €

excl. Shipping costs
immediately available
422 way solenoid valve parker 230v 50 60hz8000985
2-WAY SOLENOID VALVE PARKER 230V 50/60Hz
65,72 €
65,72 €

excl. Shipping costs
immediately available, 3 available
46conical ptfe seal o 14x7x6 mm8001618
CONICAL PTFE SEAL ø 14x7x6 mm
3,46 €

excl. Shipping costs
immediately available, 8 available
49fitting8005720
FITTING
3,50 €

excl. Shipping costs
immediately available, 11 available
50copper flat gasket o 18x14x1 5 mm8001814
COPPER FLAT GASKET ø 18x14x1,5 mm
1,19 €

excl. Shipping costs
immediately available
51o ring 02031 viton8001897
O-RING 02031 VITON
0,90 €

excl. Shipping costs
immediately available, 13 available

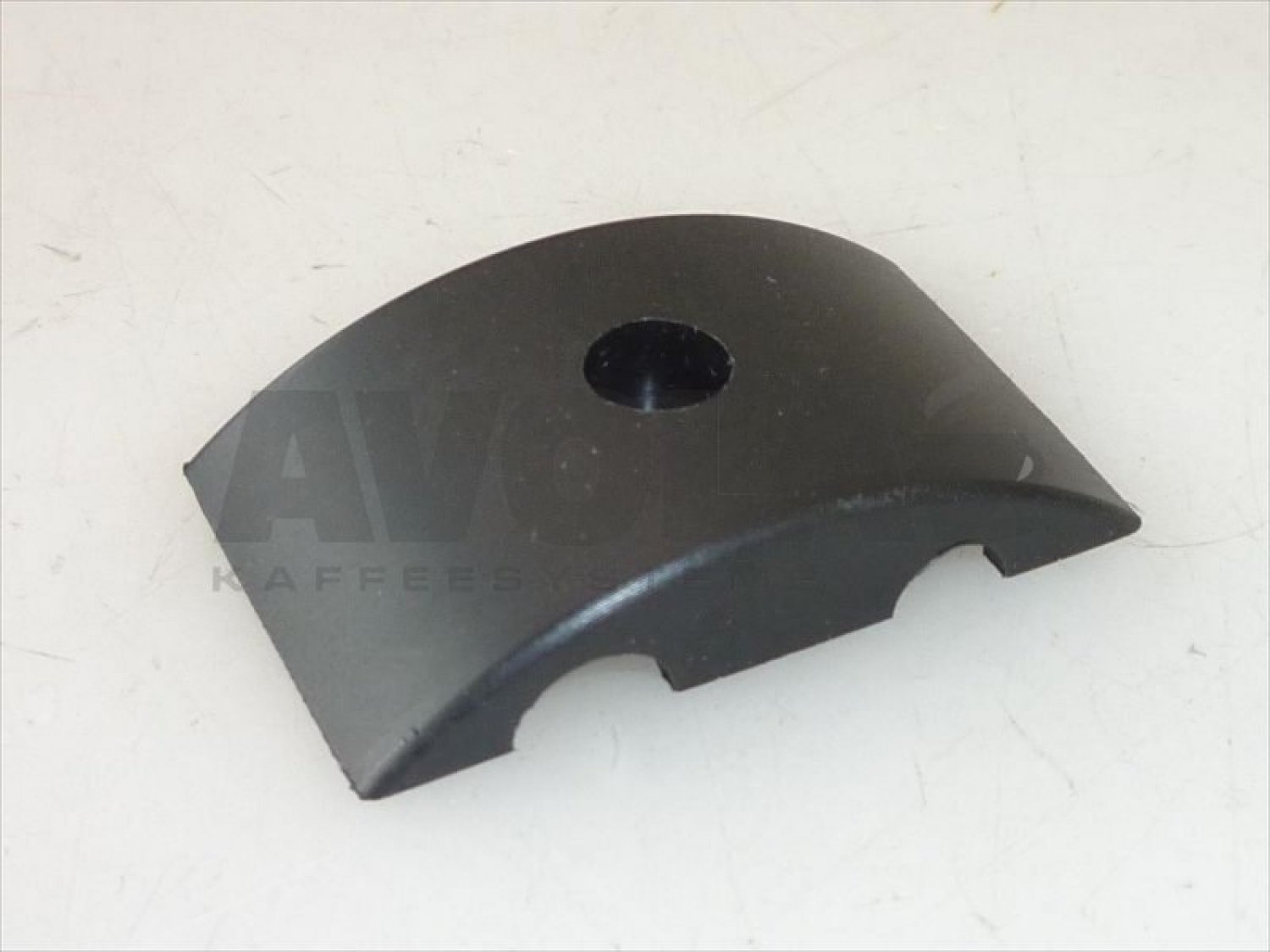

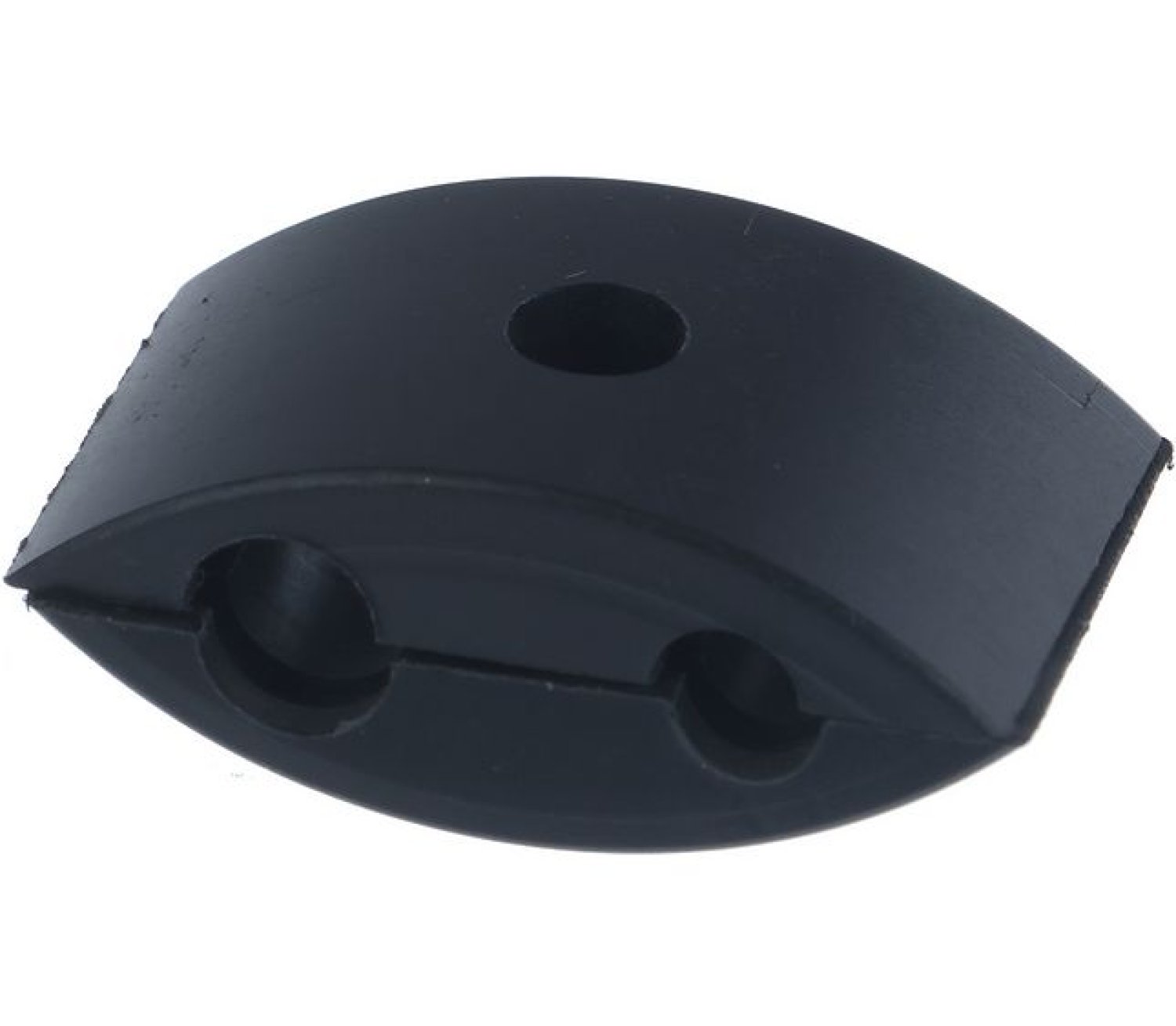

58clips 25mm fuer autosteamer8177454
CLIPS 25MM FÜR AUTOSTEAMER
41,22 €

excl. Shipping costs
Delivery time 4-6 weeks

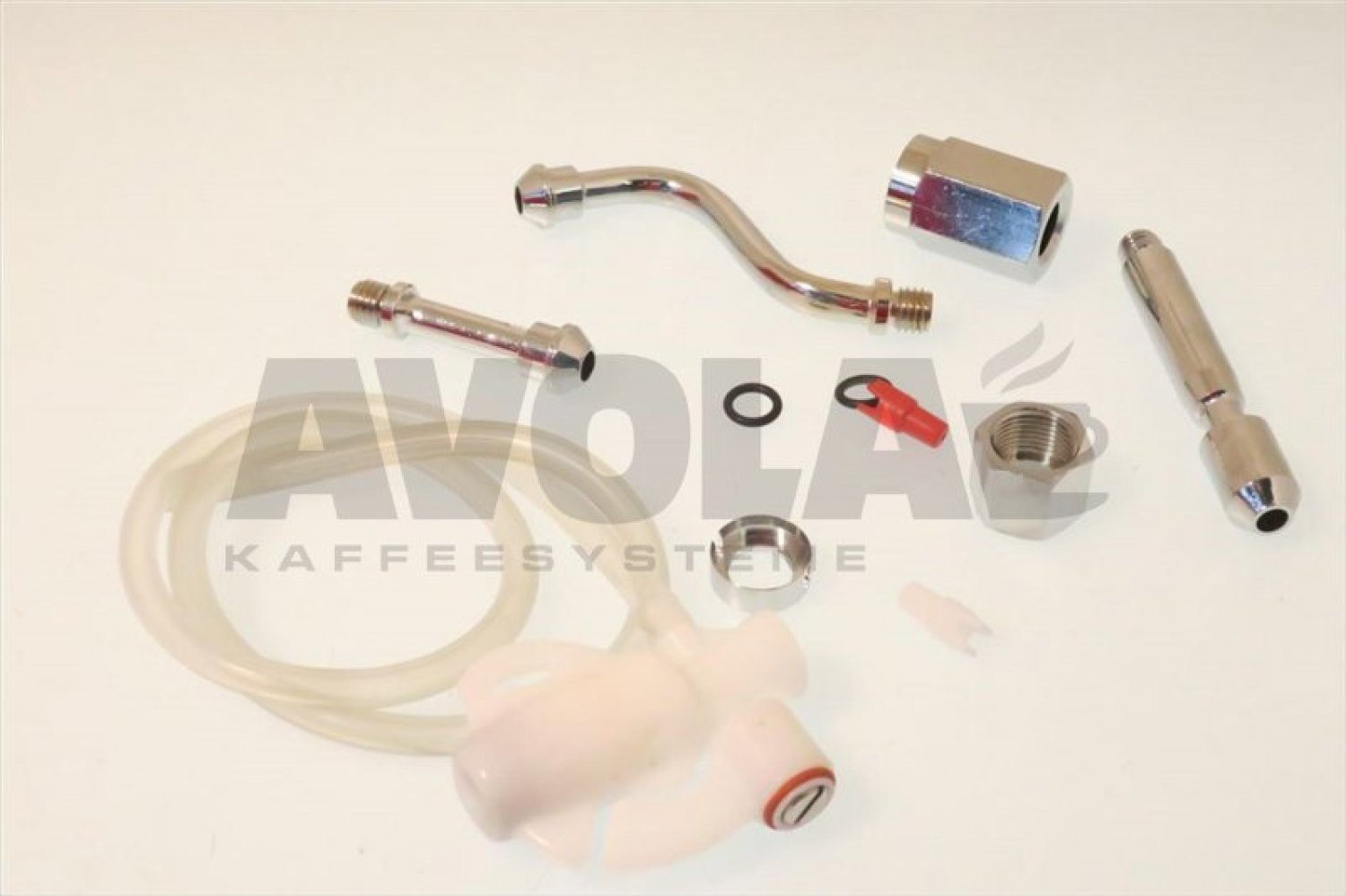

100kit cappuccinatore astoria cma8000351
KIT CAPPUCCINATORE ASTORIA/CMA
140,90 €

excl. Shipping costs
Delivery time 4-6 weeks

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
