Astoria CMA

ASTORIA GLORIA DAMPFHAHN WASSERHAHN

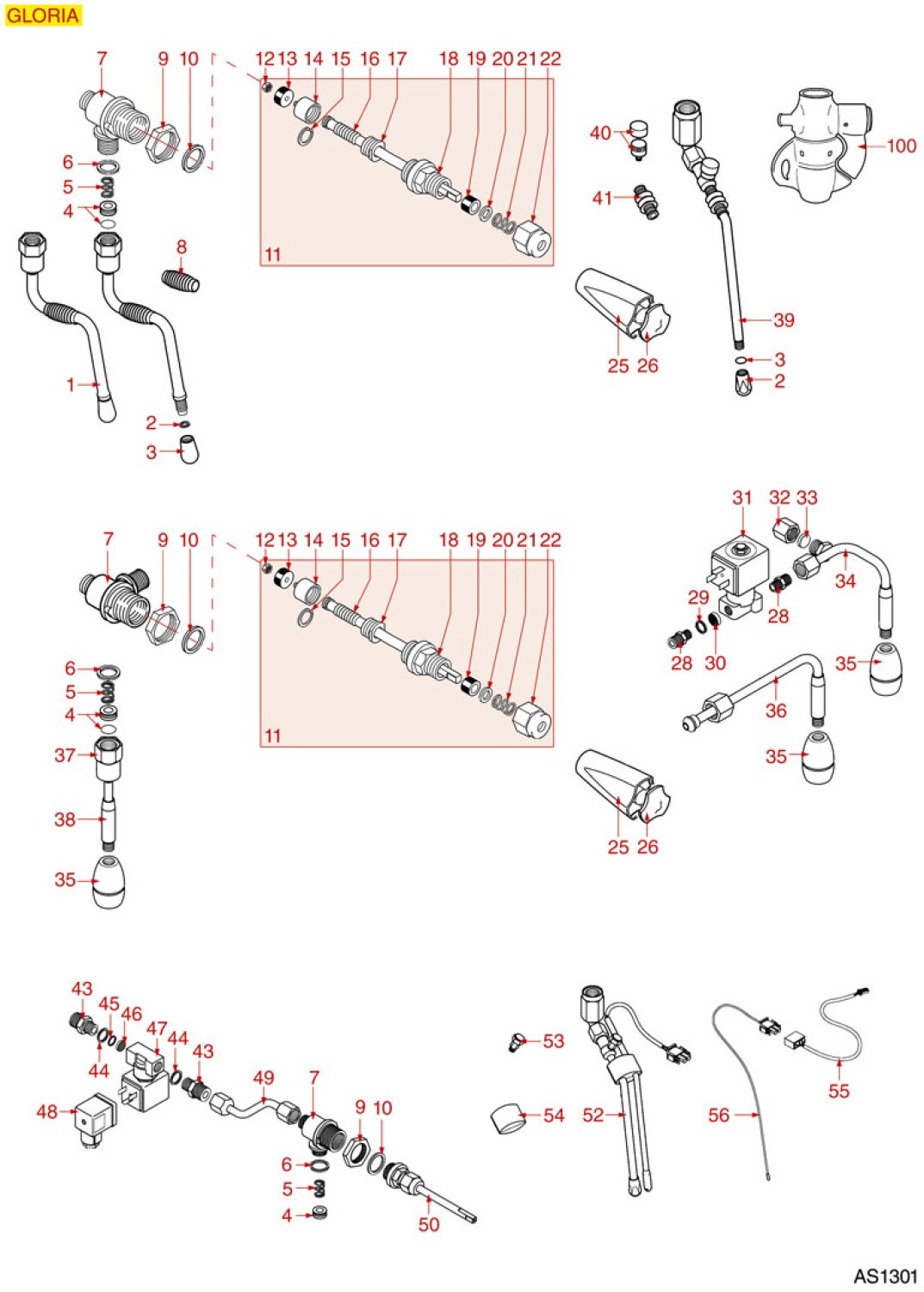

Drawing number 8038595

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
1stainless steel steam pipe compl 8006631
STAINLESS STEEL STEAM PIPE COMPL.
43,48 €

excl. Shipping costs
immediately available, 1 available
3o ring m 0060 10 red silicone8001766
O-RING M 0060-10 RED SILICONE
2,13 €

excl. Shipping costs
immediately available, 16 available
4conical ptfe seal o 14x7x6 mm8001618
CONICAL PTFE SEAL ø 14x7x6 mm
3,46 €

excl. Shipping costs
immediately available, 12 available
5spring o 11 5x16 mm8003827
Spring ø 11,5x16 mm
1,37 €

excl. Shipping costs
immediately available, 13 available
6ptfe flat gasket 21x16 8x2 mm8001486
PTFE FLAT GASKET 21x16,8x2 mm
1,37 €

excl. Shipping costs
immediately available
6asbestos free flat gasket o 22x17x2 mm8001632
ASBESTOS FREE FLAT GASKET ø 22x17x2 mm
1,18 €

excl. Shipping costs
immediately available
7steam tap body8005576
STEAM TAP BODY
22,24 €

excl. Shipping costs
Delivery time
is determined
8burn preventing rubberpiece o 10 mm8001467
Burn preventing rubberpiece ø 10 mm
2,63 €

excl. Shipping costs
immediately available, 10 available
9nut m 26x1 58005578
NUT M 26x1.5
6,06 €

excl. Shipping costs
Delivery time
is determined
10copper flat gasket o 26x20x2 mm8001587
COPPER FLAT GASKET ø 26x20x2 mm
1,49 €

excl. Shipping costs
immediately available, 18 available
10asbestos free flat gasket o 26x20x2 mm8001590
ASBESTOS FREE FLAT GASKET ø 26x20x2 mm
1,00 €

excl. Shipping costs
immediately available, 3 available
11water steam tap pin rod8005493
WATER/STEAM TAP PIN ROD
33,55 €

excl. Shipping costs
immediately available, 3 available
12hexagonal nut m38005446
HEXAGONAL NUT M3
0,55 €

excl. Shipping costs
immediately available
13flat epdm gasket o 15x4x4 mm 80 sh8001748
Flat EPDM gasket ø 15x4x4 mm 80 SH
1,25 €

excl. Shipping costs
immediately available, 14 available
14tap piston8005131
TAP PISTON
4,70 €

excl. Shipping costs
immediately available, 7 available
15radial seeger ring8003728
RADIAL SEEGER RING
0,94 €

excl. Shipping costs
immediately available, 5 available
17gasket holder8001617
GASKET HOLDER
2,57 €

excl. Shipping costs
immediately available, 8 available
18tap coupling8005838
TAP COUPLING
11,20 €

excl. Shipping costs
Delivery time
is determined
19flat epdm gasket o 12 5x8x9 mm8001631
FLAT EPDM GASKET ø 12,5x8x9 mm
1,05 €

excl. Shipping costs
immediately available, 19 available
20brass washer o 12x8x1 mm8001616
BRASS WASHER ø 12x8x1 mm
0,73 €

excl. Shipping costs
immediately available, 14 available
21spring o 11 5x16 mm8003827
Spring ø 11,5x16 mm
1,37 €

excl. Shipping costs
immediately available, 13 available
22tap nut8005581
TAP NUT
5,60 €

excl. Shipping costs
Delivery time
is determined
25water steam tap knob8003196
WATER/STEAM TAP KNOB
11,60 €

excl. Shipping costs
Delivery time
is determined
26cap for knob8003197
CAP FOR KNOB
7,37 €

excl. Shipping costs
Delivery time
is determined
28fitting o 1 8 and o 1 48005719
FITTING ø 1/8 and ø 1/4
6,08 €

excl. Shipping costs
immediately available
29copper flat gasket o 8 5x5x1 mm8001948
COPPER FLAT GASKET ø 8,5x5x1 mm
0,84 €

excl. Shipping costs
immediately available
30stainless steel water filter8001124
STAINLESS STEEL WATER FILTER
2,69 €

excl. Shipping costs
immediately available
312 way solenoid valve parker 230v 50 60hz8000985
2-WAY SOLENOID VALVE PARKER 230V 50/60Hz
65,72 €
65,72 €

excl. Shipping costs
Delivery time
is determined

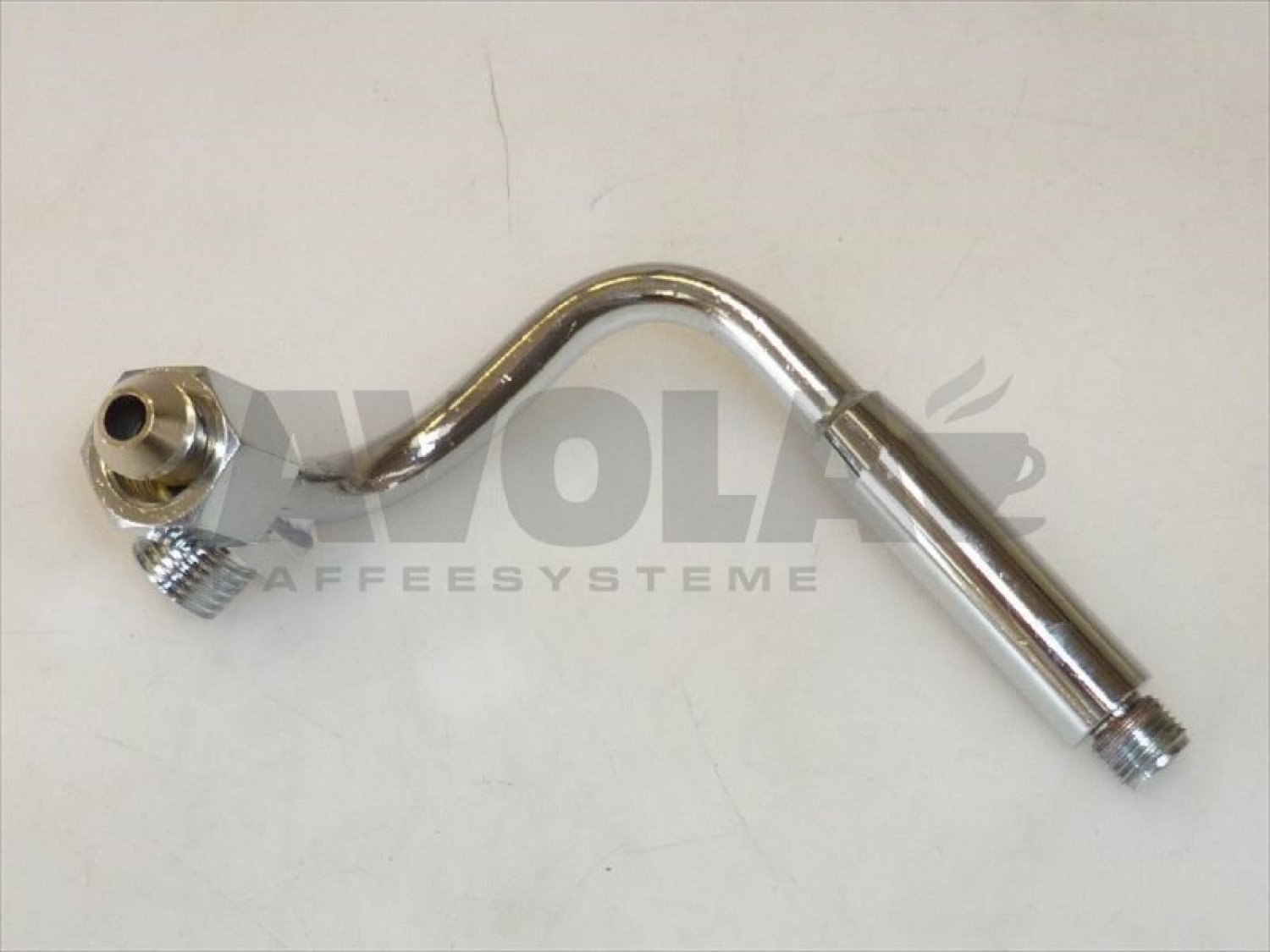

34astoria cma wasserrohr8079312
ASTORIA CMA WASSERROHR
51,11 €

excl. Shipping costs
Delivery time
is determined
35water pipe nozzle 1 88006744
WATER PIPE NOZZLE 1/8
8,20 €

excl. Shipping costs
immediately available, 3 available
37chrome hexagonal nut8006628
CHROME HEXAGONAL NUT
7,54 €

excl. Shipping costs
immediately available, 4 available
43fitting8005720
FITTING
3,50 €

excl. Shipping costs
immediately available, 18 available
44copper flat gasket o 18x14x1 5 mm8001814
COPPER FLAT GASKET ø 18x14x1,5 mm
1,19 €

excl. Shipping costs
immediately available
45o ring 02031 viton8001897
O-RING 02031 VITON
0,90 €

excl. Shipping costs
immediately available, 6 available
100kit cappuccinatore astoria cma8000351
KIT CAPPUCCINATORE ASTORIA/CMA
140,90 €

excl. Shipping costs
Delivery time 4-6 weeks

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
