Astoria CMA

ASTORIA-CMA - HYDRAULISCHE ANLAGE PLUS 4 YOU

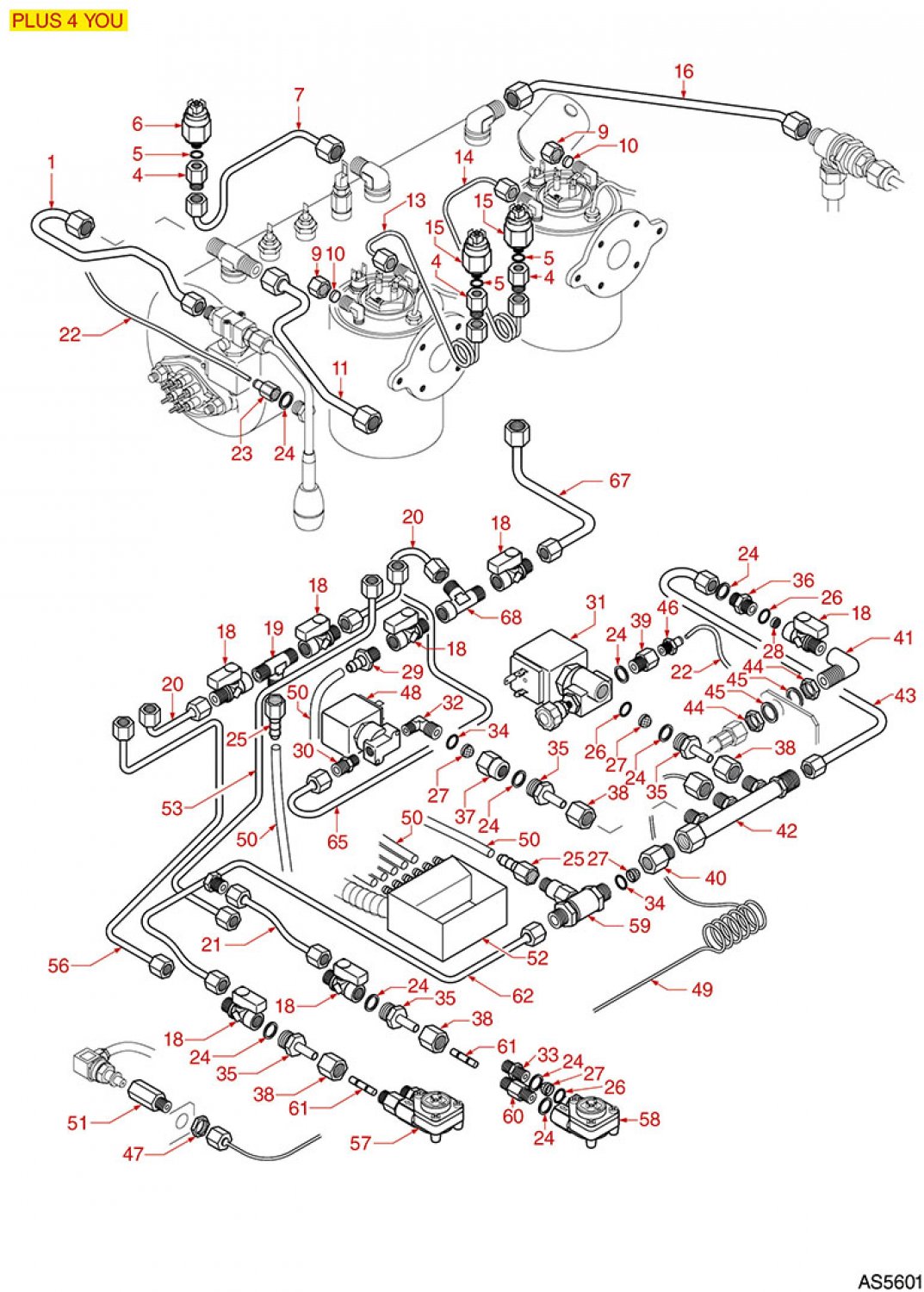

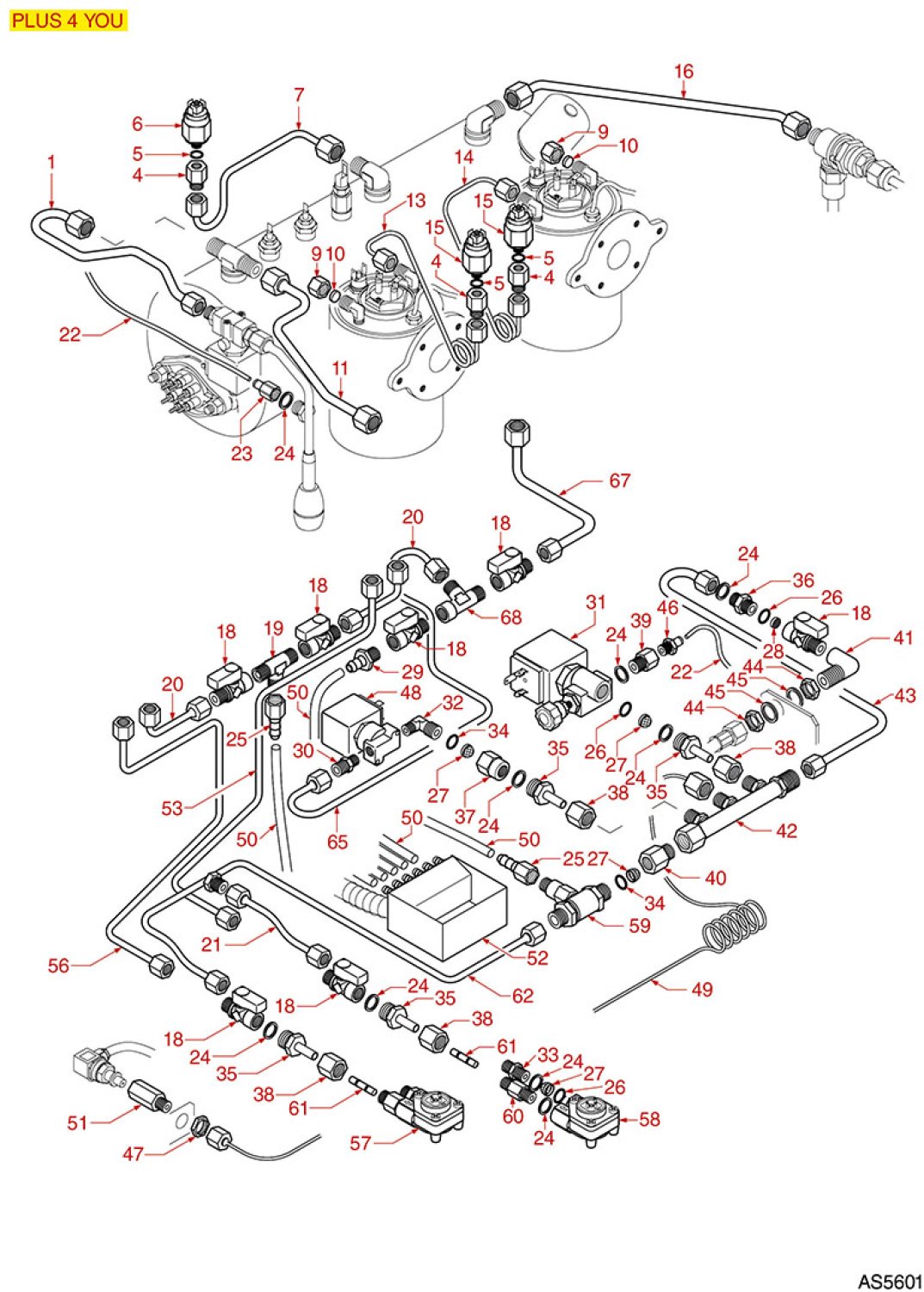

Drawing number 8062726

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
5flat copper gasket o 13x10x1 mm8059188
FLAT COPPER GASKET ø 13x10x1 mm
1,01 €

excl. Shipping costs
immediately available, 19 available
6pressure switch es31 1 5 bar8062715
PRESSURE SWITCH ES31 1.5 BAR
58,42 €

excl. Shipping costs
immediately available, 7 available
15pressure switch es31 2 bar8062727
PRESSURE SWITCH ES31 2 BAR
51,03 €

excl. Shipping costs
immediately available, 1 available

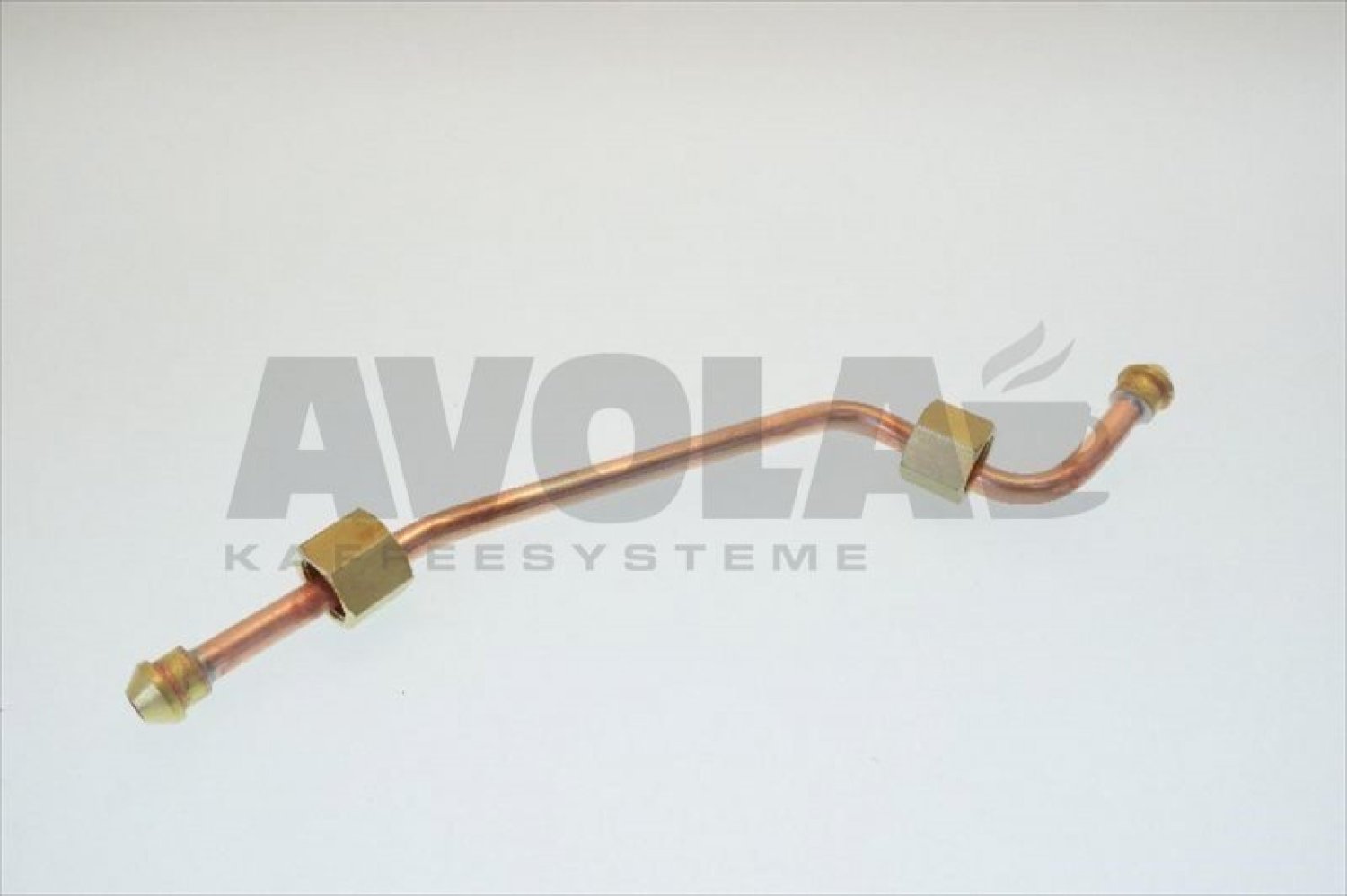

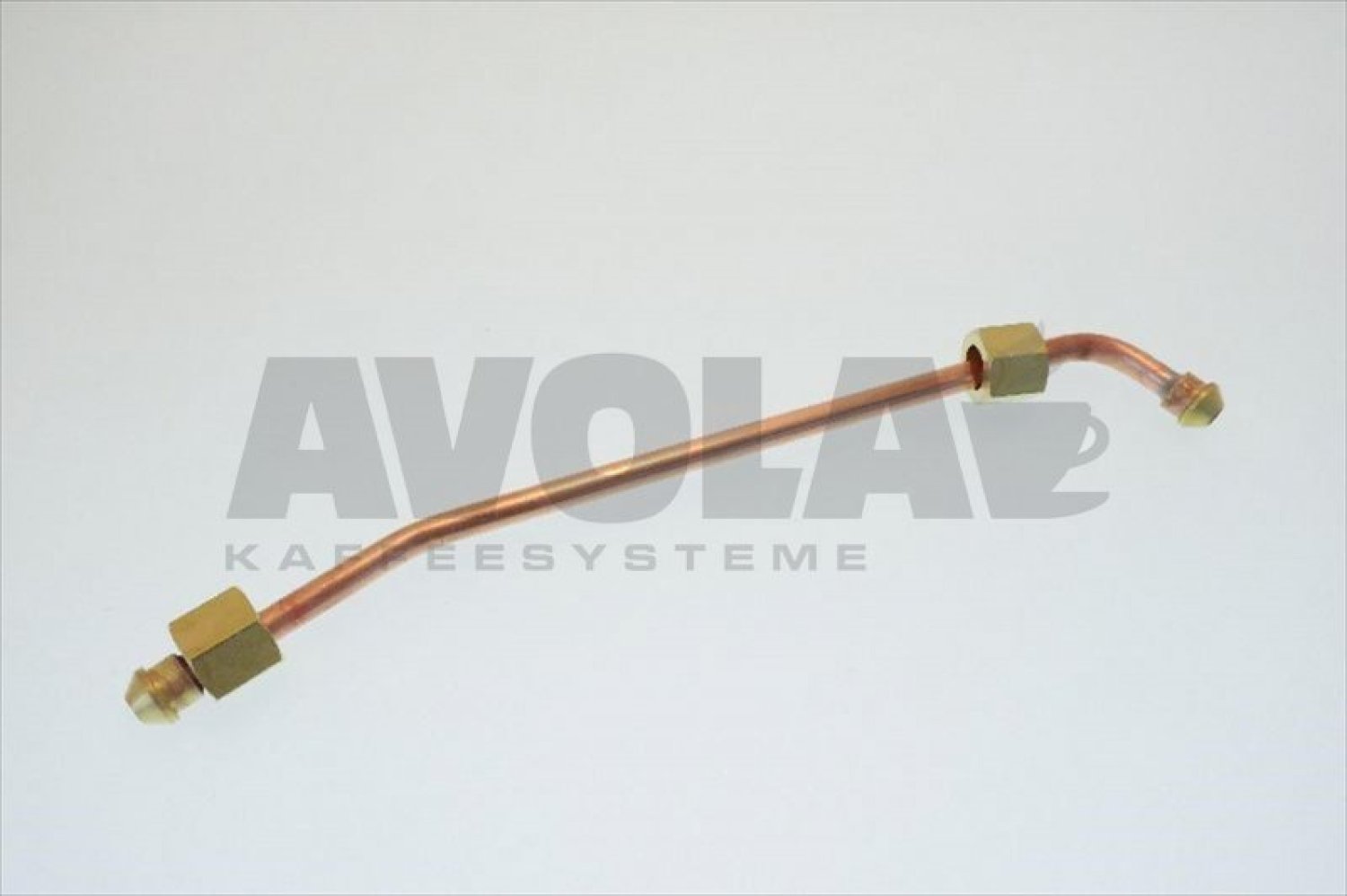

16astoria plus 4 you rohr zum dampfventil o8mm l295mm8190400
Astoria Plus 4 You Rohr zum Dampfventil Ø8mm L295mm
37,71 €

excl. Shipping costs
Delivery time 4-6 weeks

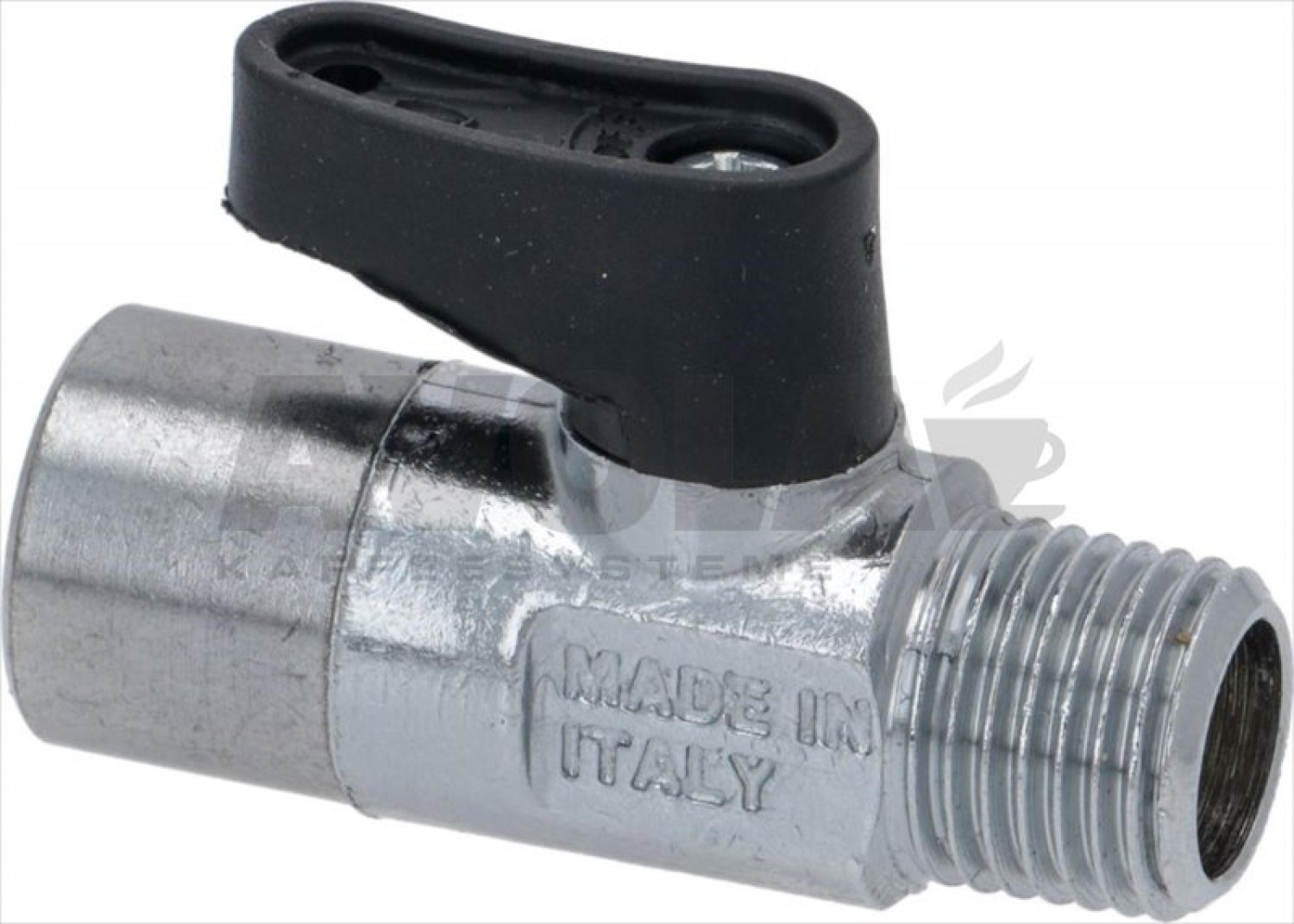

18ballcock valve8062728
BALLCOCK VALVE
24,11 €

excl. Shipping costs
Delivery time
is determined
19nichel pl t fitting8022435
NICHEL-PL.T-FITTING
5,39 €

excl. Shipping costs
immediately available, 10 available
22ptfe pipe 2x4 1mt8006800
PTFE PIPE 2X4 1MT
7,14 €

excl. Shipping costs
immediately available, 12 available
24copper flat gasket o 18x14x1 5 mm8001814
COPPER FLAT GASKET ø 18x14x1,5 mm
1,19 €

excl. Shipping costs
immediately available
26o ring 02031 viton8001897
O-RING 02031 VITON
0,90 €

excl. Shipping costs
immediately available, 6 available
27water filter o 11 mm8001106
WATER FILTER ø 11 mm
2,11 €

excl. Shipping costs
immediately available
28stainless steel water filter8001124
STAINLESS STEEL WATER FILTER
2,69 €

excl. Shipping costs
immediately available
30fitting o 1 8 and o 1 48005719
FITTING ø 1/8 and ø 1/4
6,08 €

excl. Shipping costs
immediately available

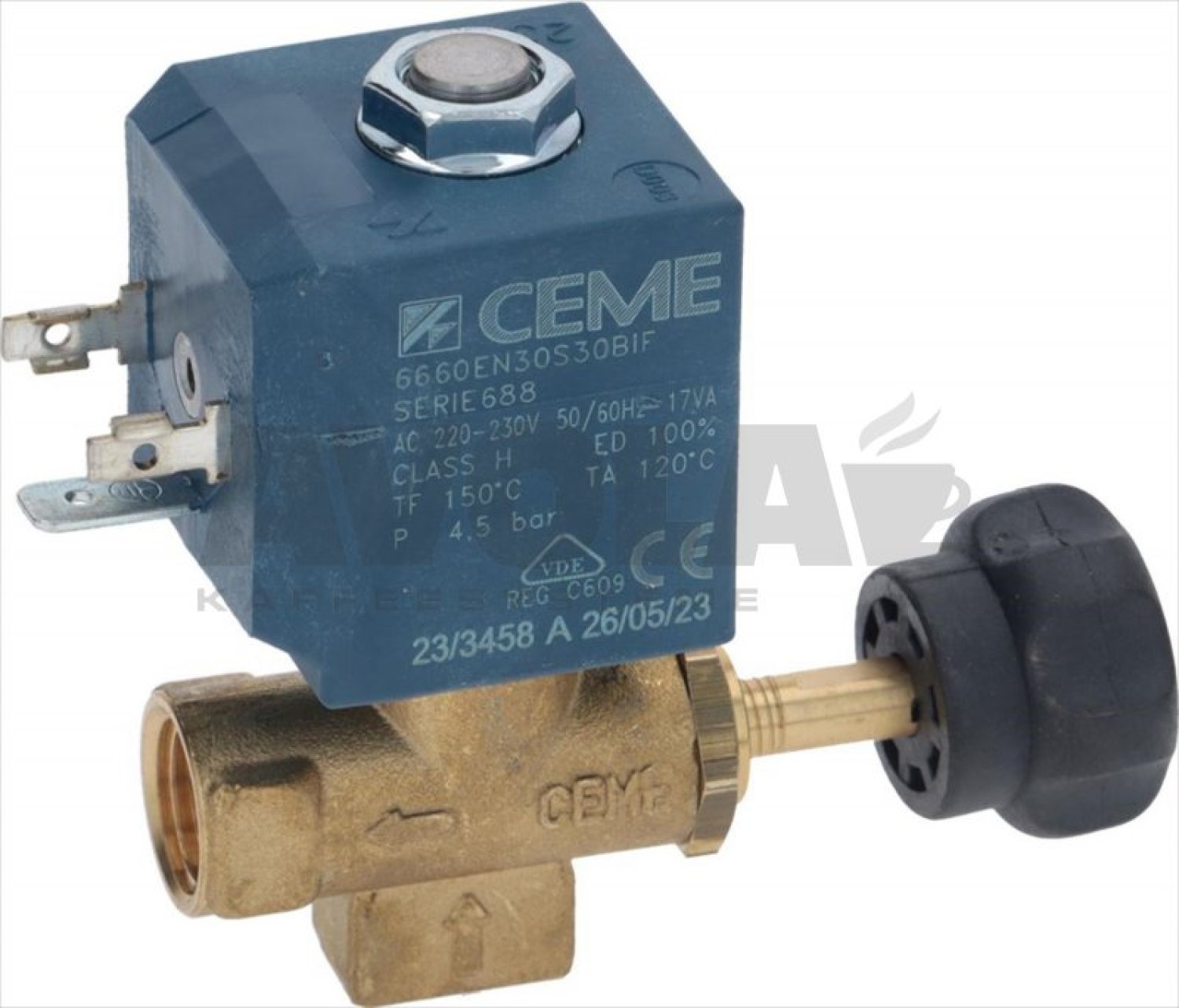

312 way solenoid valve ceme8000978
2-WAY SOLENOID VALVE CEME
44,40 €

excl. Shipping costs
Delivery time 4-6 weeks

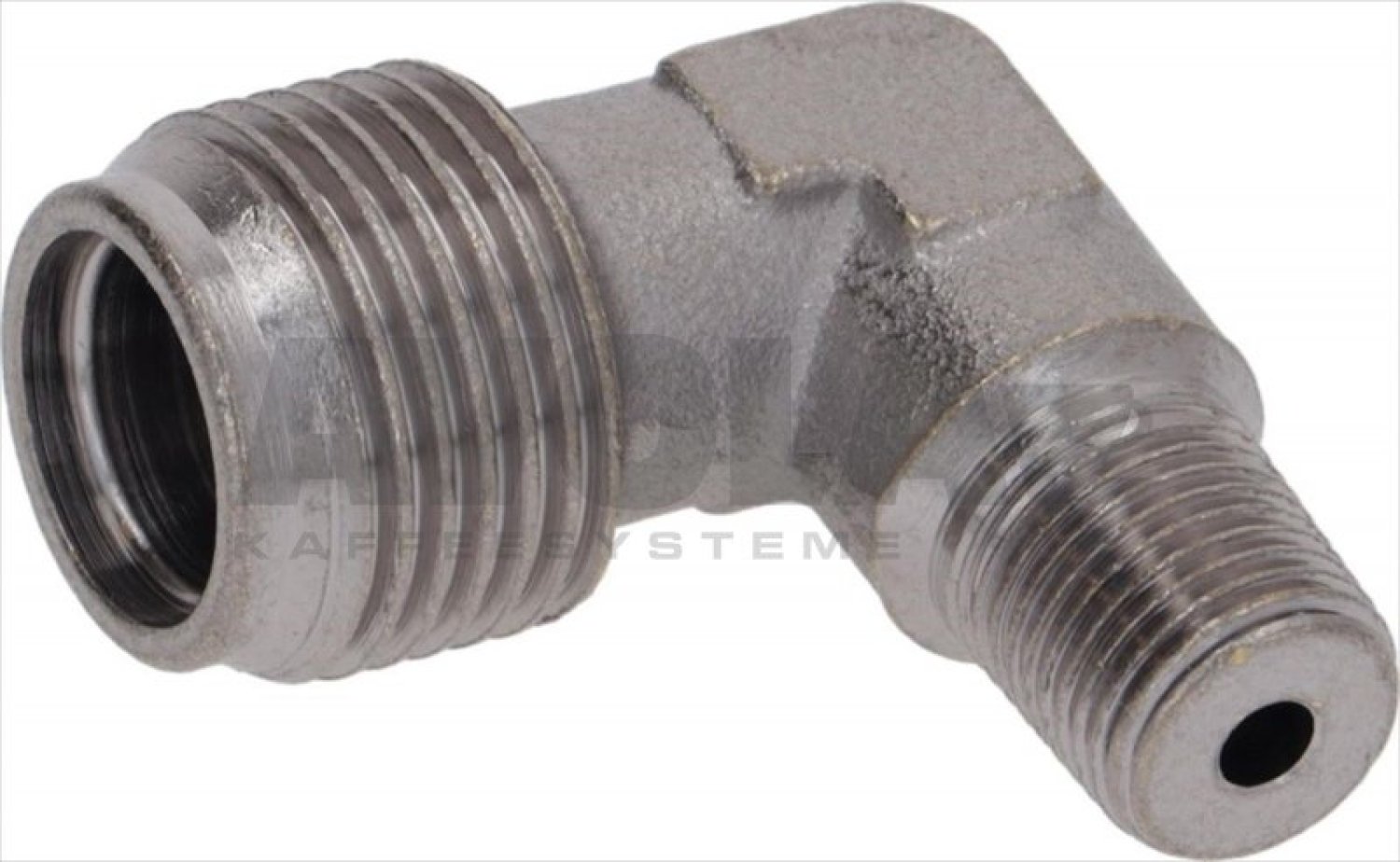

32fitting o 3 8 quot x1 8 quot 8062729
FITTING ø 3/8 " x1/8 "
8,59 €

excl. Shipping costs
immediately available, 6 available
33fitting o 1 48005710
Fitting ø 1/4
3,64 €

excl. Shipping costs
immediately available, 12 available
34o ring 0108 epdm8001655
O-RING 0108 EPDM
0,79 €

excl. Shipping costs
immediately available
35astoria adapter zum anschluss von kaltwassermischventil 1 4 quot bsp8352091
Astoria Adapter zum Anschluss von Kaltwassermischventil 1/4"BSP
29,75 €

excl. Shipping costs
immediately available, 2 available

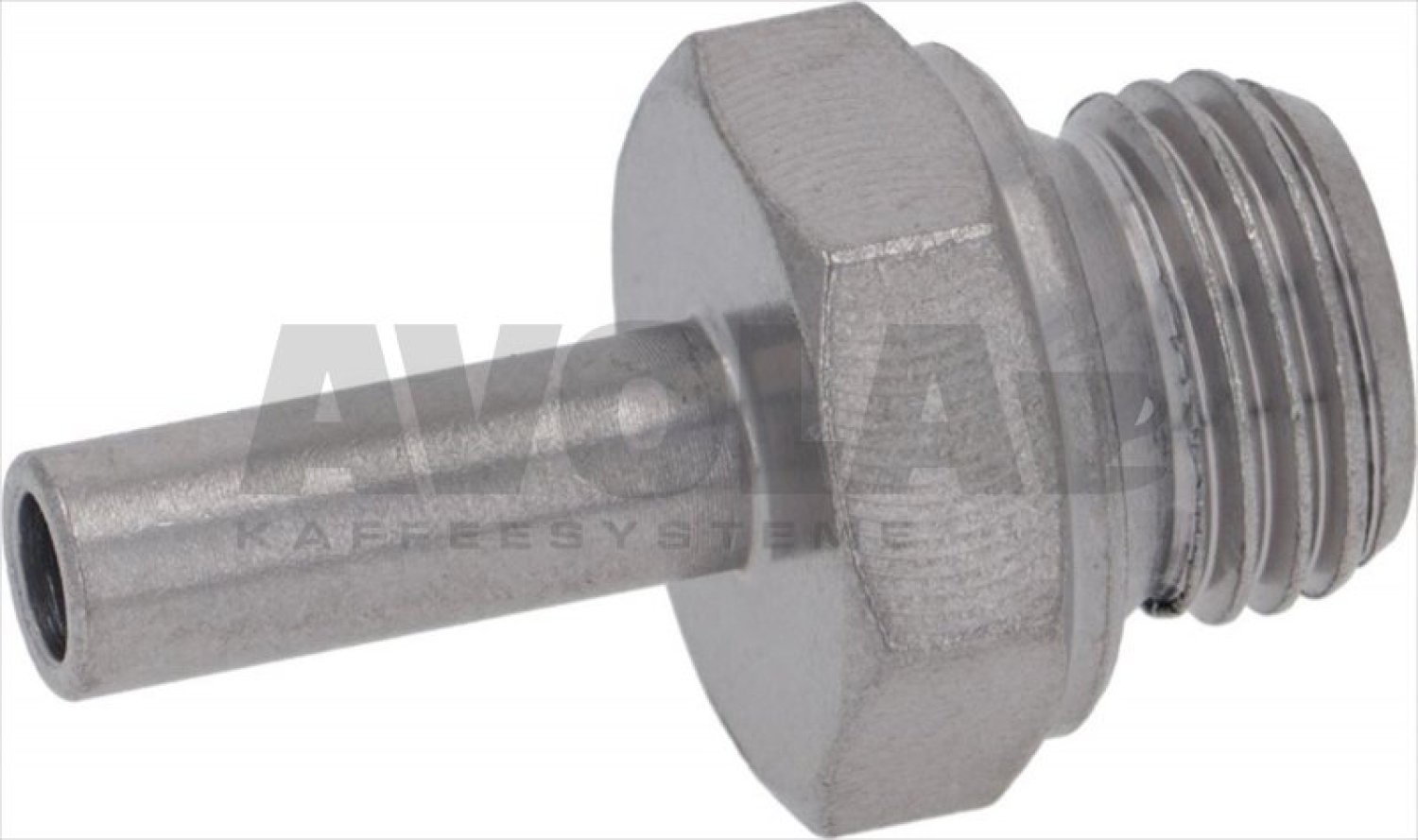

35adattatore di orientamento 1 4m d 68189329
ADATTATORE DI ORIENTAMENTO 1/4M D-6
38,89 €

excl. Shipping costs
Delivery time
is determined
36fitting8005720
FITTING
3,50 €

excl. Shipping costs
immediately available, 18 available
38astoria adapter zum anschluss von kaltwassermischventil 1 4 quot bsp8352091
Astoria Adapter zum Anschluss von Kaltwassermischventil 1/4"BSP
29,75 €

excl. Shipping costs
immediately available, 2 available

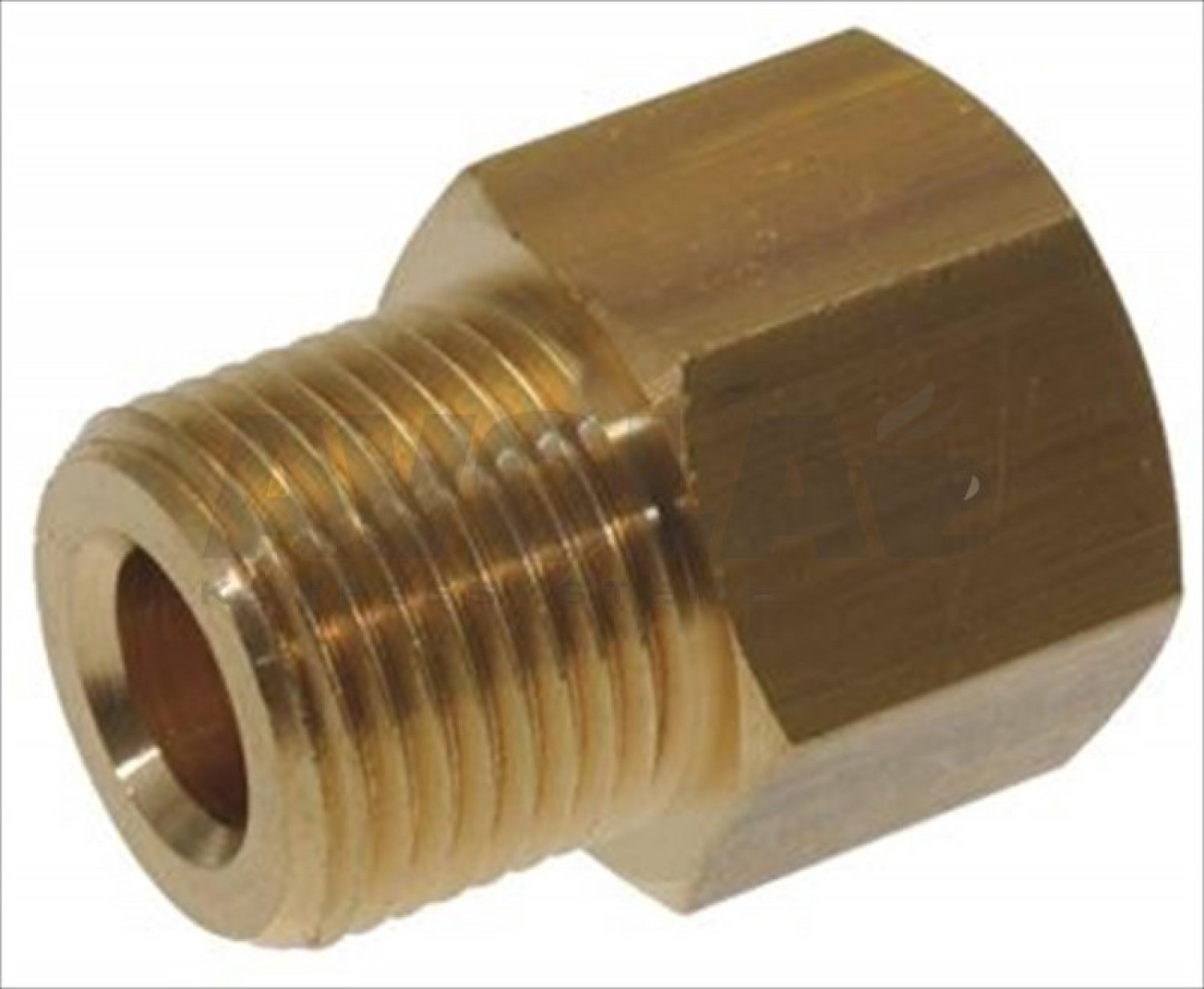

40raccordo 3 8m x 3 8f con sede filtro8165387
RACCORDO 3/8M x 3/8F CON SEDE FILTRO
7,31 €

excl. Shipping costs
Delivery time
is determined

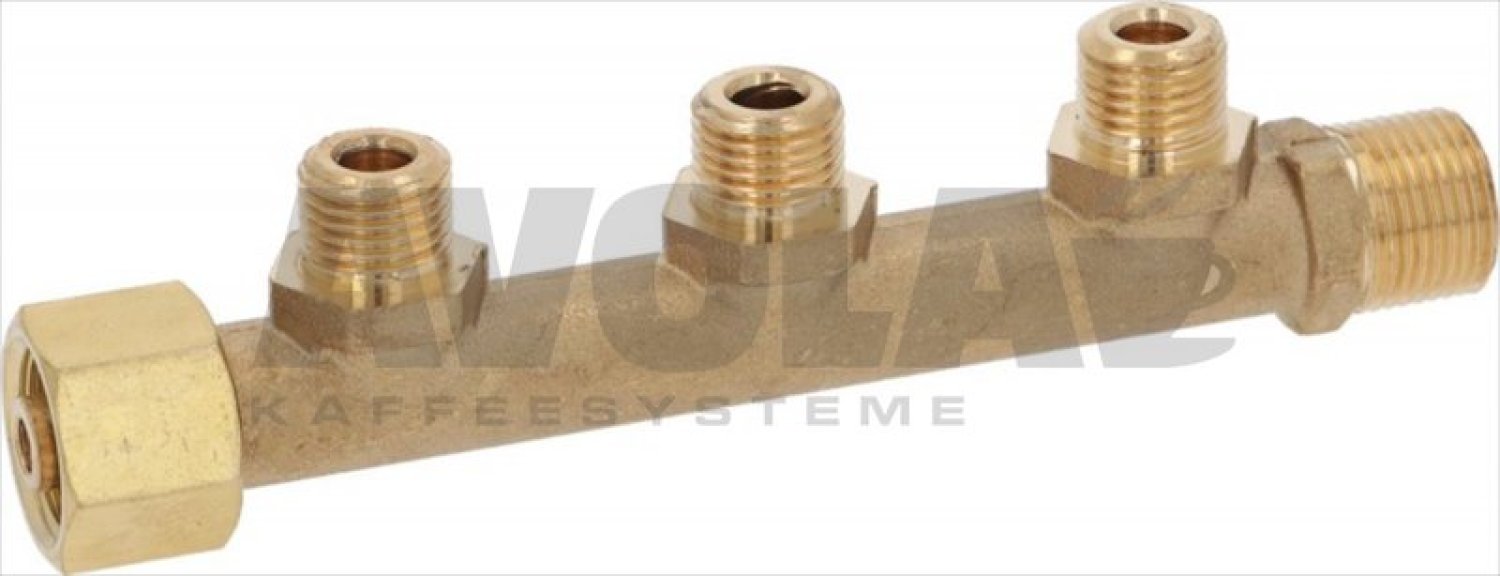

42tubazione distribuzione 2 3 4 gruppi8062731
TUBAZIONE DISTRIBUZIONE 2-3-4 GRUPPI
39,00 €

excl. Shipping costs
Delivery time
is determined
44brass nut o 3 88005663
BRASS NUT ø 3/8
2,90 €

excl. Shipping costs
immediately available, 9 available
45brass washer8001674
BRASS WASHER
1,24 €

excl. Shipping costs
immediately available, 18 available
482 way solenoid valve parker 230v 50 60hz8000985
2-WAY SOLENOID VALVE PARKER 230V 50/60Hz
65,72 €
65,72 €

excl. Shipping costs
Delivery time
is determined

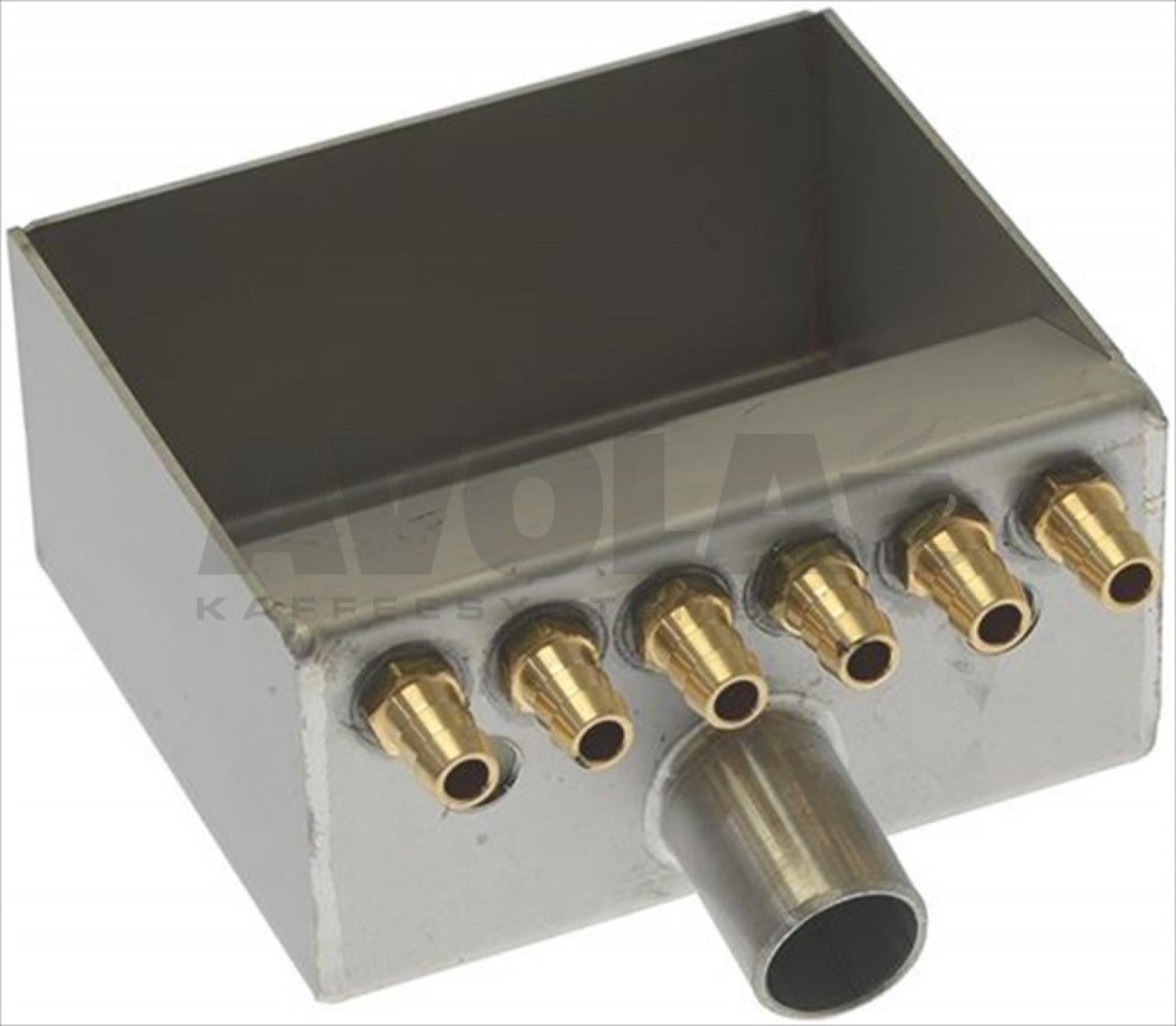

52drain tub8062730
DRAIN TUB
134,80 €

excl. Shipping costs
Delivery time 4-6 weeks
58gicar volumetric flowmeter 1 48006953
GICAR VOLUMETRIC FLOWMETER 1/4
39,51 €

excl. Shipping costs
immediately available, 1 available
58flowmeter durchflussmesser gicar 1 4 quot led nicht mehr lieferbar 8062778
FLOWMETER DURCHFLUSSMESSER GICAR 1/4 " LED (nicht mehr lieferbar)
This article is no longer available
59expansion and non return valve8007100
EXPANSION AND NON-RETURN VALVE
39,47 €

excl. Shipping costs
immediately available, 3 available

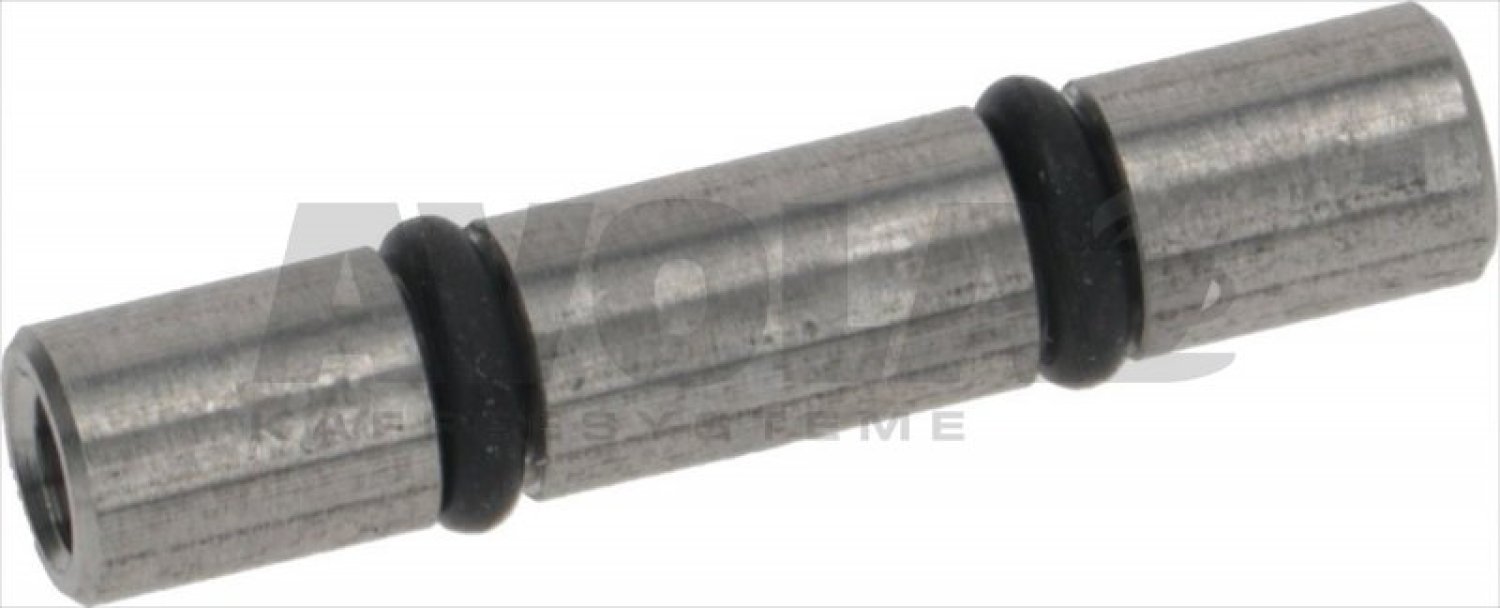

61duese edelstahl o 6x31 mm locho 0 5 mm8104243
DÜSE EDELSTAHL ø 6x31 mm LOCHø 0,5 mm
33,53 €

excl. Shipping costs
Delivery time
is determined

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
