Astoria CMA

ASTORIA BREW GROUP DIVINA GLORIA PERLA BRAVA RAPALLO SIBILLA

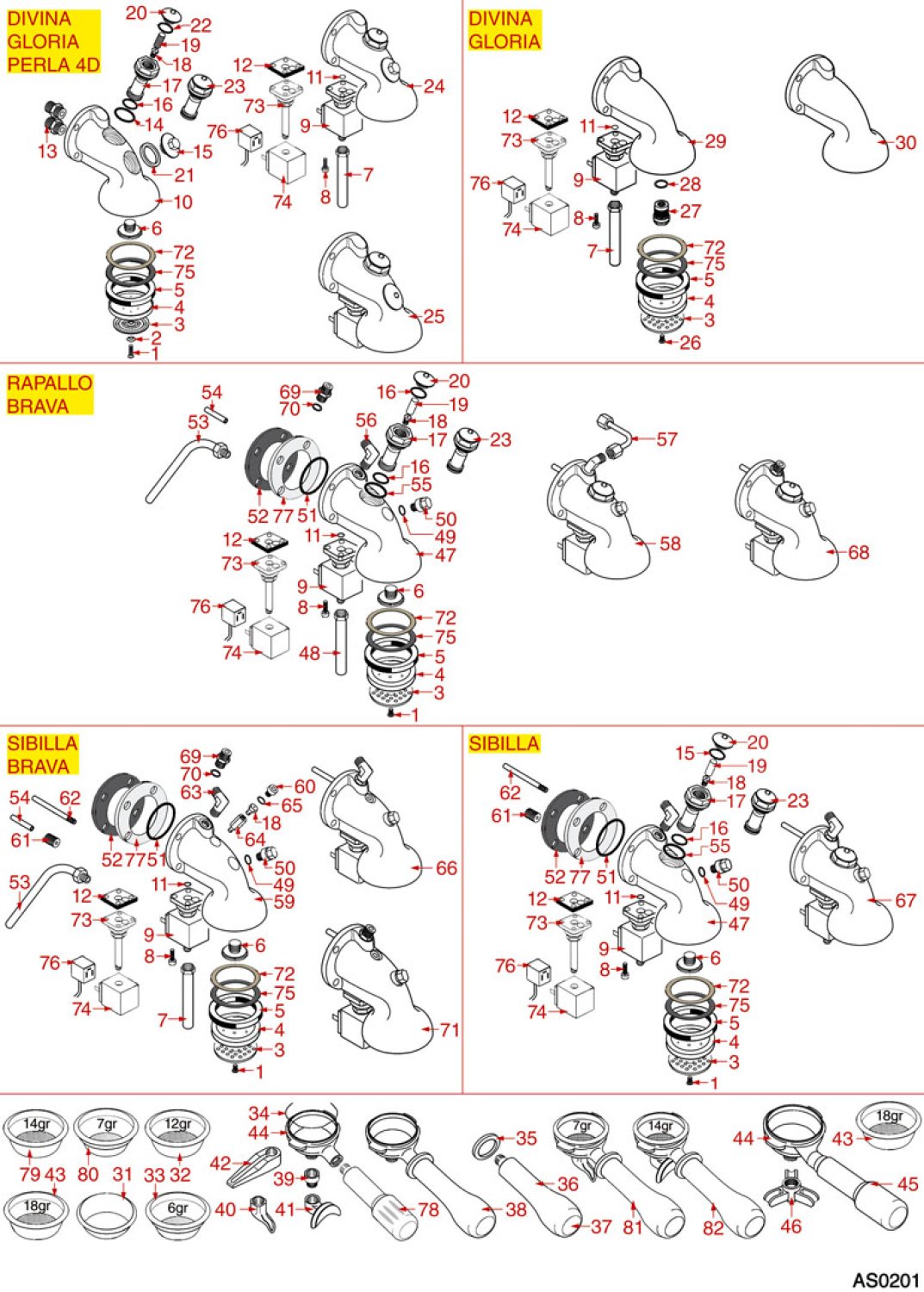

Drawing number 8038582

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
1showerscrew m5x208007250
SHOWERSCREW M5x20
1,25 €

excl. Shipping costs
immediately available
2shaped s steel washer8036652
SHAPED S/STEEL WASHER
2,40 €

excl. Shipping costs
Delivery time 4-6 weeks
3shower 51 50 mm8000552
SHOWER 51,50 MM
4,56 €

excl. Shipping costs
immediately available
4shower holder diffuser8000639
SHOWER HOLDER DIFFUSER
26,70 €

excl. Shipping costs
immediately available, 3 available
5filter holder gasket o 72x56x8 mm8001817
FILTER HOLDER GASKET ø 72x56x8 mm
3,89 €

excl. Shipping costs
immediately available, 8 available
5filter holder gasket8001865
FILTER HOLDER GASKET
5,95 €

excl. Shipping costs
immediately available
5filter holder gasket o 72x56x8 mm8001817
FILTER HOLDER GASKET ø 72x56x8 mm
3,89 €

excl. Shipping costs
immediately available, 8 available
6brew group spray nozzle8006977
BREW GROUP SPRAY NOZZLE
33,44 €

excl. Shipping costs
Delivery time
is determined
7drain pipe8006904
DRAIN PIPE
16,70 €

excl. Shipping costs
immediately available, 1 available
7astoria cma auslaufrohr verchromt o1 8 zoll x 79 mm8081105
Astoria Cma Auslaufrohr verchromt Ø1/8 Zoll x 79 mm
17,85 €

excl. Shipping costs
immediately available, 2 available
8schraube zylinderkopf innensechskant vollgewinde edelstahl m4x10 a2 70 din 9128061180
Schraube Zylinderkopf Innensechskant Vollgewinde Edelstahl M4x10 A2-70 Din 912
0,67 €

excl. Shipping costs
immediately available
93 way solenoid valve lucifer 240v 50hz8000955
3-WAY SOLENOID VALVE LUCIFER 240V 50Hz
52,36 €

excl. Shipping costs
immediately available, 10 available
93 way solenoid valve parker 230v 50 60hz8000960
3-WAY SOLENOID VALVE PARKER 230V 50/60Hz
53,55 €

excl. Shipping costs
immediately available, 5 available
11red silicone o ring r5 gasket8001809
RED SILICONE O-RING R5 GASKET
1,34 €

excl. Shipping costs
immediately available
11o ring 02025 viton8001810
O-RING 02025 VITON
0,87 €

excl. Shipping costs
immediately available
12magnetventil flat ptfe gasket8001651
Magnetventil FLAT PTFE GASKET
12,48 €

excl. Shipping costs
immediately available, 5 available
13fitting8005711
FITTING
3,53 €

excl. Shipping costs
immediately available
14o ring gasket m 0250 40 nbr8001949
O-RING GASKET M 0250-40 NBR
1,77 €

excl. Shipping costs
immediately available, 18 available

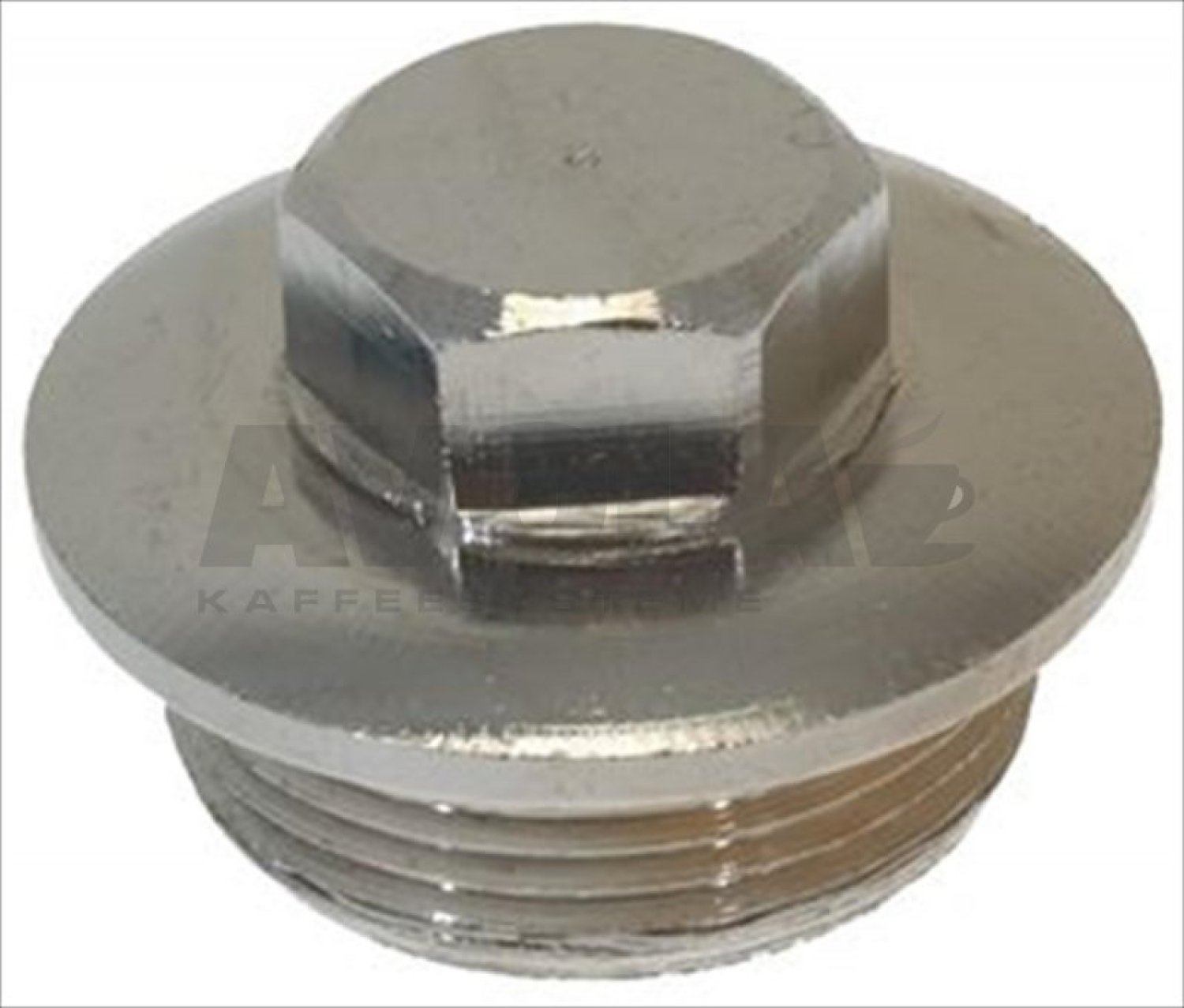

15cap8006401
CAP
22,61 €

excl. Shipping costs
Delivery time
is determined
16o ring 0123 epdm8014780
O-RING 0123 EPDM
1,68 €

excl. Shipping costs
immediately available, 13 available
17upper chromium plated sleeve8000147
UPPER CHROMIUM-PLATED SLEEVE
65,80 €

excl. Shipping costs
Delivery time 4-6 weeks
18nozzle m5x1 hole8006962
NOZZLE M5x1 HOLE
10,31 €

excl. Shipping costs
immediately available, 4 available
19water filter o 8 5x22 mm8001115
Water filter ø 8,5x22 mm
1,79 €

excl. Shipping costs
immediately available
20cap o 18 mm8006402
CAP ø 18 mm
14,01 €

excl. Shipping costs
Delivery time
is determined

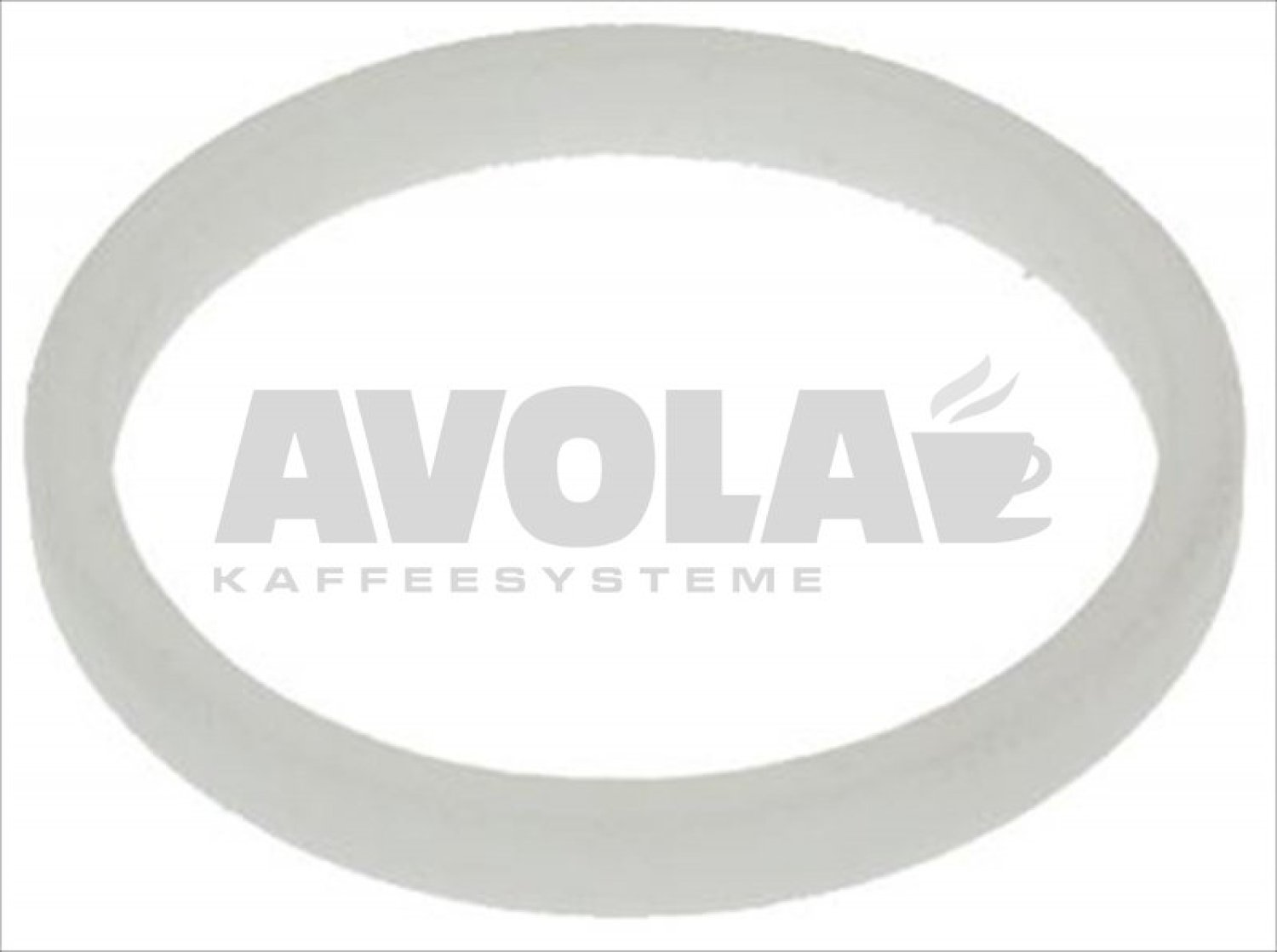

21ptfe flat gasket o 33x28x4 mm8001947
PTFE FLAT GASKET ø 33x28x4 mm
7,82 €

excl. Shipping costs
immediately available, 8 available

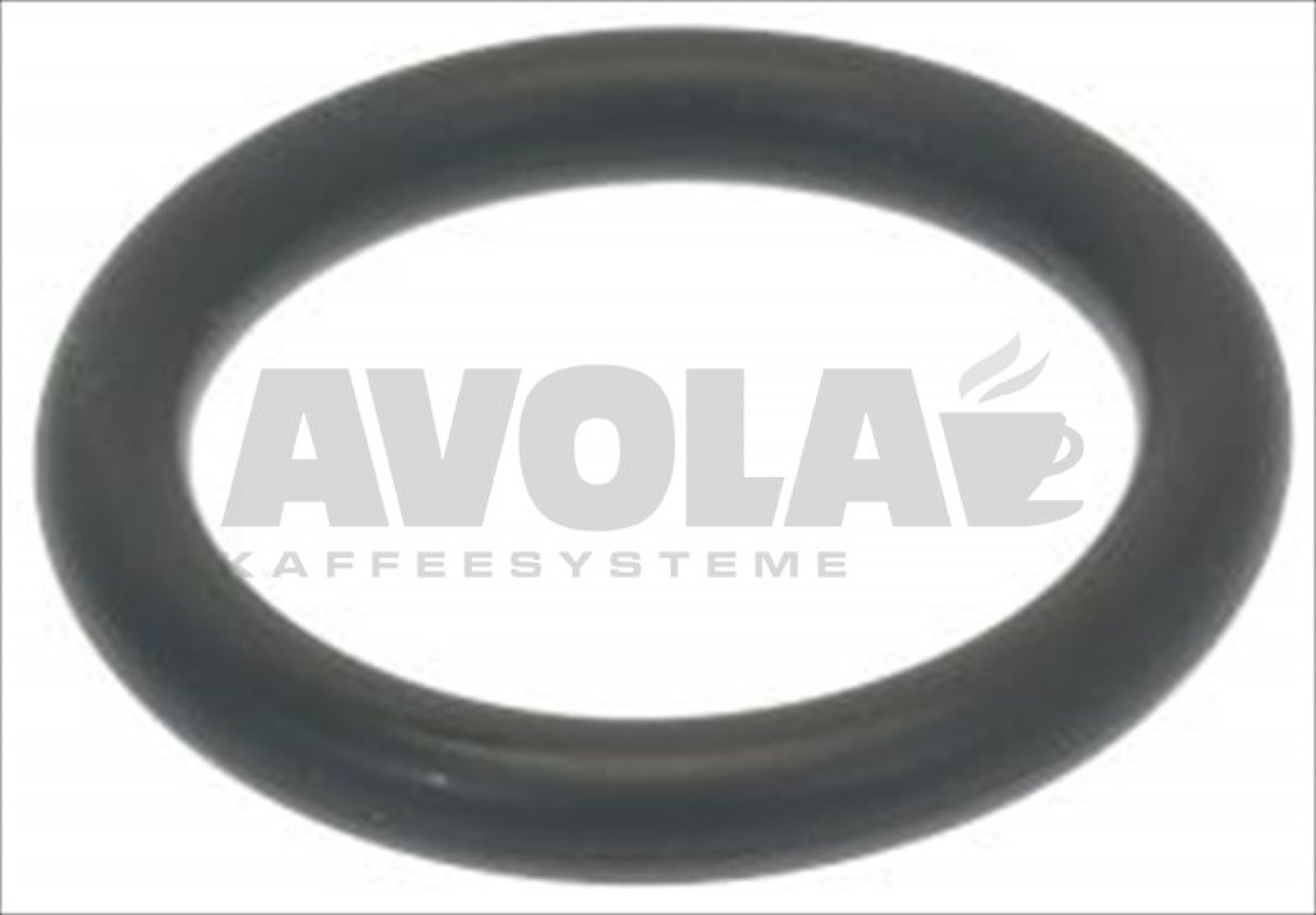

22o ring gasket m 0170 30 nbr8001950
O-RING GASKET M 0170-30 NBR
2,32 €

excl. Shipping costs
immediately available, 6 available
26countersunk head screws with shell m5x128007318
COUNTERSUNK HEAD SCREWS WITH SHELL M5x12
0,62 €

excl. Shipping costs
immediately available

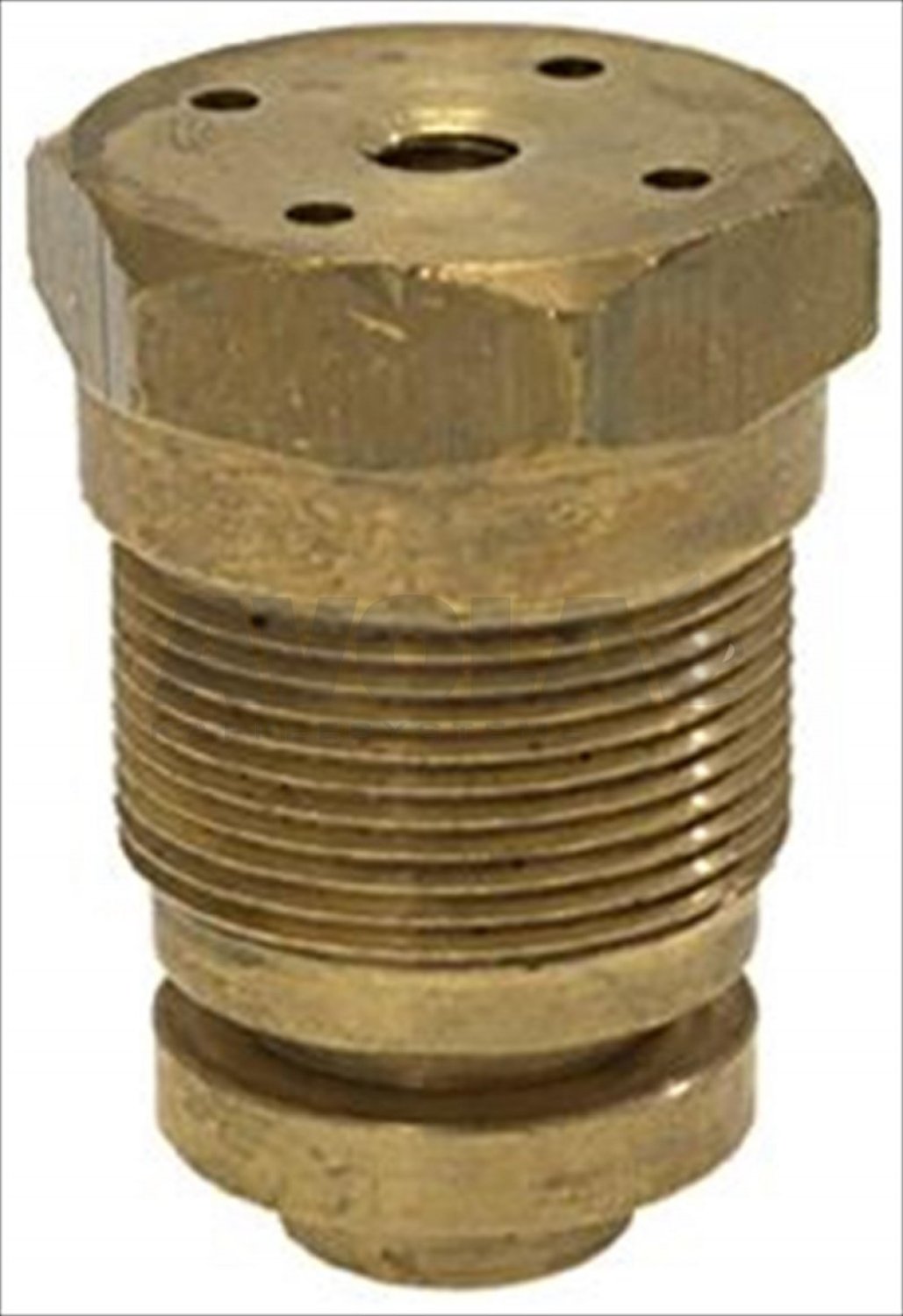

27brew group spray nozzle m20x1 58006978
BREW GROUP SPRAY NOZZLE M20x1.5
49,90 €

excl. Shipping costs
Delivery time
is determined

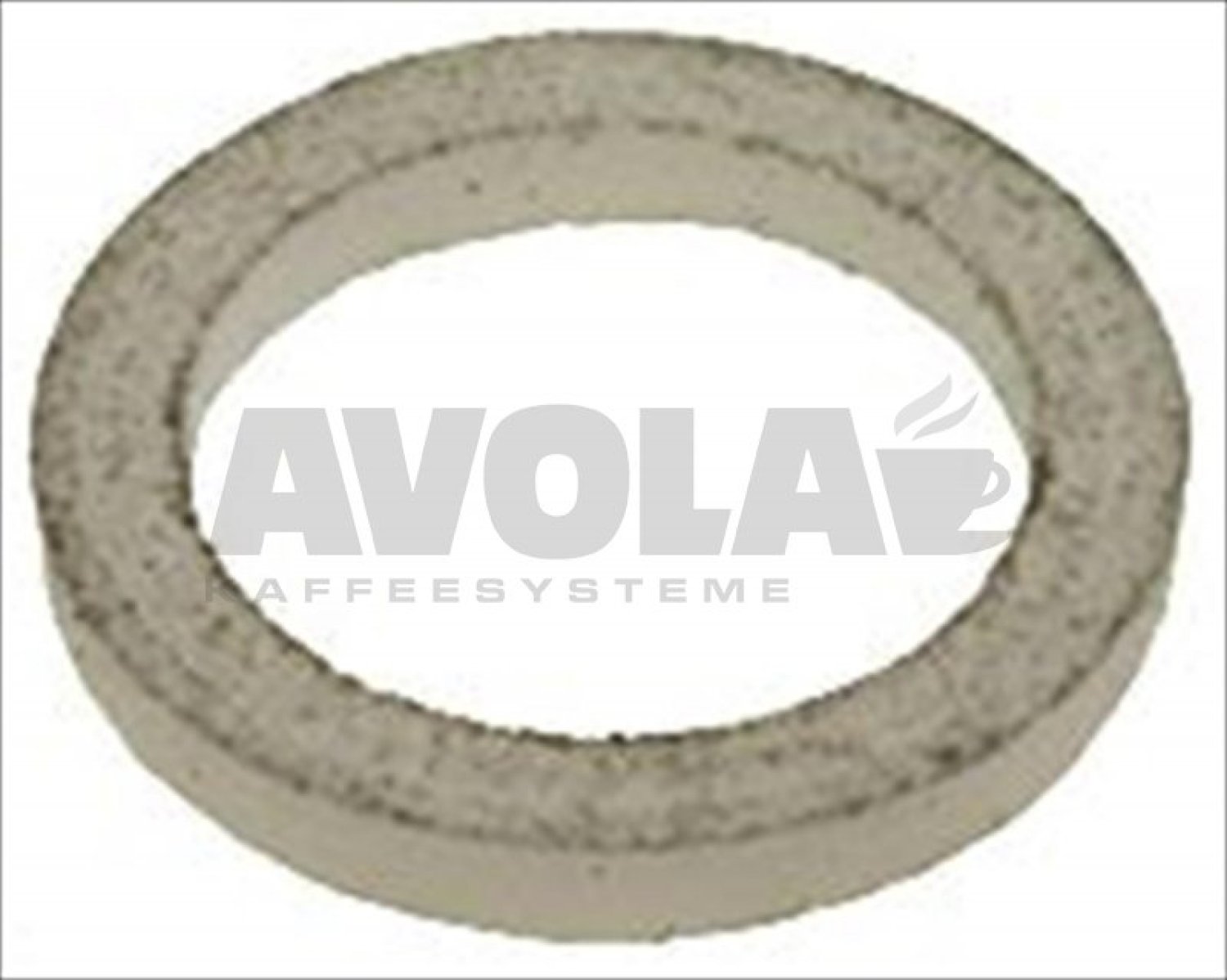

28ptfe flat gasket o15x11x28038231
PTFE FLAT GASKET Ø15x11x2
2,48 €

excl. Shipping costs
immediately available, 11 available

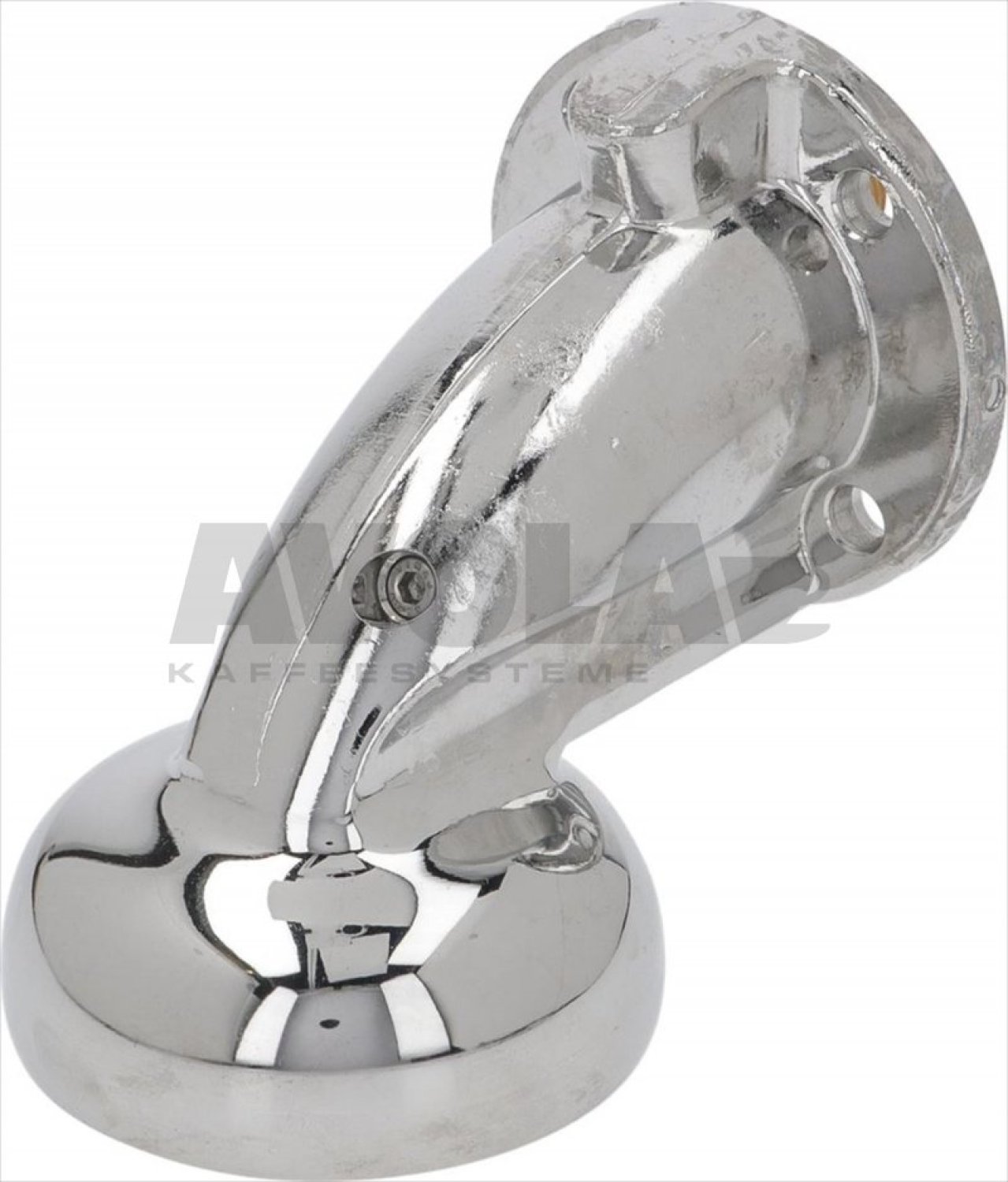

30cts neutral brew group8002267
CTS NEUTRAL BREW GROUP
416,19 €

excl. Shipping costs
Delivery time 4-6 weeks
31blind filter o58mm8001103
BLIND FILTER Ø58mm
2,56 €

excl. Shipping costs
immediately available
322 cup filter 12 grams8001077
2-CUP FILTER 12 GRAMS
5,41 €

excl. Shipping costs
immediately available, 10 available
331 cup filter 6 g8001076
1 CUP FILTER 6 g
5,41 €

excl. Shipping costs
immediately available, 6 available
34s steel filter locking spring8003542
S/STEEL FILTER LOCKING SPRING
1,62 €

excl. Shipping costs
immediately available
34filter blocking spring o 1 00 mm8003622
FILTER BLOCKING SPRING ø 1,00 mm
1,05 €

excl. Shipping costs
immediately available
35burn preventing ring for handle8001951
BURN PREVENTING RING FOR HANDLE
0,81 €

excl. Shipping costs
immediately available, 8 available
36black filter holder handle m128003250
BLACK FILTER HOLDER HANDLE M12
14,85 €

excl. Shipping costs
immediately available, 1 available
37chrome plated cap for filter holder knob8003336
CHROME PLATED CAP FOR FILTER HOLDER KNOB
3,81 €

excl. Shipping costs
immediately available, 7 available
38filter holder assy cma astoria8001174
FILTER HOLDER ASSY CMA ASTORIA
55,83 €

excl. Shipping costs
immediately available, 5 available
38bottomless filter holder astoria8001194
BOTTOMLESS FILTER HOLDER ASTORIA
49,71 €

excl. Shipping costs
Delivery time
is determined
39chrome plated spout extension8000050
CHROME-PLATED SPOUT EXTENSION
7,39 €

excl. Shipping costs
immediately available, 13 available
40single spout o 3 88000110
SINGLE SPOUT ø 3/8
6,06 €

excl. Shipping costs
immediately available, 12 available
41double spout o 3 8 rime8000115
Double Spout ø 3/8″
5,95 €

excl. Shipping costs
immediately available, 6 available
432 cups filter 18 21gr o 70x28 mm8001104
2 Cups Filter 18/21gr ø 70x28 mm
4,46 €

excl. Shipping costs
immediately available, 5 available
44filter holder coffee machines8001167
FILTER HOLDER COFFEE MACHINES
18,80 €

excl. Shipping costs
immediately available, 1 available
45filter holder handle m128003349
FILTER HOLDER HANDLE M12
7,79 €

excl. Shipping costs
immediately available, 3 available
46triple spout o 3 88000129
TRIPLE SPOUT ø 3/8
10,01 €

excl. Shipping costs
immediately available, 1 available
49o ring 0119 epdm8001650
O-RING 0119 EPDM
1,06 €

excl. Shipping costs
immediately available
50cap8006399
CAP
25,13 €

excl. Shipping costs
Delivery time
is determined
51o ring 04187 viton8001476
O-RING 04187 VITON
2,69 €

excl. Shipping costs
immediately available
52coffee group gasket8001679
COFFEE GROUP GASKET
6,27 €

excl. Shipping costs
immediately available, 6 available
53suction pipe8006559
SUCTION PIPE
19,14 €

excl. Shipping costs
immediately available, 2 available
54suction pipe m88005125
SUCTION PIPE M8
15,99 €

excl. Shipping costs
immediately available, 1 available
55o ring gasket m 0250 40 nbr8001949
O-RING GASKET M 0250-40 NBR
1,77 €

excl. Shipping costs
immediately available, 18 available
60cap8006400
CAP
4,45 €

excl. Shipping costs
immediately available, 5 available

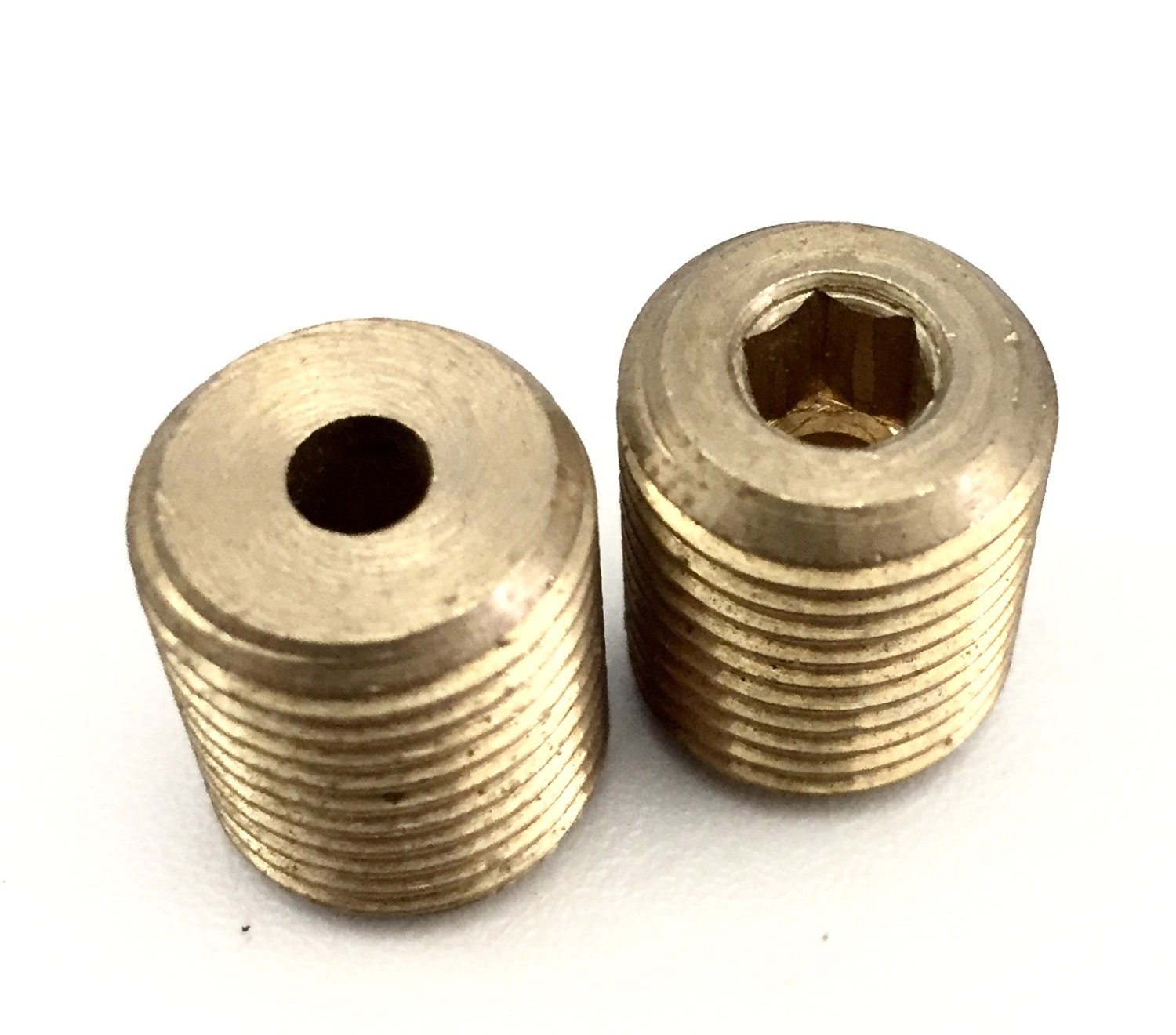

61astoria injektor reduzierstueck 1 4 o4mm8037648
Astoria Injektor Reduzierstück 1/4 Ø4mm
7,14 €

excl. Shipping costs
immediately available, 2 available
62suction pipe m88006622
SUCTION PIPE M8
54,99 €

excl. Shipping costs
Delivery time 4-6 weeks
63elbow fitting8005695
ELBOW FITTING
13,11 €

excl. Shipping costs
Delivery time 4-6 weeks
64jet holder for jet m58006963
JET HOLDER FOR JET M5
15,74 €

excl. Shipping costs
Delivery time 4-6 weeks
65o ring 02056 epdm8001503
O-RING 02056 EPDM
1,09 €

excl. Shipping costs
immediately available

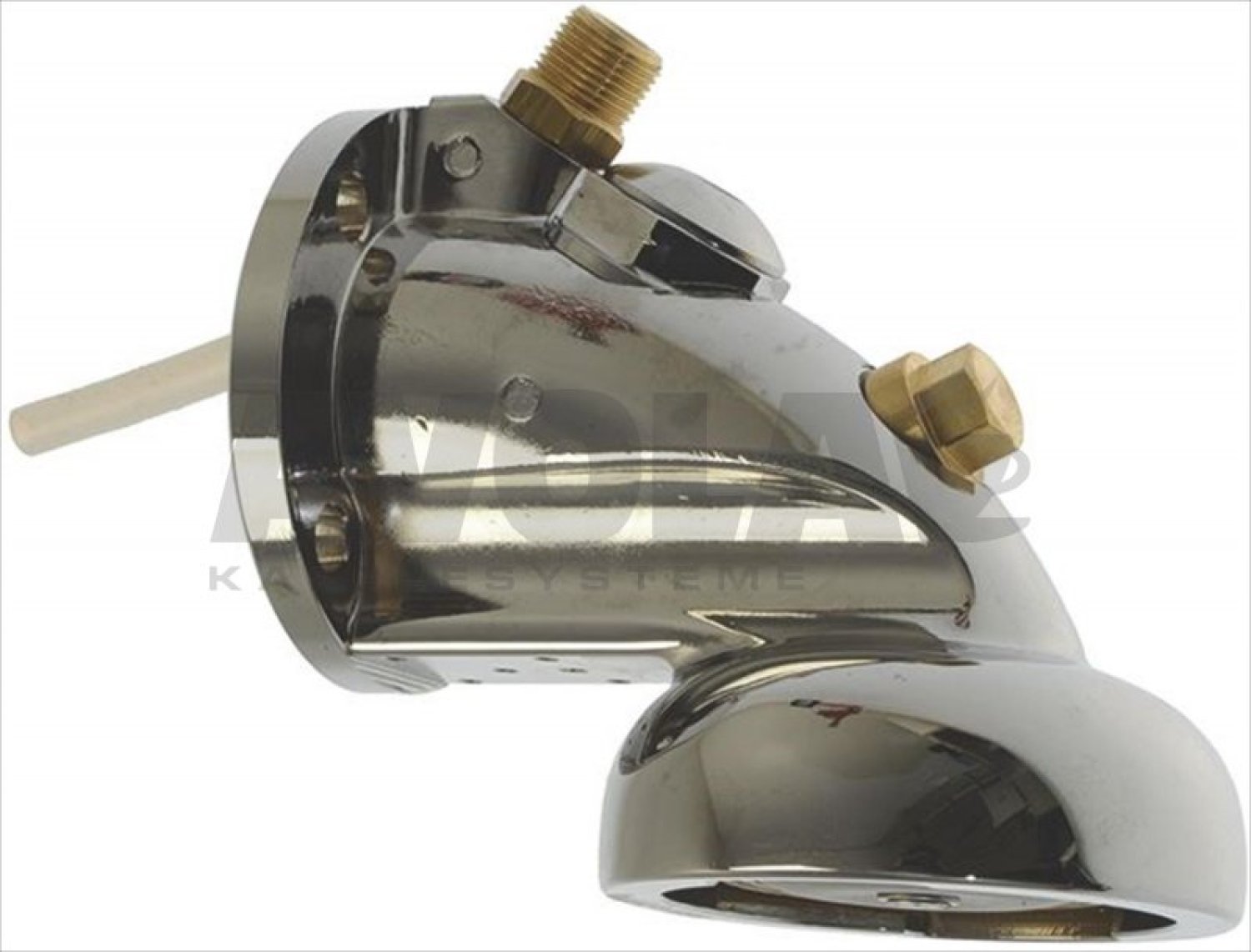

68extractable delivery group8002266
EXTRACTABLE DELIVERY GROUP
Price on request

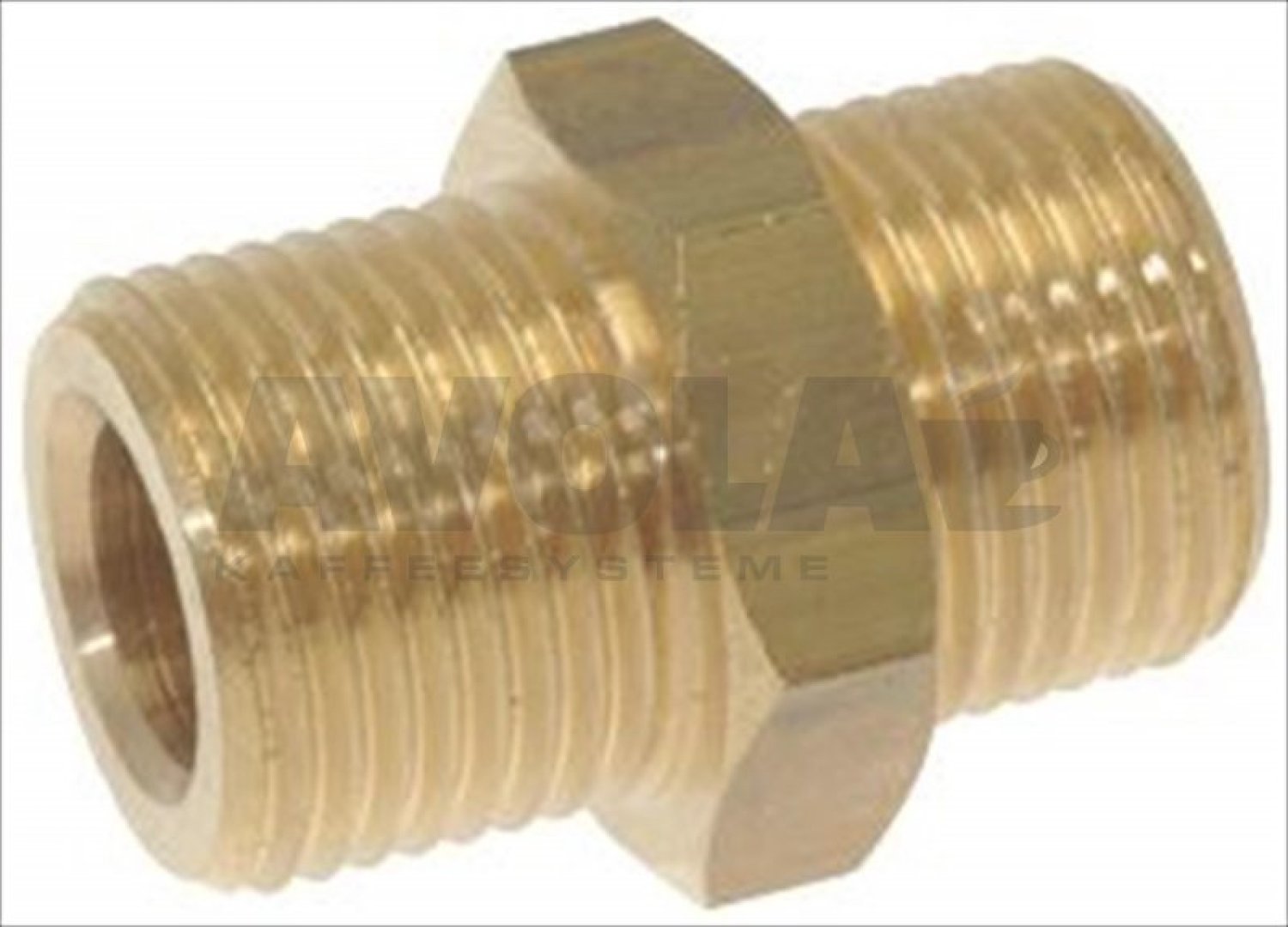

69coupling8005781
COUPLING
18,28 €

excl. Shipping costs
immediately available, 1 available
70copper flat gasket o 18x14x1 5 mm8001814
COPPER FLAT GASKET ø 18x14x1,5 mm
1,19 €

excl. Shipping costs
immediately available
72paper seal o 66x58x0 8 mm8002174
PAPER SEAL ø 66x58x0,8 mm
0,51 €

excl. Shipping costs
immediately available
72paper seal o 70x57x0 8 mm8002175
PAPER SEAL ø 70x57x0,8 mm
0,39 €

excl. Shipping costs
immediately available
733 way mechanical component lucifer8000959
3-WAY MECHANICAL COMPONENT LUCIFER
39,77 €

excl. Shipping costs
immediately available, 6 available
733 way mechanical component parker8000962
3-WAY MECHANICAL COMPONENT PARKER
42,72 €

excl. Shipping costs
immediately available, 13 available
74coil lucifer parker 220 240v 9w 50hz8000957
COIL LUCIFER/PARKER 220/240V 9W 50Hz
19,92 €

excl. Shipping costs
immediately available, 7 available
74coil parker zb09 9w 220 240v 50 60hz8012418
COIL PARKER ZB09 9W 220/240V 50/60Hz
20,74 €

excl. Shipping costs
immediately available, 14 available
75rubber shim8002169
RUBBER SHIM
1,17 €

excl. Shipping costs
immediately available
76female large connector8012420
FEMALE LARGE CONNECTOR
2,94 €

excl. Shipping costs
immediately available, 7 available
77coffee group gasket o 88x40x2 mm teflon8002156
COFFEE GROUP GASKET ø 88x40x2 mm Teflon
8,21 €

excl. Shipping costs
immediately available, 3 available
77coffee group gasket o 88x40x2 mm8007687
COFFEE GROUP GASKET ø 88x40x2 mm
10,41 €

excl. Shipping costs
Delivery time
is determined
78filter knob m128003171
FILTER KNOB M12
10,16 €

excl. Shipping costs
Delivery time
is determined
792 cup filter 14 grams8001101
2-CUP FILTER 14 GRAMS
7,02 €

excl. Shipping costs
immediately available
801 cup filter 7 g8001120
1 CUP FILTER 7 g
6,50 €

excl. Shipping costs
immediately available, 12 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
