Astoria CMA

ASTORIA BREW GROUP ADRIA ARGENTA BRAVA DENISE DORA LISA PRATIC VANIA

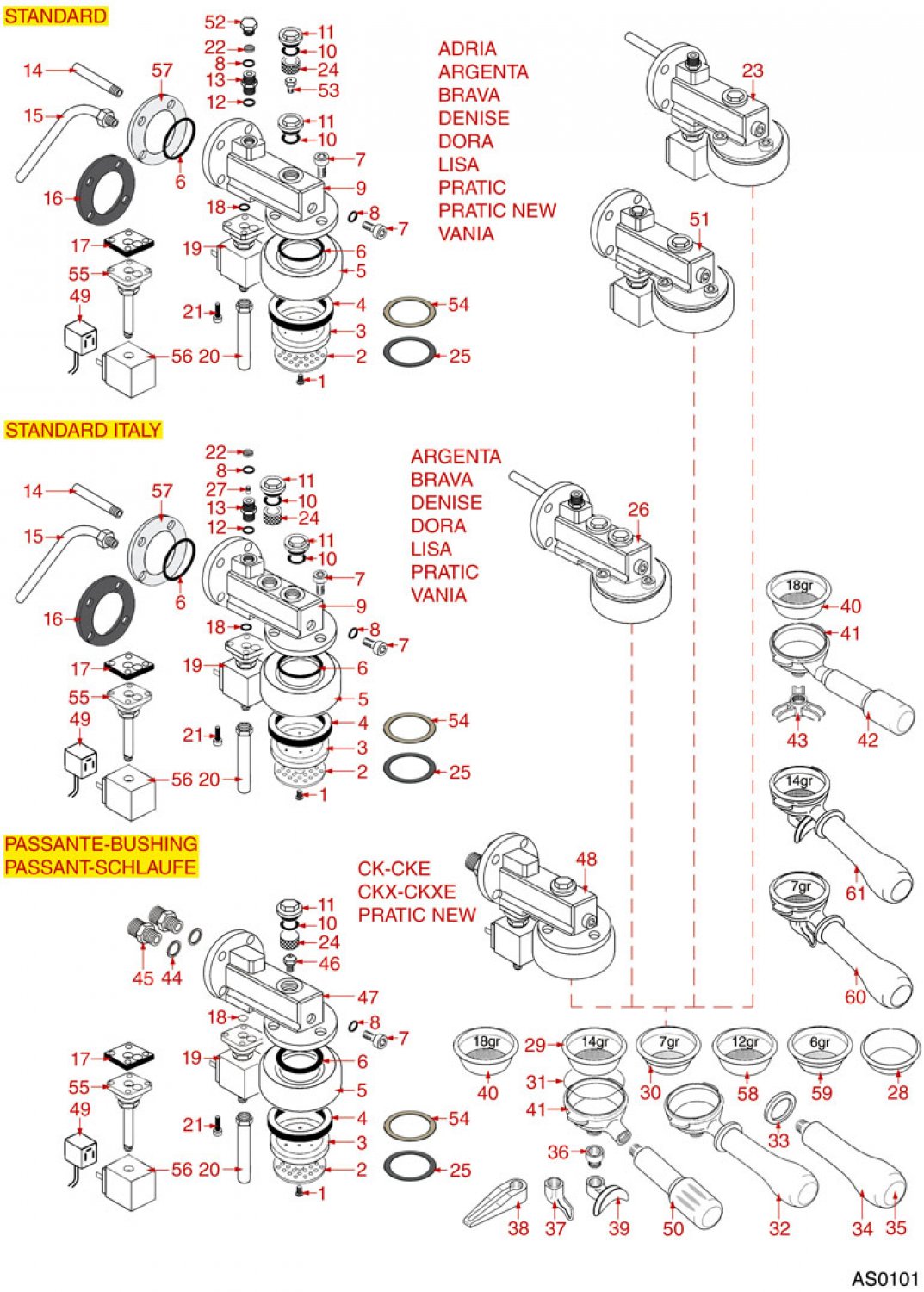

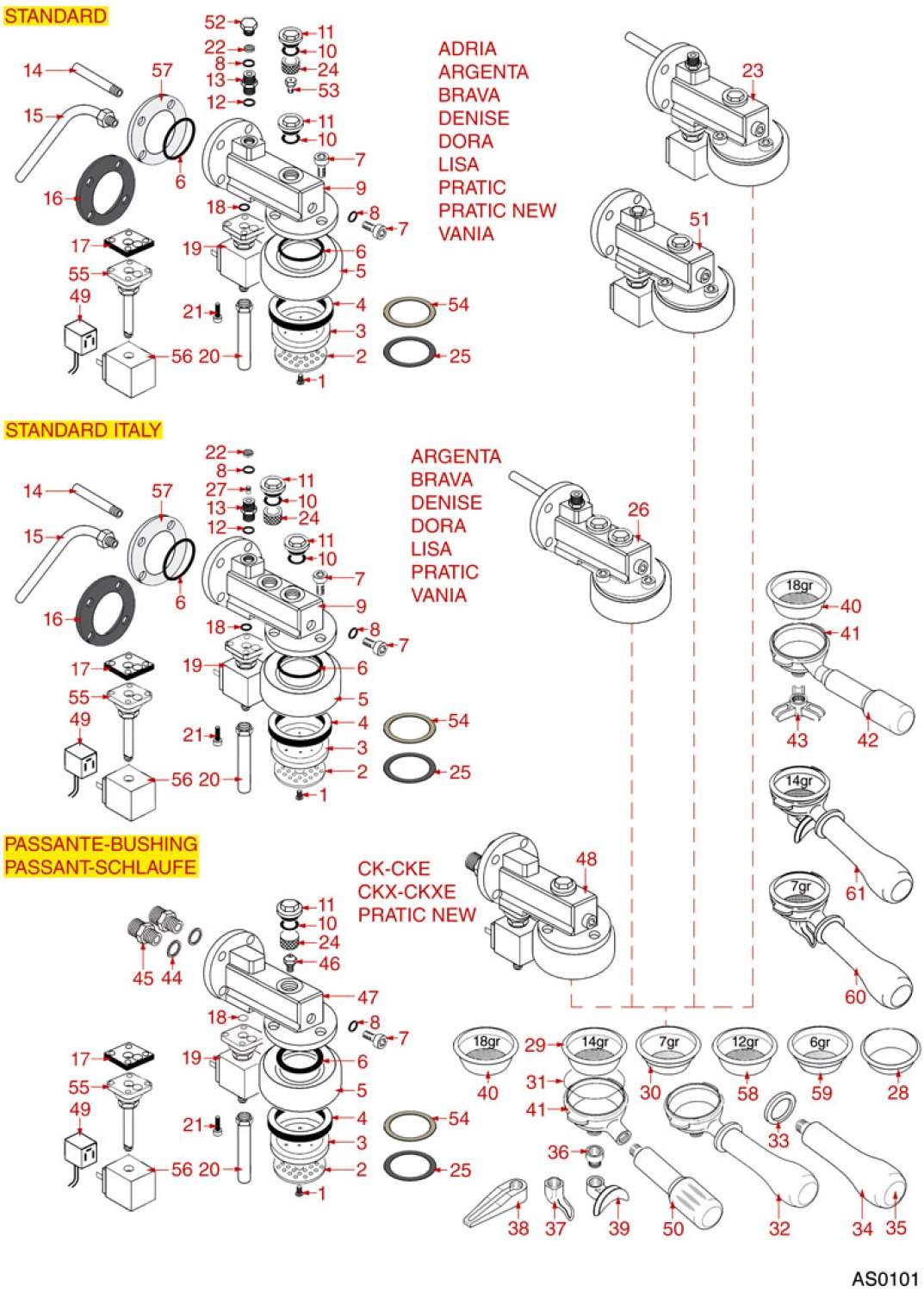

Drawing number 8038574

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
2shower 51 50 mm8000552
SHOWER 51,50 MM
4,56 €

excl. Shipping costs
immediately available

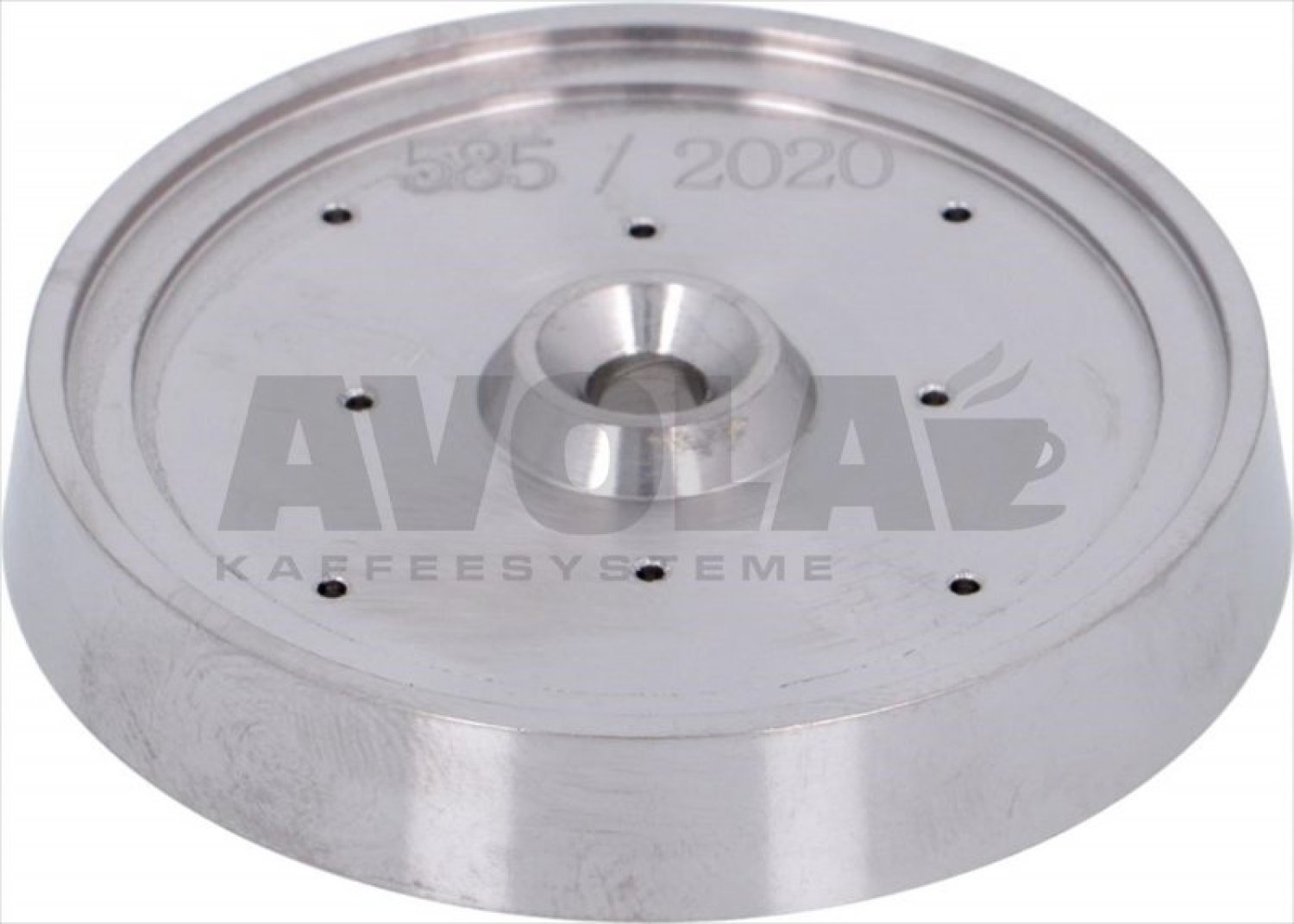

3shower holder diffuser8000639
SHOWER HOLDER DIFFUSER
26,70 €

excl. Shipping costs
immediately available, 3 available
4filter holder gasket8001865
FILTER HOLDER GASKET
5,95 €

excl. Shipping costs
immediately available
4filter holder gasket o 72x56x8 mm8001817
FILTER HOLDER GASKET ø 72x56x8 mm
3,89 €

excl. Shipping costs
immediately available, 8 available

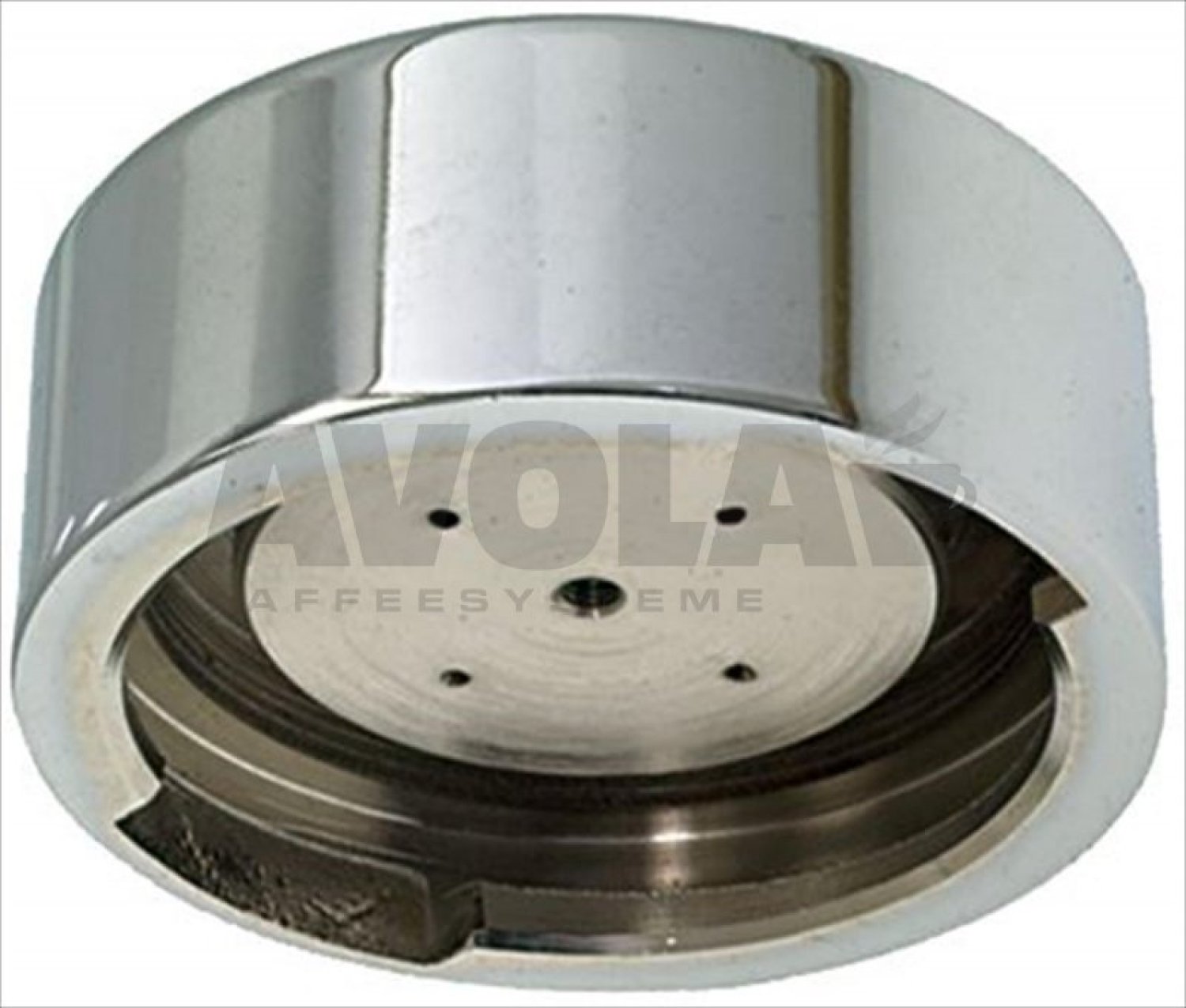

5filter holder coupling8000010
FILTER HOLDER COUPLING
199,74 €

excl. Shipping costs
Delivery time 4-6 weeks
6o ring 04187 viton8001476
O-RING 04187 VITON
2,69 €

excl. Shipping costs
immediately available

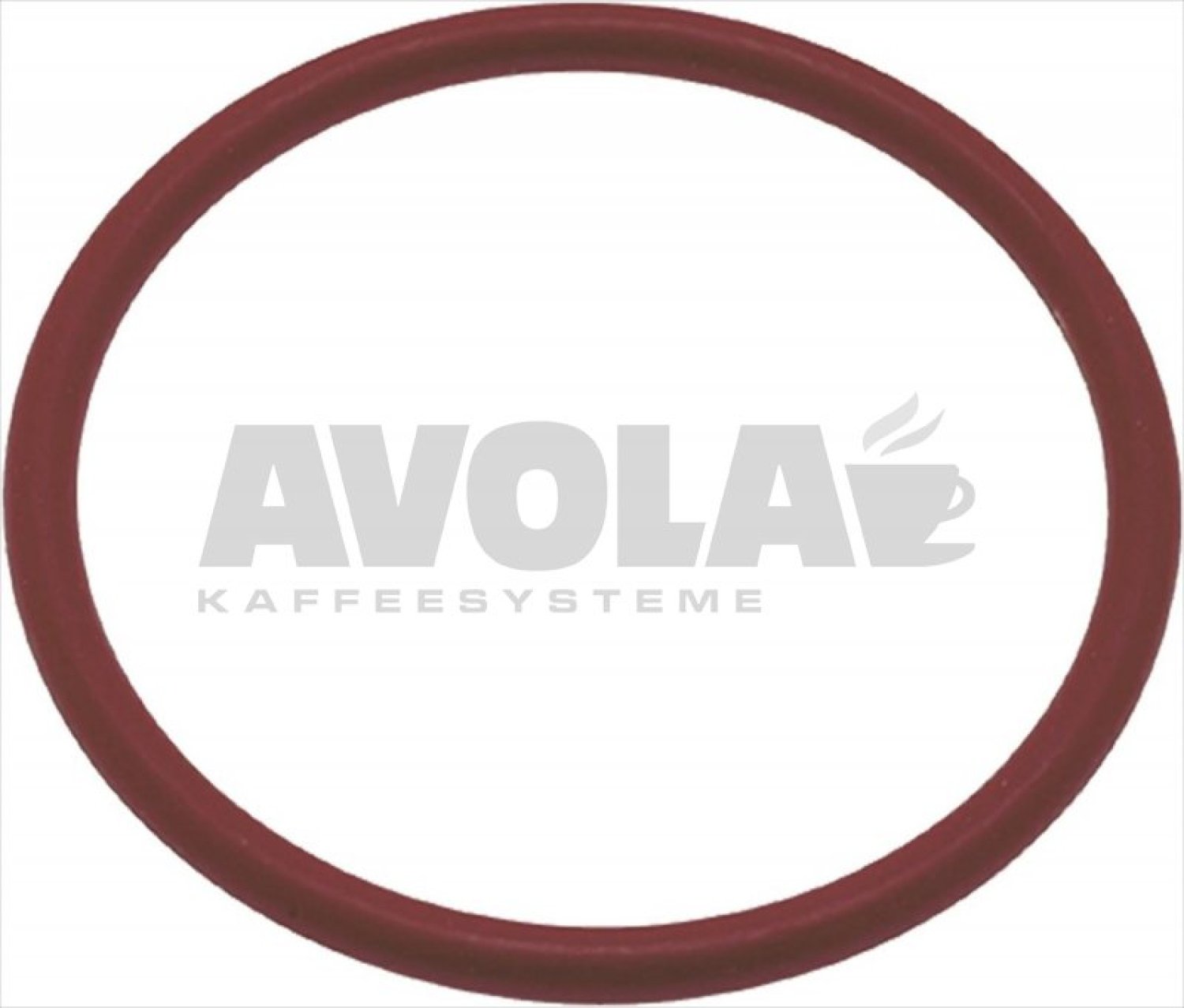

6o ring 0158 mm silicone8001689
O-RING 0158 mm SILICONE
1,50 €

excl. Shipping costs
immediately available
7cylinder head screw m5x108001294
CYLINDER HEAD SCREW M5x10
1,01 €

excl. Shipping costs
immediately available
8copper flat gasket o 8 5x5x1 mm8001948
COPPER FLAT GASKET ø 8,5x5x1 mm
0,84 €

excl. Shipping costs
immediately available, 19 available
9exchanger brew group complete8002268

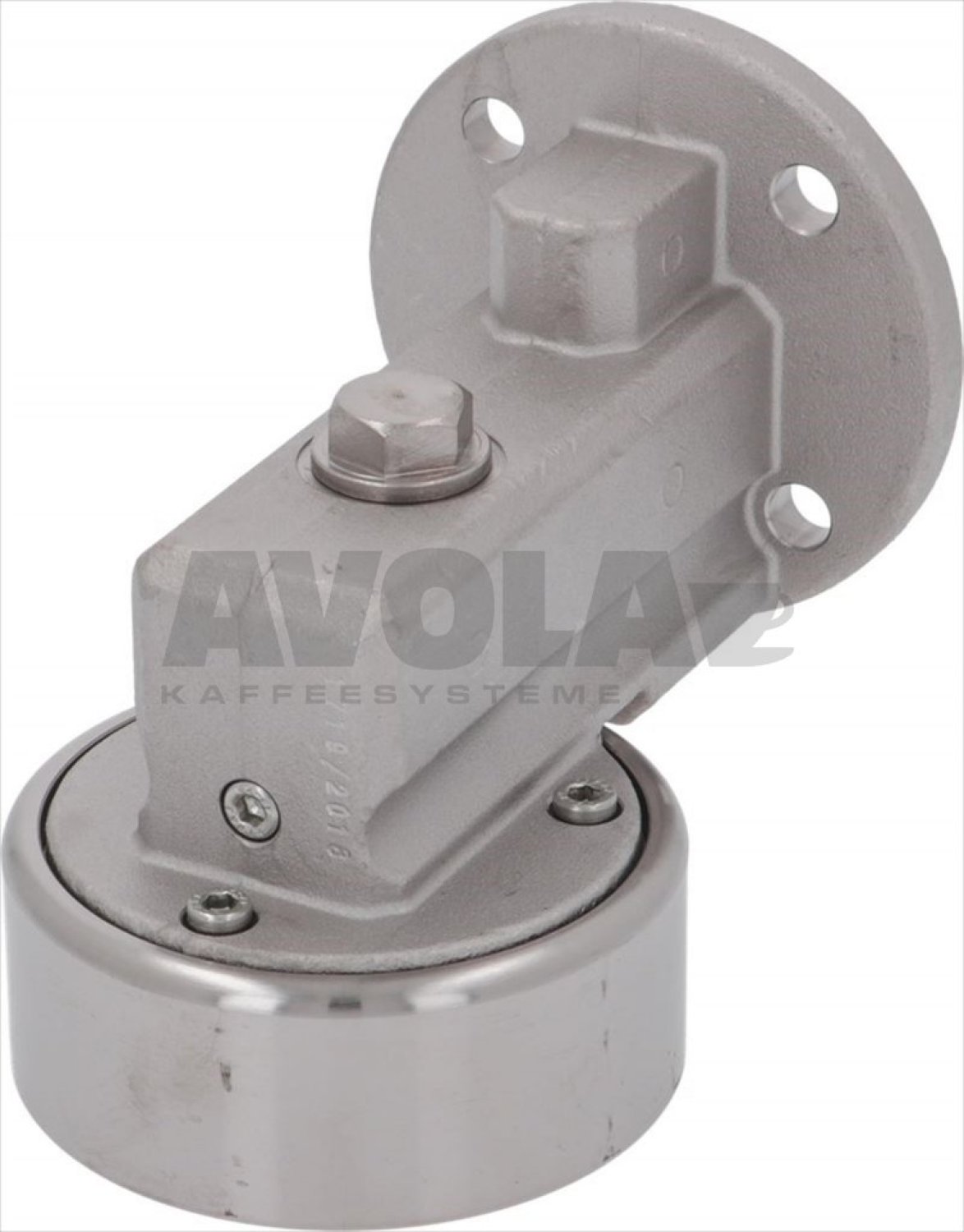

EXCHANGER BREW GROUP COMPLETE
398,86 €

excl. Shipping costs
Delivery time 4-6 weeks
10o ring 0119 epdm8001650
O-RING 0119 EPDM
1,06 €

excl. Shipping costs
immediately available
11cap o 18 mm8006374
CAP ø 18 mm
7,09 €

excl. Shipping costs
immediately available, 3 available
12copper flat gasket o 18x14x1 5 mm8001814
COPPER FLAT GASKET ø 18x14x1,5 mm
1,19 €

excl. Shipping costs
immediately available
13fitting8005720
FITTING
3,50 €

excl. Shipping costs
immediately available, 11 available
14suction pipe m88005125

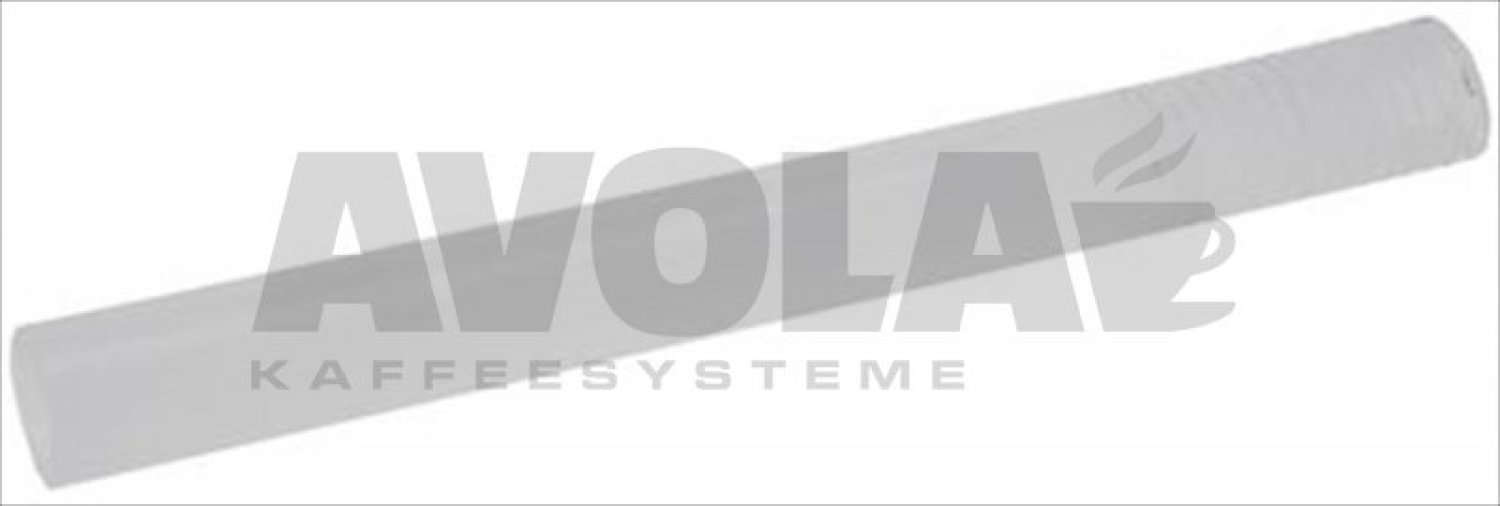

SUCTION PIPE M8
15,99 €

excl. Shipping costs
immediately available, 1 available
15suction pipe8006559

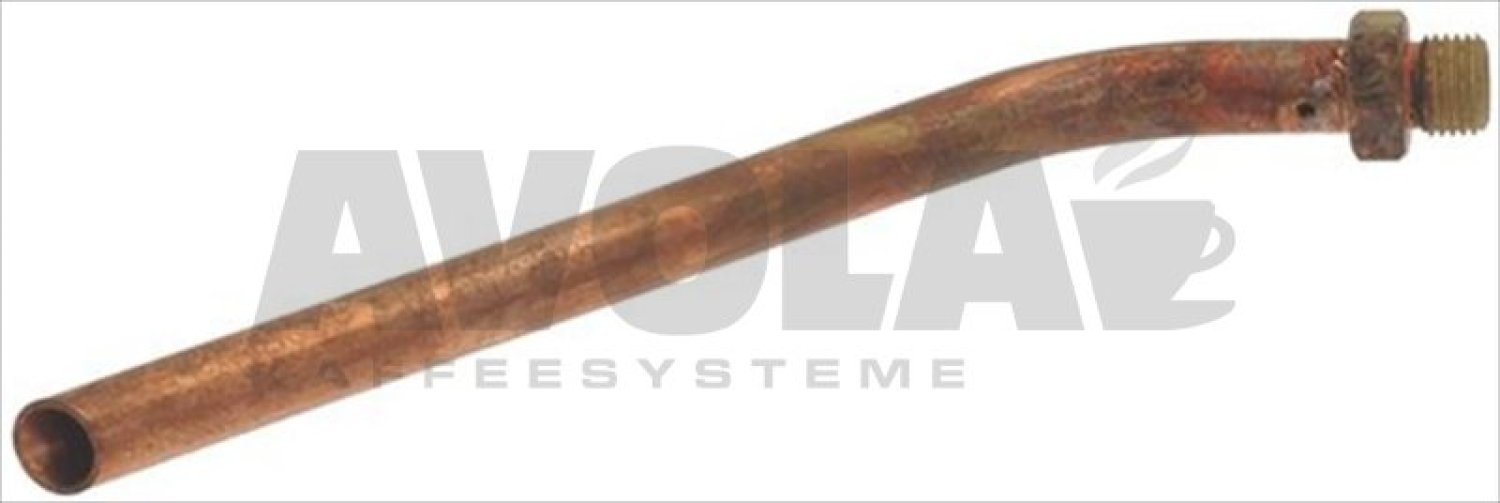

SUCTION PIPE
19,14 €

excl. Shipping costs
immediately available, 2 available
16coffee group gasket8001679
COFFEE GROUP GASKET
6,27 €

excl. Shipping costs
immediately available, 6 available
17magnetventil flat ptfe gasket8001651
Magnetventil FLAT PTFE GASKET
12,48 €

excl. Shipping costs
immediately available, 5 available
18red silicone o ring r5 gasket8001809
RED SILICONE O-RING R5 GASKET
1,34 €

excl. Shipping costs
immediately available
18o ring 02025 viton8001810
O-RING 02025 VITON
0,87 €

excl. Shipping costs
immediately available
193 way solenoid valve lucifer 240v 50hz8000955
3-WAY SOLENOID VALVE LUCIFER 240V 50Hz
52,36 €

excl. Shipping costs
immediately available, 11 available
193 way solenoid valve parker 230v 50 60hz8000960
3-WAY SOLENOID VALVE PARKER 230V 50/60Hz
53,55 €

excl. Shipping costs
immediately available, 5 available

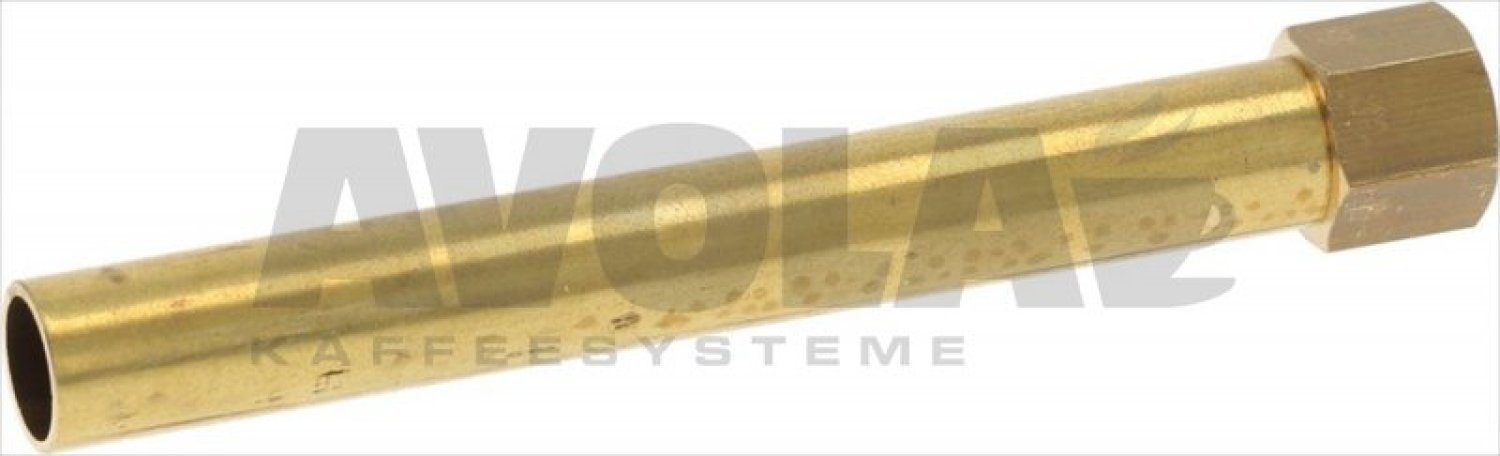

20drain pipe8006904
DRAIN PIPE
16,70 €

excl. Shipping costs
immediately available, 1 available
20astoria cma auslaufrohr verchromt o1 8 zoll x 79 mm8081105

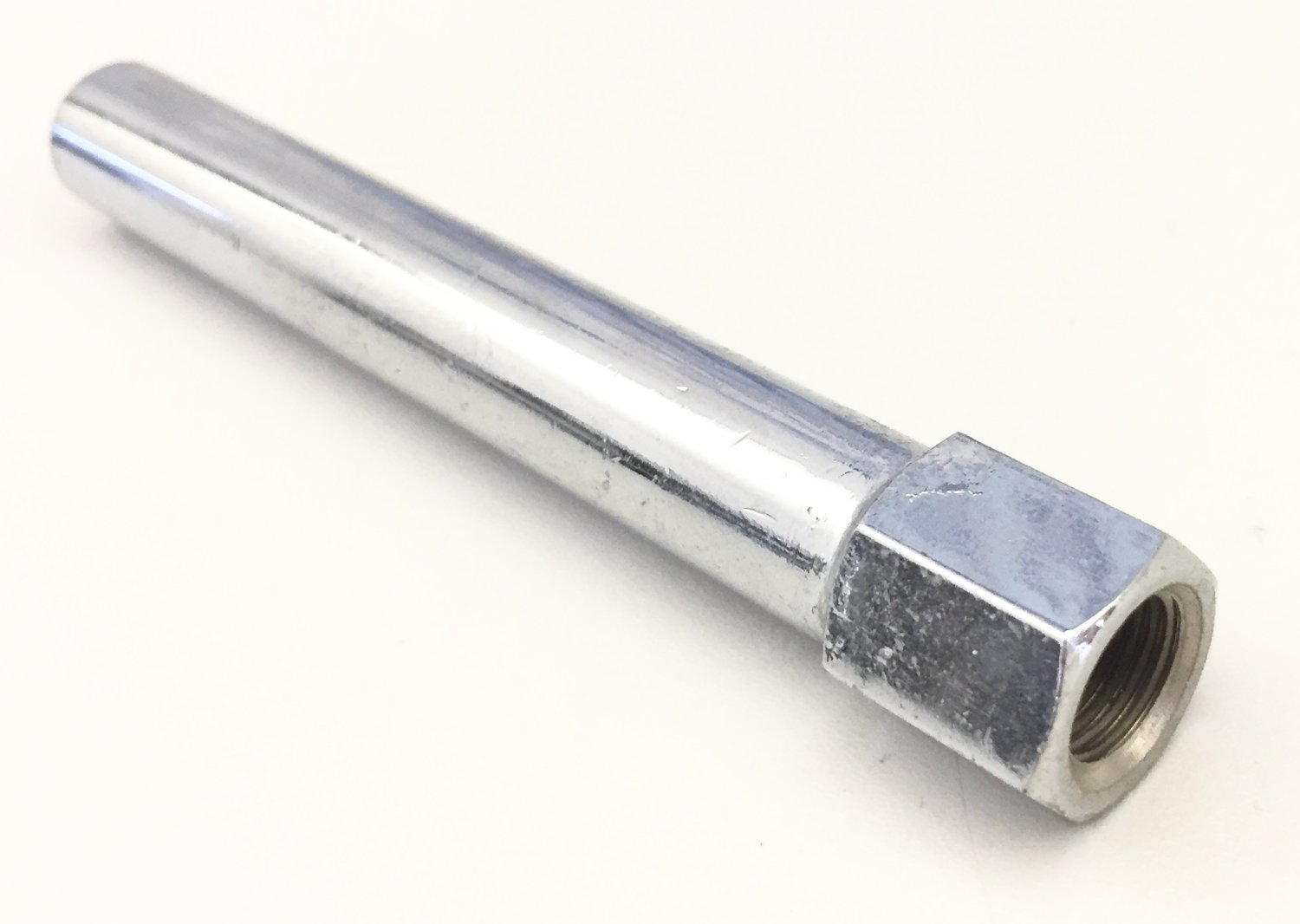

Astoria Cma Auslaufrohr verchromt Ø1/8 Zoll x 79 mm
17,85 €

excl. Shipping costs
immediately available, 2 available
21schraube zylinderkopf innensechskant vollgewinde edelstahl m4x10 a2 70 din 9128061180
Schraube Zylinderkopf Innensechskant Vollgewinde Edelstahl M4x10 A2-70 Din 912
0,67 €

excl. Shipping costs
immediately available
22stainless steel water filter8001124
STAINLESS STEEL WATER FILTER
2,69 €

excl. Shipping costs
immediately available
24water filter o 14x10x12 mm8001107
WATER FILTER ø 14x10x12 mm
2,95 €

excl. Shipping costs
immediately available
25rubber shim8002169
RUBBER SHIM
1,17 €

excl. Shipping costs
immediately available
28blind filter o58mm8001103
BLIND FILTER Ø58mm
2,56 €

excl. Shipping costs
immediately available
292 cup filter 14 grams8001101
2-CUP FILTER 14 GRAMS
7,02 €

excl. Shipping costs
immediately available
301 cup filter 7 g8001120
1 CUP FILTER 7 g
6,50 €

excl. Shipping costs
immediately available, 12 available
31s steel filter locking spring8003542
S/STEEL FILTER LOCKING SPRING
1,62 €

excl. Shipping costs
immediately available
31filter blocking spring o 1 00 mm8003622
FILTER BLOCKING SPRING ø 1,00 mm
1,05 €

excl. Shipping costs
immediately available
32filter holder assy cma astoria8001174
FILTER HOLDER ASSY CMA ASTORIA
55,83 €

excl. Shipping costs
immediately available, 5 available
32bottomless filter holder astoria8001194
BOTTOMLESS FILTER HOLDER ASTORIA
49,71 €

excl. Shipping costs
Delivery time
is determined
33burn preventing ring for handle8001951
BURN PREVENTING RING FOR HANDLE
0,81 €

excl. Shipping costs
immediately available, 8 available
34black filter holder handle m128003250
BLACK FILTER HOLDER HANDLE M12
14,85 €

excl. Shipping costs
immediately available, 1 available
35chrome plated cap for filter holder knob8003336
CHROME PLATED CAP FOR FILTER HOLDER KNOB
3,81 €

excl. Shipping costs
immediately available, 7 available
36chrome plated spout extension8000050
CHROME-PLATED SPOUT EXTENSION
7,39 €

excl. Shipping costs
immediately available, 13 available
37single spout o 3 88000110
SINGLE SPOUT ø 3/8
6,06 €

excl. Shipping costs
immediately available, 12 available
39double spout o 3 8 rime8000115
Double Spout ø 3/8″
5,95 €

excl. Shipping costs
immediately available, 6 available
402 cups filter 18 21gr o 70x28 mm8001104
2 Cups Filter 18/21gr ø 70x28 mm
4,46 €

excl. Shipping costs
immediately available, 5 available
41filter holder coffee machines8001167
FILTER HOLDER COFFEE MACHINES
18,80 €

excl. Shipping costs
immediately available, 1 available
42filter holder handle m128003349
FILTER HOLDER HANDLE M12
7,79 €

excl. Shipping costs
immediately available, 3 available
43triple spout o 3 88000129
TRIPLE SPOUT ø 3/8
10,01 €

excl. Shipping costs
immediately available, 1 available
44copper flat gasket o 18x14x1 5 mm8001814
COPPER FLAT GASKET ø 18x14x1,5 mm
1,19 €

excl. Shipping costs
immediately available
45fitting8005646

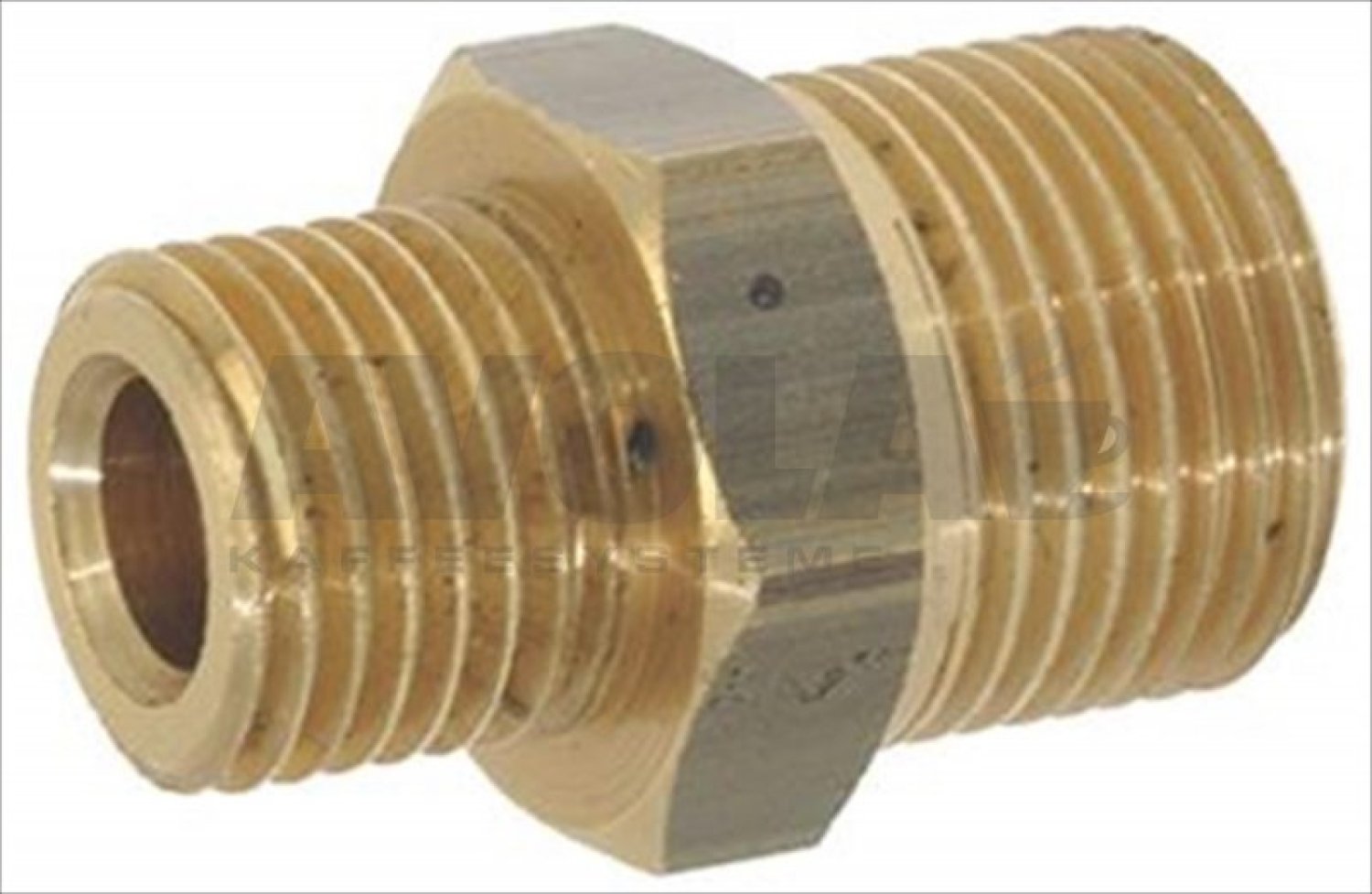

FITTING
8,19 €

excl. Shipping costs
Delivery time
is determined
46nozzle m5x1 hole8006959

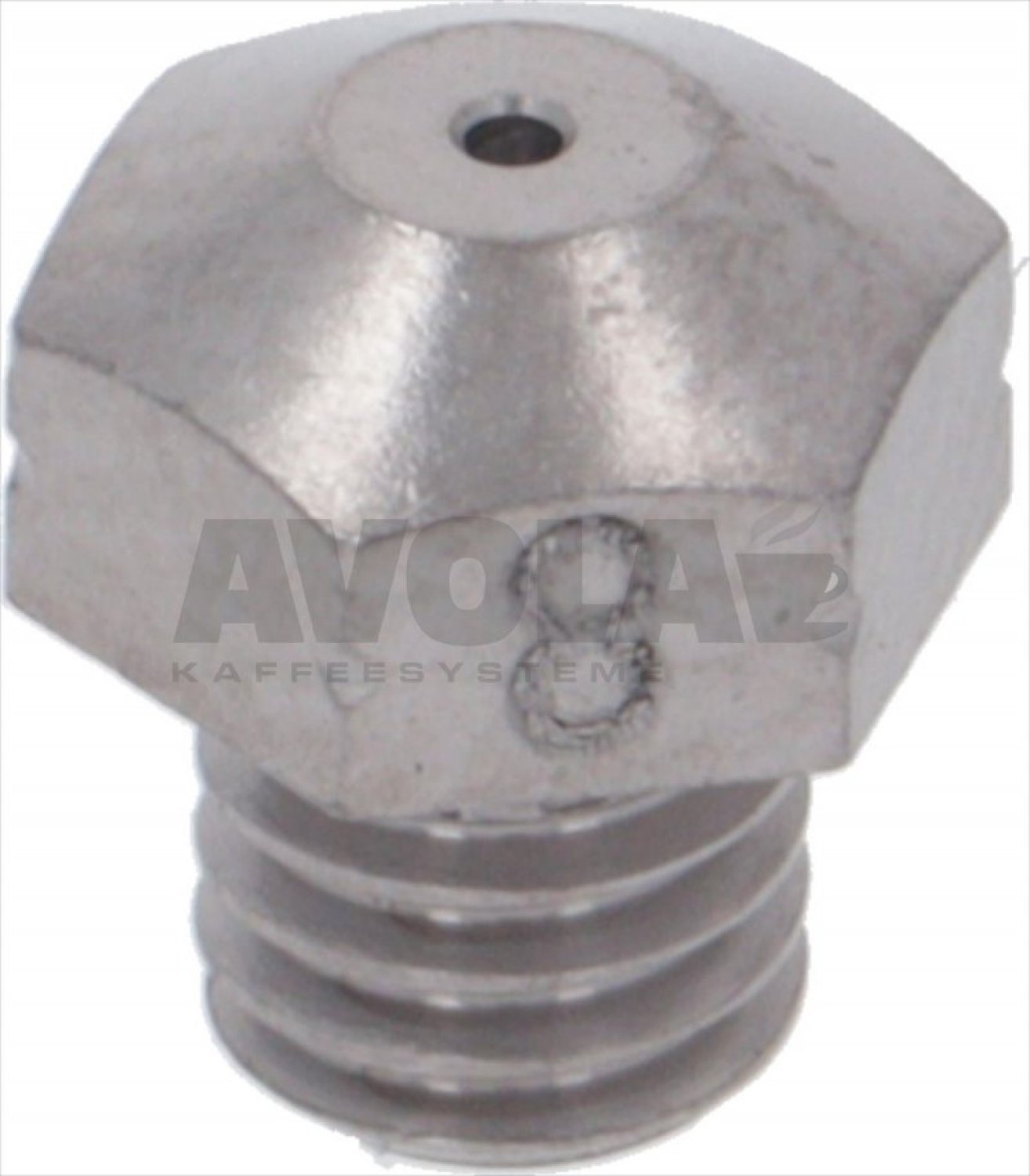

NOZZLE M5x1 HOLE
6,12 €

excl. Shipping costs
immediately available, 2 available
48exchanger brew group complete8002268
EXCHANGER BREW GROUP COMPLETE
398,86 €

excl. Shipping costs
Delivery time 4-6 weeks
49female large connector8012420
FEMALE LARGE CONNECTOR
2,94 €

excl. Shipping costs
immediately available, 7 available
50filter knob m128003171
FILTER KNOB M12
10,16 €

excl. Shipping costs
Delivery time
is determined

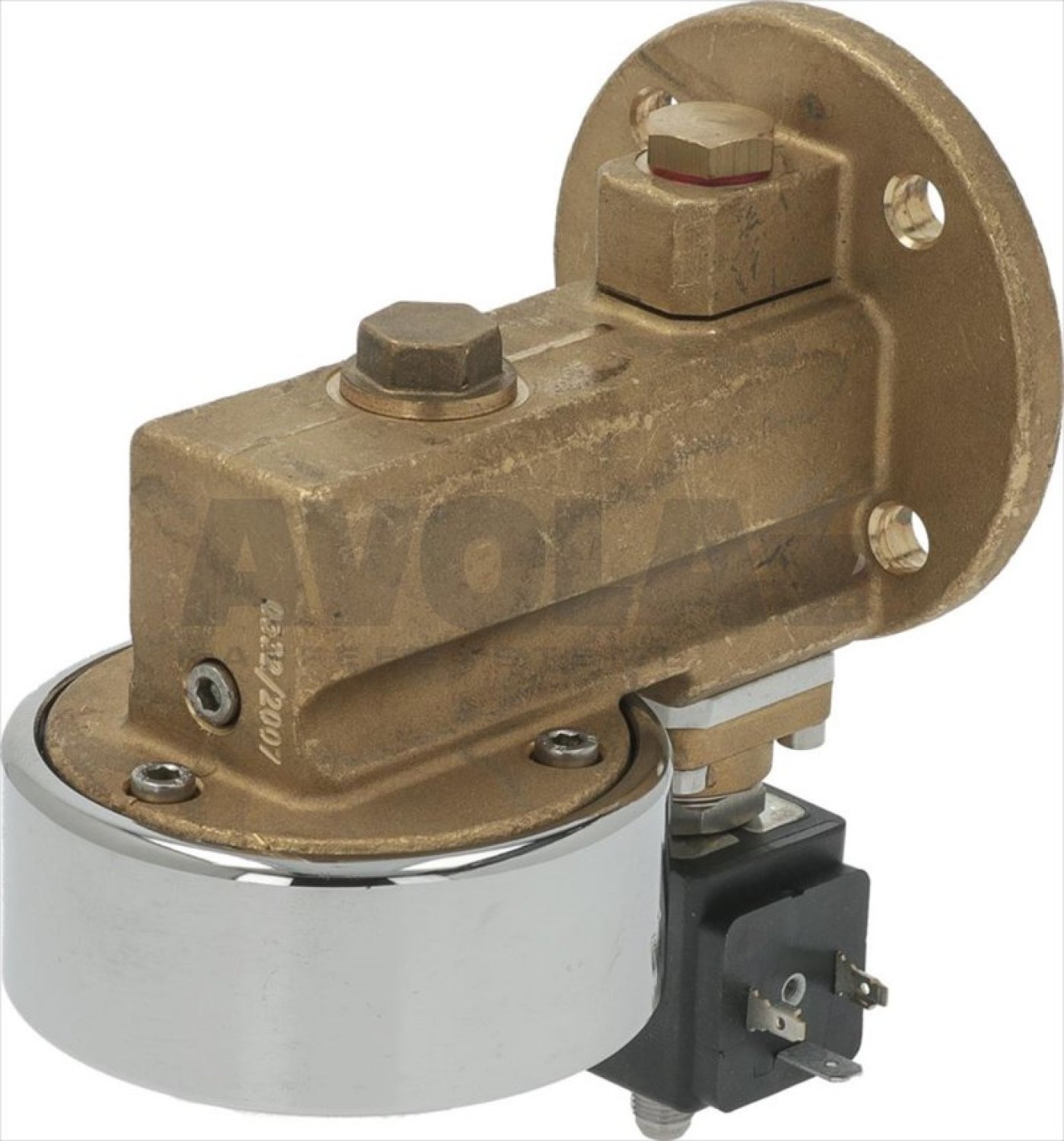

51exchanger brew group8002269
EXCHANGER BREW GROUP
375,96 €

excl. Shipping costs
Delivery time 4-6 weeks
52boiler cap8006407
BOILER CAP
1,83 €

excl. Shipping costs
immediately available, 1 available
53nozzle m5x1 hole8006959
NOZZLE M5x1 HOLE
6,12 €

excl. Shipping costs
immediately available, 2 available
54paper seal o 70x57x0 8 mm8002175
PAPER SEAL ø 70x57x0,8 mm
0,39 €

excl. Shipping costs
immediately available
553 way mechanical component lucifer8000959
3-WAY MECHANICAL COMPONENT LUCIFER
39,77 €

excl. Shipping costs
immediately available, 6 available
553 way mechanical component parker8000962
3-WAY MECHANICAL COMPONENT PARKER
42,72 €

excl. Shipping costs
immediately available, 13 available
56coil lucifer parker 220 240v 9w 50hz8000957
COIL LUCIFER/PARKER 220/240V 9W 50Hz
19,92 €

excl. Shipping costs
immediately available, 7 available
56coil parker zb09 9w 220 240v 50 60hz8012418
COIL PARKER ZB09 9W 220/240V 50/60Hz
20,74 €

excl. Shipping costs
immediately available, 14 available
57coffee group gasket o 88x40x2 mm teflon8002156
COFFEE GROUP GASKET ø 88x40x2 mm Teflon
8,21 €

excl. Shipping costs
immediately available, 3 available
57coffee group gasket o 88x40x2 mm8007687
COFFEE GROUP GASKET ø 88x40x2 mm
10,41 €

excl. Shipping costs
Delivery time
is determined
582 cup filter 12 grams8001077
2-CUP FILTER 12 GRAMS
5,41 €

excl. Shipping costs
immediately available, 10 available
591 cup filter 6 g8001076
1 CUP FILTER 6 g
5,41 €

excl. Shipping costs
immediately available, 6 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
