Astoria Cma Grinder

DOSIERMAHLWERK MAJOR

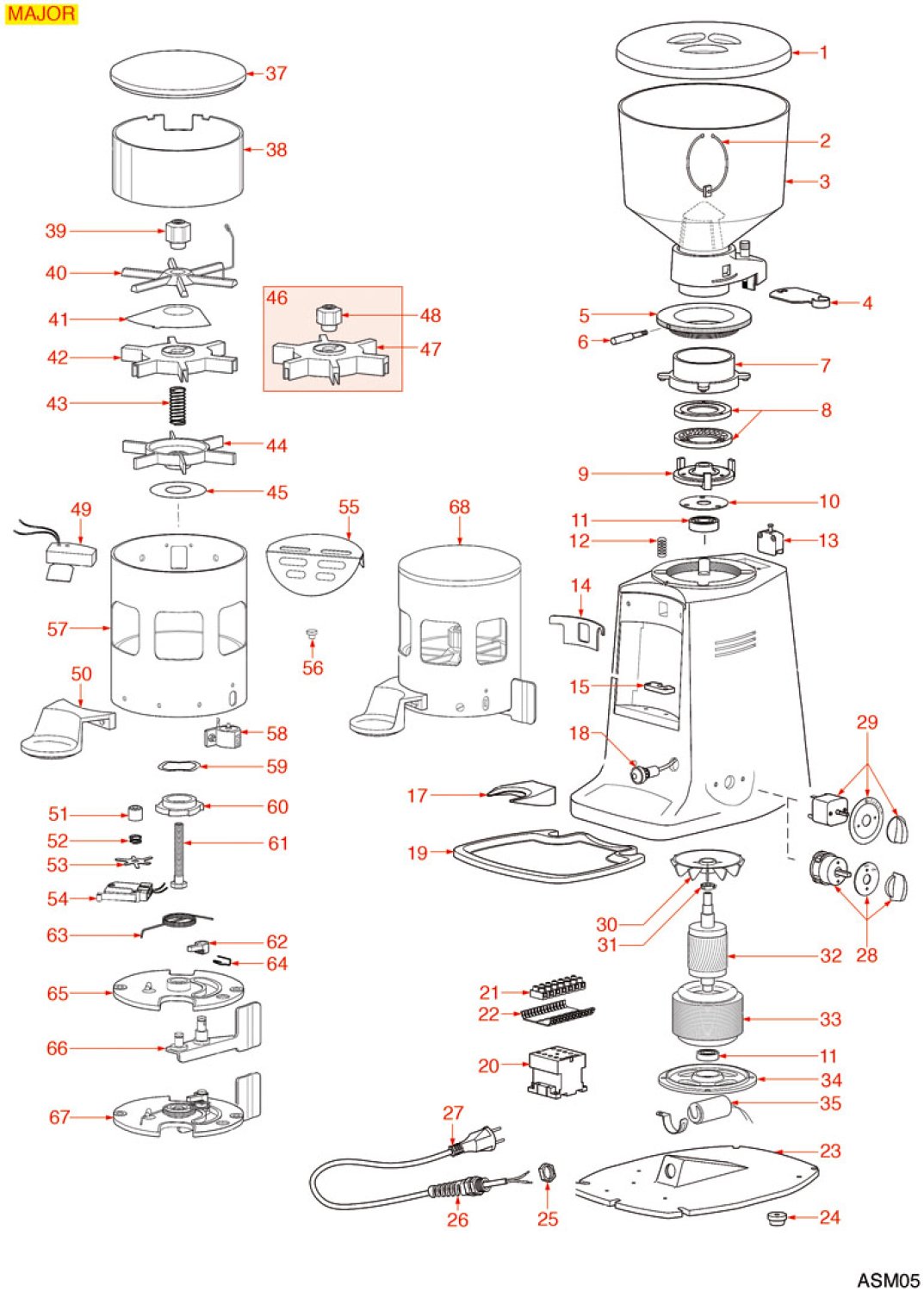

Drawing number 8057562

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
1coffee hopper lid8004143
COFFEE HOPPER LID
16,28 €

excl. Shipping costs
Delivery time
is determined
3complete coffee hopper8000536
COMPLETE COFFEE HOPPER
97,08 €

excl. Shipping costs
Delivery time
is determined
4closing sheet for coffee hopper8004157
CLOSING SHEET FOR COFFEE HOPPER
7,91 €

excl. Shipping costs
Delivery time
is determined
5grinding adjustment ring8004145
GRINDING ADJUSTMENT RING
105,86 €

excl. Shipping costs
Delivery time 4-6 weeks
6adjustment ring pin m58005206
ADJUSTMENT RING PIN M5
18,81 €

excl. Shipping costs
immediately available, 4 available
8grind burrs mazzer pair right three ph8004089
GRIND.BURRS MAZZER (PAIR) RIGHT THREE-PH
90,40 €

excl. Shipping costs
Delivery time
is determined
8grind burrs mazzer pair rh single ph8004090
GRIND.BURRS MAZZER (PAIR) RH SINGLE-PH.
47,60 €

excl. Shipping costs
immediately available, 2 available
9lower burrs holder8004076
LOWER BURRS HOLDER
72,78 €

excl. Shipping costs
Delivery time
is determined
10bearing cap major8000320
BEARING CAP MAJOR
Price on request
11bearing 6204 ddu nsk8000319
BEARING 6204 DDU NSK
14,20 €

excl. Shipping costs
Delivery time
is determined
12grinding control spring8003595
GRINDING CONTROL SPRING
3,19 €

excl. Shipping costs
immediately available, 7 available
13safety switch8005049
SAFETY SWITCH
38,78 €

excl. Shipping costs
Delivery time
is determined
14mazzer aer stop gasket8002070
Mazzer AER-STOP GASKET
2,75 €

excl. Shipping costs
immediately available, 8 available
17filter holder fork8004158
FILTER HOLDER FORK
27,17 €

excl. Shipping costs
Delivery time
is determined
18green indicator lamp 230 400v8002776
GREEN INDICATOR LAMP 230/400V
11,27 €

excl. Shipping costs
Delivery time
is determined
19grounds tray8004560
GROUNDS TRAY
59,64 €

excl. Shipping costs
Delivery time
is determined
24foot assembly m5x0 758004624
FOOT ASSEMBLY M5x0,75
4,64 €

excl. Shipping costs
immediately available, 7 available
28selector switch 0 1 positions 25a 690v8000297
SELECTOR SWITCH 0-1 POSITIONS 25A 690V
37,58 €

excl. Shipping costs
Delivery time
is determined
28selector switch 0 1 start positions 20a8000298
SELECTOR SWITCH 0-1-START POSITIONS 20A
59,52 €

excl. Shipping costs
Delivery time
is determined
28selector switch 0 1 positions 20a 690v8000299
SELECTOR SWITCH 0-1- POSITIONS 20A 690V
61,76 €

excl. Shipping costs
Delivery time
is determined
28selector switch 0 1 positions 20a8004639
SELECTOR SWITCH 0-1 POSITIONS 20A
52,98 €

excl. Shipping costs
Delivery time
is determined
29timer 50 seconds 16a 250v8006536
TIMER 50 SECONDS 16A 250V
52,00 €

excl. Shipping costs
immediately available, 2 available
29three polar timer 50 seconds8006537
THREE-POLAR TIMER 50 SECONDS
71,88 €

excl. Shipping costs
Delivery time
is determined
30motor fan8003103
MOTOR FAN
15,80 €

excl. Shipping costs
Delivery time 4-6 weeks
31fan clamp8001278
FAN CLAMP
5,37 €

excl. Shipping costs
Delivery time 4-6 weeks

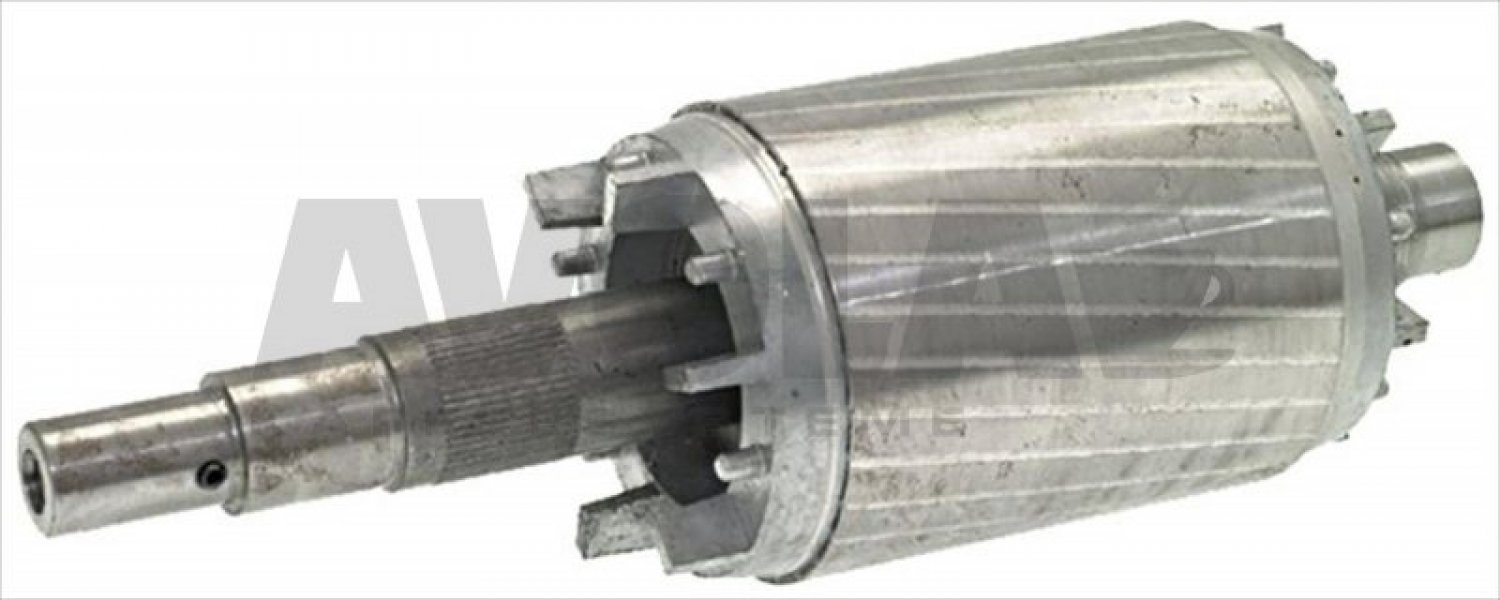

32rotor major8003101
ROTOR MAJOR
99,57 €

excl. Shipping costs
Delivery time 4-6 weeks
35capacitor8011683
CAPACITOR
10,75 €

excl. Shipping costs
immediately available, 9 available
37mazze doser lid o 125 mm8004161
MAZZE DOSER LID ø 125 mm
17,46 €

excl. Shipping costs
Delivery time 4-6 weeks
38doser cylinder8004178
DOSER CYLINDER
22,51 €

excl. Shipping costs
Delivery time
is determined
39small control handle8003411
SMALL CONTROL HANDLE
11,67 €

excl. Shipping costs
Delivery time
is determined
40coffee stirring star with rod8005411
COFFEE STIRRING STAR WITH ROD
18,29 €

excl. Shipping costs
Delivery time 4-6 weeks
41closing sector8004163
CLOSING SECTOR
11,17 €

excl. Shipping costs
Delivery time
is determined
42star female8005412
STAR (FEMALE)
21,78 €

excl. Shipping costs
Delivery time
is determined
43doser pressure spring8004164
DOSER PRESSURE SPRING
Price on request
44mazzer star male new version o 112mm8005413
Mazzer STAR (MALE) new Version Ø 112mm
19,67 €

excl. Shipping costs
Delivery time
is determined
45doser washer8004173
DOSER WASHER
Price on request
46star with adjustment knob8005416
STAR WITH ADJUSTMENT KNOB
62,83 €

excl. Shipping costs
Delivery time 4-6 weeks
49mazzer star male new version o 112mm8005413
Mazzer STAR (MALE) new Version Ø 112mm
19,67 €

excl. Shipping costs
Delivery time
is determined
50coffee tamper8006221
COFFEE TAMPER
28,92 €

excl. Shipping costs
Delivery time 4-6 weeks
50coffee tamper8006222
COFFEE TAMPER
29,04 €

excl. Shipping costs
Delivery time 4-6 weeks
50coffee tamper o 57 5 mm8006223
COFFEE TAMPER ø 57,5 mm
29,23 €

excl. Shipping costs
Delivery time
is determined
51lower microswitch star spacer8005415
LOWER MICROSWITCH STAR SPACER
6,43 €

excl. Shipping costs
Delivery time
is determined
52lower microrelease spring8003861
LOWER MICRORELEASE SPRING
1,56 €

excl. Shipping costs
Delivery time
is determined
53lower microswitch star8005414
LOWER MICROSWITCH STAR
Price on request
54microswitch 12a 250 v8003110
MICROSWITCH 12A 250 V
62,11 €

excl. Shipping costs
Delivery time 4-6 weeks
57doser cylinder o 122x182 mm8004165
DOSER CYLINDER ø 122x182 mm
162,01 €

excl. Shipping costs
Delivery time 4-6 weeks
58counter for coffee grinder8004169
COUNTER FOR COFFEE GRINDER
51,77 €

excl. Shipping costs
Delivery time
is determined
59compensation ring8004166
COMPENSATION RING
Price on request
60pawl for coffee grinder doser8004167
PAWL FOR COFFEE GRINDER/DOSER
25,70 €

excl. Shipping costs
Delivery time
is determined
61st steel screw for dosing adjust m8x708004168
ST.STEEL SCREW FOR DOSING ADJUST. M8x70
12,36 €

excl. Shipping costs
Delivery time
is determined
62doser retainer8004170
DOSER RETAINER
10,98 €

excl. Shipping costs
immediately available, 2 available
63doser lever return spring8003862
DOSER LEVER RETURN SPRING
5,94 €

excl. Shipping costs
immediately available, 10 available
64retainer spring8003863
RETAINER SPRING
2,98 €

excl. Shipping costs
immediately available, 3 available
66doser lever8004171
DOSER LEVER
80,50 €

excl. Shipping costs
Delivery time
is determined
67doser lever assembly8004172
DOSER LEVER ASSEMBLY
73,84 €

excl. Shipping costs
Delivery time
is determined

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
