Astoria Cma Grinder

DOSIERMAHLWERK C

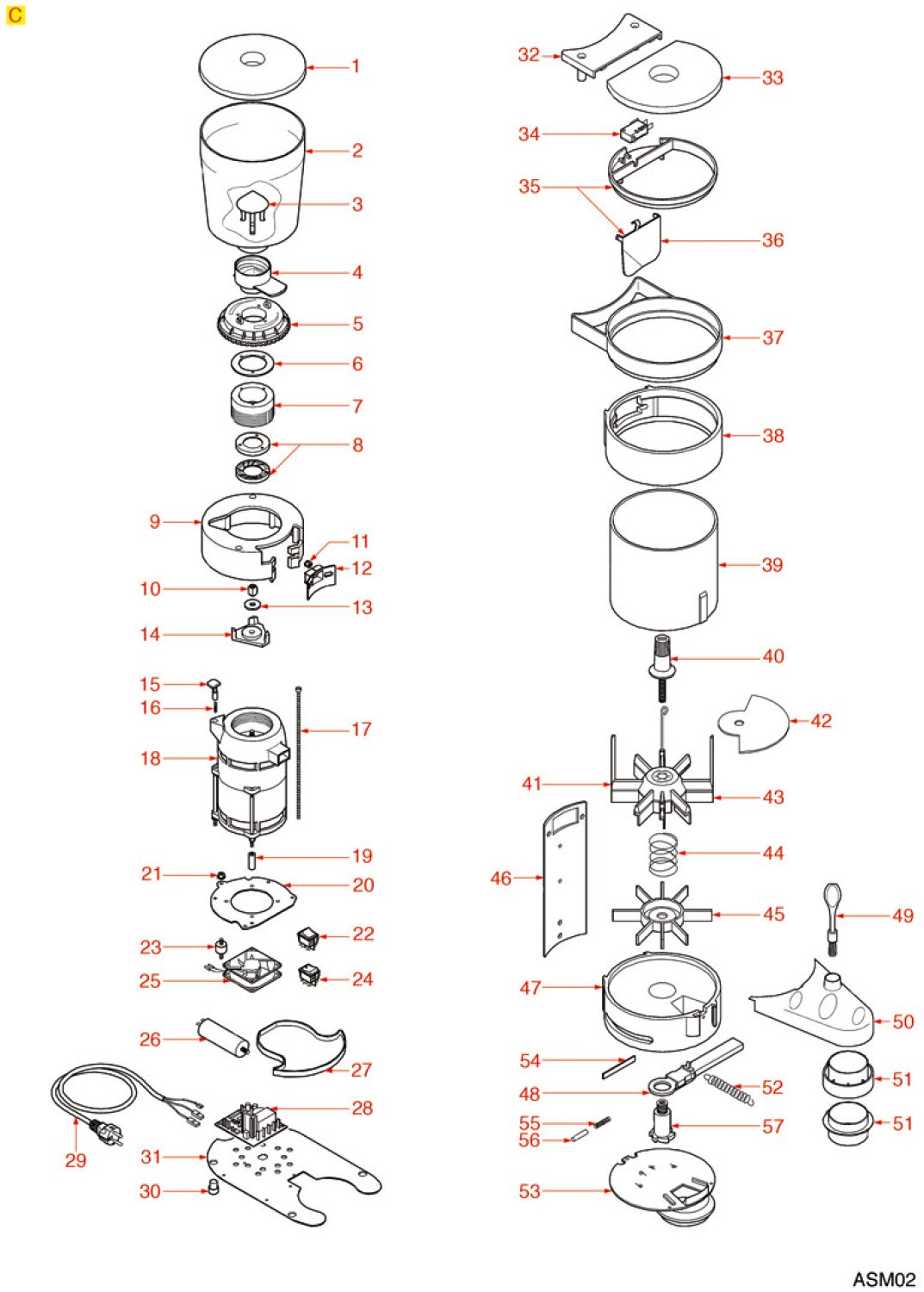

Drawing number 8057559

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
1coffee hopper lid o 200 mm8004282
COFFEE HOPPER LID ø 200 mm
15,78 €

excl. Shipping costs
Delivery time
is determined
2complete coffee hopper 2 kg8000543
COMPLETE COFFEE HOPPER 2 kg
81,93 €

excl. Shipping costs
Delivery time 4-6 weeks
3coffee hopper inner protection8004290
COFFEE HOPPER INNER PROTECTION
6,71 €

excl. Shipping costs
Delivery time
is determined
4coffee hopper filler8004287
COFFEE HOPPER FILLER
78,65 €

excl. Shipping costs
Delivery time 4-6 weeks
5adjustment ring8004295
ADJUSTMENT RING
14,48 €

excl. Shipping costs
Delivery time 4-6 weeks
6adjustment ring rubber gasket8004294
ADJUSTMENT RING RUBBER GASKET
5,06 €

excl. Shipping costs
Delivery time 4-6 weeks
8grinding burrs cunill pair left8003999
GRINDING BURRS CUNILL (PAIR) LEFT
37,58 €

excl. Shipping costs
immediately available, 1 available
8grinding burrs cunill pair left8004070
GRINDING BURRS CUNILL (PAIR) LEFT
27,54 €

excl. Shipping costs
immediately available, 1 available
12gasket for coffee outlet opening8004293
GASKET FOR COFFEE OUTLET OPENING
8,62 €

excl. Shipping costs
Delivery time
is determined
14grinding burrs bottom holder8004281
GRINDING BURRS BOTTOM HOLDER
Price on request
15spring adjustment pin8004289
SPRING ADJUSTMENT PIN
4,93 €

excl. Shipping costs
Delivery time 4-6 weeks
16control spring8003886
CONTROL SPRING
2,24 €

excl. Shipping costs
Delivery time
is determined
22double push button 16a 250v8005053
DOUBLE PUSH-BUTTON 16A 250V
8,52 €

excl. Shipping costs
Delivery time 4-6 weeks
23shock absorber grinder doser cunill8004292
SHOCK ABSORBER GRINDER/DOSER CUNILL
7,95 €

excl. Shipping costs
Delivery time 4-6 weeks
24green bipolar switch 16a 250v8005054
GREEN BIPOLAR SWITCH 16A 250V
9,04 €

excl. Shipping costs
Delivery time 4-6 weeks
25axial ventilator 80x80x38 mm8003113
AXIAL VENTILATOR 80x80x38 mm
Price on request
27coffee collecting tray8004283
COFFEE COLLECTING TRAY
11,82 €

excl. Shipping costs
Delivery time
is determined
30rubber foot8004629
RUBBER FOOT
3,38 €

excl. Shipping costs
immediately available, 2 available
32microswitch lid8004277
MICROSWITCH LID
6,45 €

excl. Shipping costs
Delivery time
is determined
33doser lid8004274
DOSER LID
6,45 €

excl. Shipping costs
Delivery time
is determined
34microswitch 16a 250v8016308
MICROSWITCH 16A 250V
9,54 €

excl. Shipping costs
immediately available, 3 available
35plastic ring with flap8004279
PLASTIC RING WITH FLAP
Price on request
36large aluminium flap8004280
LARGE ALUMINIUM FLAP
12,86 €

excl. Shipping costs
Delivery time 4-6 weeks
37zusatdosiergeraetszylinder8004288
ZUSATDOSIERGERÄTSZYLINDER
6,37 €

excl. Shipping costs
Delivery time 4-6 weeks
38cunill doser cylinder8004262
CUNILL DOSER CYLINDER
22,48 €

excl. Shipping costs
Delivery time 4-6 weeks
39doser cylinder 600 gr8004260
DOSER CYLINDER 600 gr
6,51 €

excl. Shipping costs
Delivery time 4-6 weeks
40adjustment screw8004267
ADJUSTMENT SCREW
7,54 €

excl. Shipping costs
Delivery time 4-6 weeks
43star assembly8005351
STAR ASSEMBLY
19,55 €

excl. Shipping costs
Delivery time
is determined
44star spring8004270
STAR SPRING
3,50 €

excl. Shipping costs
Delivery time
is determined
48doser lever8004272
DOSER LEVER
9,67 €

excl. Shipping costs
Delivery time
is determined
50coffee tamper assembly8006224
COFFEE TAMPER ASSEMBLY
15,49 €

excl. Shipping costs
Delivery time
is determined
51kaffee tamper8006226
KAFFEE TAMPER
Price on request
52doser lever return spring8004268
DOSER LEVER RETURN SPRING
3,00 €

excl. Shipping costs
immediately available, 1 available
53doser bottom lid8004264
DOSER BOTTOM LID
17,26 €

excl. Shipping costs
Delivery time 4-6 weeks
54doser pin8004269
DOSER PIN
3,59 €

excl. Shipping costs
immediately available, 3 available
55lever pin spring8003885
LEVER PIN SPRING
Price on request
56cunill lever pin8004271
CUNILL LEVER PIN
2,68 €

excl. Shipping costs
immediately available, 3 available
57pawl rh8004265
PAWL RH
20,23 €

excl. Shipping costs
Delivery time 4-6 weeks
57pawl lh8004266
PAWL LH
20,23 €

excl. Shipping costs
Delivery time 4-6 weeks

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
